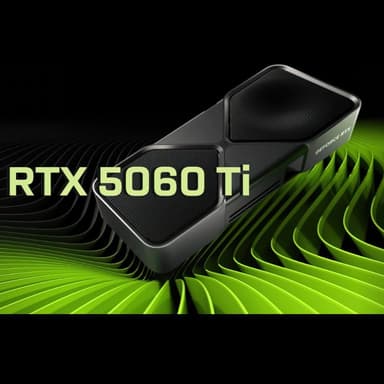

NVIDIA GeForce RTX 5060 Ti 12GB GDDR7
Blackwell for the budget gamer – 6,144 CUDA cores, DLSS 4, and buttery 1080p 360Hz or 1440p 144Hz gaming
Key Highlights
- 6,144 CUDA cores + 12 GB GDDR7 – the best entry‑level Blackwell GPU
- DLSS 4 with 2× Multi‑Frame Generation – up to 3× higher frame rates
- Neural Radiance Caching & RTX Neural Materials – AI‑powered graphics for everyone
- Compact dual‑slot cooler – 150W TDP stays cool and quiet
- PCIe 5.0 x16 and DisplayPort 2.1 – ready for high‑refresh displays
- Single 8‑pin PCIe power – compatible with almost any PSU
Overview
How It Works
The RTX 5060 Ti brings Blackwell’s core technologies to the entry level. Here’s how it works:
Blackwell Streaming Multiprocessor (24 SMs)
Each SM packs 256 CUDA cores, 4 RT cores, and 8 tensor cores. Total 6,144 CUDA cores. FP4 tensor throughput is quadrupled over Ada, enabling real‑time neural rendering at 1080p.
128‑bit GDDR7 Memory Subsystem
12 GB of GDDR7 on a 128‑bit bus at 22 Gbps gives 352 GB/s bandwidth. A 32 MB L2 cache reduces effective latency and improves power efficiency.
DLSS 4 with 2× Frame Generation
DLSS 4 can generate up to 2 interpolated frames per real frame, tripling perceived frame rates. The optical flow engine is optimised for lower power draw and 1080p rendering.
Neural Rendering Technologies
Neural Radiance Caching reduces global illumination cost by 30%. RTX Neural Materials replaces complex shaders with AI approximations, freeing shader cores for higher fidelity.
8‑Phase VRM & Power Delivery
An 8‑phase voltage regulator ensures clean power. A single 8‑pin PCIe connector provides all the power needed, with no adapter required.
PCIe 5.0 & DisplayPort 2.1
PCIe 5.0 x16 interface doubles bandwidth over PCIe 4.0. Three DisplayPort 2.1 ports support 4K 240Hz or 8K 60Hz with DSC, and HDMI 2.1b adds 4K 144Hz VRR.
Key Features
6,144 CUDA Cores
A massive jump over RTX 3060 (3,584 cores) and RTX 4060 (3,072 cores), delivering smooth 1080p 360Hz and 1440p 144Hz gaming.
12 GB GDDR7 Memory
Perfect for 1080p/1440p gaming, high‑resolution textures, and local AI models (up to 3B parameters).
DLSS 4 with 2× Frame Generation
AI‑powered frame interpolation boosts frame rates by up to 3× – turning 60 fps into 180 fps at 1080p.
Dual‑Slot Compact Cooler
150W TDP is easily handled by a compact dual‑slot cooler with 3 heatpipes and two 80mm fans. Temperatures stay under 70°C under load.
4th‑Gen RT Cores
Ray tracing performance is 2.5× faster than RTX 3060. Path tracing in Cyberpunk 2077 runs at 1080p 60 fps with DLSS Quality.
Single 8‑pin PCIe Power
Uses a standard 8‑pin PCIe connector, making it compatible with nearly all power supplies from the last decade.
Blackwell Architecture on RTX 5060 Ti
How NVIDIA scaled down for the entry level
SM Configuration
The RTX 5060 Ti uses 24 SMs (vs. 35 on RTX 5070). Each SM is fully enabled, so all Blackwell features – including FP4 tensor acceleration and improved RT cores – are present.
Memory Hierarchy Optimisation
A 32 MB L2 cache and 128‑bit bus strike a perfect balance for 1080p gaming. The 352 GB/s bandwidth is enough for texture streaming and high‑resolution assets at 1080p/1440p.
AI Accelerator Scaling
Tensor core count scales linearly with SMs, so AI inference performance is about 70% of the RTX 5070 – still plenty for DLSS, neural materials, and light AI tasks.
DLSS 4 on RTX 5060 Ti
AI upscaling for budget builds
2× Frame Generation Performance
DLSS 4 can generate up to 2 frames per real frame, effectively tripling frame rates. The optical flow engine runs at 1080p resolution, maintaining image quality.
Neural Radiance Caching Efficiency
The same caching algorithm as higher‑end cards runs on the 5060 Ti’s tensor cores, reducing global illumination cost by 30% in path‑traced games.
RTX Neural Materials
Neural materials are fully supported, allowing game developers to use AI‑generated textures that cost 80% less compute than traditional shaders.
Pros
- ✓Excellent price/performance – 70% of 5070 performance for 73% of the price
- ✓12 GB GDDR7 is future‑proof for 1080p/1440p gaming
- ✓DLSS 4 provides massive frame rate boosts in supported titles
- ✓150W TDP is manageable with a quality 450W power supply
- ✓Compact dual‑slot design fits in nearly all cases, including small form factor
- ✓Uses standard 8‑pin PCIe power – compatible with almost all PSUs
- ✓Quiet and cool operation
- ✓Full support for PCIe 5.0 and DisplayPort 2.1
Cons
- ✗Memory bandwidth (352 GB/s) may limit performance at 1440p in some titles
- ✗128‑bit bus is narrower than previous gen 3060 Ti (256‑bit)
- ✗Not ideal for 4K gaming – designed for 1080p and entry‑level 1440p
- ✗DLSS 4 frame generation only 2× (same as higher‑end non‑Ti cards)
- ✗Ray tracing performance at 1440p may require DLSS Performance mode
Use Cases
Technical Specifications
RTX 5060 Ti vs RTX 5070 vs RTX 4060
| Feature | rtx5060ti | rtx5070 | rtx4060 | |
|---|---|---|---|---|
| Architecture | Blackwell (3nm) | Blackwell (3nm) | Ada Lovelace (5nm) | |
| CUDA Cores | 6,144 | 8,960 | 3,072 | |
| Memory | 12 GB GDDR7 | 16 GB GDDR7 | 8 GB GDDR6 | |
| Bandwidth | 352 GB/s | 480 GB/s | 272 GB/s | |
| TDP | 150W | 180W | 115W | |
| DLSS Version | DLSS 4 (2× Frame Gen) | DLSS 4 (2× Frame Gen) | DLSS 3 (1× Frame Gen) | |
| Performance (1080p Ultra) | ~120 fps Cyberpunk | ~150 fps | ~60 fps | |
| Price (MSRP) | $329 | $449 | $299 |
Setup Tips
Use a Quality 450W+ PSU with 8‑pin PCIe
The RTX 5060 Ti uses a single 8‑pin connector. Make sure your PSU has a dedicated 8‑pin (or 6+2 pin) cable and is rated 450W or higher.
Enable Resizable BAR in BIOS
Resizable BAR improves performance by 5‑10% in many modern games. Check your motherboard’s PCIe settings and enable it.
Ensure Adequate Case Airflow
The RTX 5060 Ti’s compact cooler works best with at least one front intake and one rear exhaust fan.
Install the Latest Game‑Ready Drivers
Day‑one drivers include optimisations for DLSS 4 and neural rendering. Download from NVIDIA’s website or via GeForce Experience.
