What is the difference between i9-14901E and i9-14900K?

The 14901E is an embedded processor designed for industrial use, with eight P‑cores and no E‑cores. It has a 65W TDP, is locked (no overclocking), and supports ECC memory and vPro features. The 14900K is a consumer chip with a hybrid architecture (8P+16E), a 125W base TDP, and an unlocked multiplier for overclocking. The 14900K offers much higher multi‑core performance but lacks ECC and vPro support.

Can I buy the i9-14901E for my desktop PC?

No. The 14901E is not sold through retail channels. It is only available to OEMs and system integrators for use in embedded and commercial systems. You will not find it on consumer motherboard compatibility lists from retailers like Newegg or Amazon.

Why does the 14901E have no E‑cores?

Embedded systems require deterministic, predictable performance that can be planned for real‑time operations. The hybrid architecture’s dynamic thread scheduling can introduce unpredictable latencies. By using only P‑cores, Intel provides a simpler, more reliable configuration for industrial control systems, medical devices, and network appliances.

Is the 14901E good for gaming?

Technically, it can run games well due to its high 5.6 GHz clock speed. However, it is not designed for gaming. It lacks the 16 E‑cores that offload background tasks in hybrid consumer chips, which means multitasking while gaming could be less efficient. Additionally, its high price and embedded focus make it a poor value for a gaming PC.

What motherboards support the i9-14901E?

The 14901E is compatible with LGA1700 motherboards that target the embedded and commercial market, such as those with Intel Q670E, H610E, or W680 chipsets. Common examples include industrial boards from Advantech, DFI, and Portwell. Consumer Z790, B760, and H610 boards may not have official support.

How does the 14901E compare to the 14901TE?

The 14901TE is the low‑power variant of the 14901E, with a TDP of 45W (reduced from 65W). It has a lower boost clock speed (5.5 GHz vs 5.6 GHz) and a lower base frequency (2.5 GHz vs 2.8 GHz). The TE version is designed for fan‑less and thermally constrained embedded systems.

What is Intel vPro® and why does it matter?

Intel vPro® is a set of enterprise technologies built into the processor, including Intel Active Management Technology (AMT) for remote out‑of‑band management, hardware‑based security features (e.g., Intel Trusted Execution Technology), and stability for corporate deployments. For large‑scale embedded systems, vPro is essential for managing fleets of devices, applying security patches remotely, and recovering systems even when the OS is unresponsive.

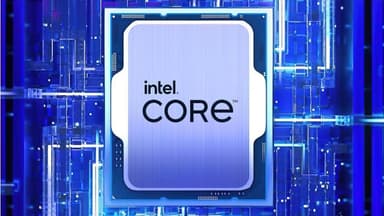

Intel Core i9-14901E 8‑Core LGA1700 Embedded Processor (P‑core Only)

Embedded‑grade flagship with 8 high‑performance cores, 5.6 GHz boost, and 65W TDP – designed for industrial, commercial, and high‑reliability systems.

Key Highlights

8 high‑performance cores / 16 threads (no E‑cores)
5.6 GHz max turbo – industry‑leading single‑thread performance
65W TDP – efficient and deployable in fan‑less industrial chassis
Supports ECC memory – critical for industrial reliability
Full Intel vPro® Enterprise suite – remote management and security
PCIe 5.0 and 4.0 support – 20 lanes for accelerators and storage
Embedded lifecycle – long‑term availability for OEMs

Overview

The Intel Core i9-14901E is an embedded‑focused variant within the 14th Gen Raptor Lake Refresh family, designed exclusively for the commercial and industrial IoT market. Departing from the hybrid architecture used in consumer chips, this processor features eight high‑performance Raptor Cove Performance‑cores (P‑cores) and zero Efficient‑cores (E‑cores). This makes it the first 14th Gen desktop i9 processor to omit the smaller E‑cores entirely, forgoing the high‑thread‑count but power‑hungry hybrid design in favor of a deterministic, all‑P‑core configuration.[reference:0] The 14901E utilizes the Intel 7 manufacturing process and provides 8 cores with 16 threads via Hyper‑Threading. It can boost up to 5.6 GHz on a single core and offers a large 36 MB of shared L3 cache. Engineered for stability and longevity, it operates with a Processor Base Power of 65W and a Maximum Turbo Power of 219W, aligning it with the efficiency profile of a standard desktop chip while delivering high performance for tasks that cannot be easily parallelized. The processor supports both DDR5 and DDR4 memory, includes the full suite of Intel vPro® enterprise security and manageability features, and provides up to 20 PCIe 5.0/4.0 lanes. It is soldered onto the LGA1700 package, making it compatible with commercial LGA1700 motherboards.[reference:1] The primary goal of the 14901E is to provide high single‑thread performance and predictable latency for real‑time embedded applications, industrial automation, and rugged commercial systems where the high core counts of the hybrid design are not beneficial or could complicate power and thermal management.

How It Works

The i9-14901E is designed for embedded systems that need high, deterministic performance. Here is how it works:

P‑Core Only, No E‑Cores

Eight performance cores (Raptor Cove) handle all workloads. This avoids the complexity of the hybrid Thread Director, ensuring predictable, consistent performance for latency‑sensitive applications.

All P‑Cores, All the Time

Unlike consumer hybrid chips, all eight cores are identical, boosting up to 5.6 GHz. This simplifies multi‑threaded workload scheduling and ensures high performance for threads that need to run on fast cores.

Embedded & Commercial Durability

Designed for 24/7 operation in industrial environments. Supports Intel vPro, ECC memory, and extended temperature ranges, ensuring stability and manageability for critical systems.

Intelligent Turbo Boost

When power and thermal headroom are available, the processor’s Turbo Boost Max 3.0 and Thermal Velocity Boost technologies dynamically increase clock speeds to 5.6 GHz.

Scalable Memory & I/O

Up to 192 GB of DDR5/DDR4 memory with ECC support, plus 20 lanes of PCIe (16 lanes of Gen5 and 4 lanes of Gen4) to support high‑speed industrial accelerators and storage.

Key Features

8 Performance Cores (No E‑Cores)

All eight cores are high‑performance Raptor Cove P‑cores. This deterministic design avoids the complexity of hybrid thread scheduling and ensures consistent performance for latency‑sensitive industrial applications.

5.6 GHz Max Turbo

Intel’s Thermal Velocity Boost pushes a single P‑core to 5.6 GHz, delivering industry‑leading single‑thread performance for real‑time control applications and embedded compute.

65W TDP (Configurable)

With a base power of 65W and a maximum turbo power (MTP) of 219W, the 14901E delivers high performance within a manageable power envelope, suitable for passively or actively cooled industrial chassis.

36 MB L3 + 16 MB L2 Cache

A large 36 MB L3 cache reduces main memory accesses. The 16 MB L2 cache is dedicated to the eight P‑cores (2 MB per core), further lowering latency for time‑sensitive data access.

Dual Memory Support: DDR5 & DDR4

The integrated memory controller supports both high‑bandwidth DDR5-5600 and cost‑effective DDR4-3200. ECC memory is fully supported, which is critical for error‑correcting requirements in industrial applications.

PCIe 5.0 & 4.0

20 total PCIe lanes (16x Gen5 + 4x Gen4) allow for a next‑gen GPU, multiple high‑speed NVMe drives, or FPGA accelerators without bandwidth bottlenecks.

Intel vPro® Enterprise

Includes hardware‑based security features, remote management (AMT), and stability for large‑scale enterprise and industrial deployments.

Embedded Market Focus: Why the 14901E has No E‑cores

The shift from consumer hybrid architecture to dedicated embedded P‑core designs

Deterministic Performance

Embedded systems value consistent, repeatable performance. For real‑time control in factory automation or edge AI, Thread Director’s dynamic scheduling can introduce unpredictable latencies. A pure P‑core configuration avoids this issue.

Thermal & Power Considerations

A 65W TDP with all P‑cores is easier to cool and manage in ruggedized, fan‑less industrial enclosures than a 253W desktop chip. By omitting the E‑cores, Intel reduces the maximum peak power consumption under multi‑threaded workloads.

Target Use Cases

The 14901E is used in retail digital signage, industrial PCs (IPCs), medical imaging devices, network appliances, and embedded systems that require high single‑thread performance and long‑term availability.

Comparison to 14900K

The 14901E’s 8‑core/16‑thread configuration is simpler and more predictable than the 14900K’s 24‑core/32‑thread hybrid design. This comes at a cost: lower multi‑core throughput, but with deterministic performance and power consumption.

Pros

✓Predictable, deterministic performance – no complex thread scheduling
✓Excellent single‑thread performance – up to 5.6 GHz on all cores
✓Low 65W TDP – compatible with industrial and fan‑less chassis
✓Supports ECC memory – critical for industrial reliability
✓Full Intel vPro suite – remote management, security, and enterprise stability
✓Long embedded product lifecycle – extended availability for OEMs
✓Compatible with LGA1700 embedded boards (e.g., Q670E, H610E)
✓Includes Intel UHD Graphics 770 with Quick Sync for video acceleration

Cons

✗Low multi‑thread performance (only 8 cores) compared to the hybrid 14900K
✗No E‑cores – cannot handle background tasks as efficiently as hybrid chips
✗Clock speeds lower than 14900K (5.6 GHz vs 6.0 GHz boost)
✗Not available in retail – only sold to OEMs for embedded and commercial systems
✗Locked multiplier – no overclocking support
✗Limited to 8 cores for multi‑threaded applications that would benefit from more threads
✗Higher price than the consumer 14900 ($557 vs $549) despite fewer cores and lower clocks
✗Not compatible with consumer mainboards without specific BIOS and vPro support

Use Cases

Industrial automation and real‑time control systemsDigital signage and point‑of‑sale (POS) systemsMedical imaging devices (e.g., ultrasound, MRI control stations)Edge AI inference servers running low‑latency workloadsIn‑vehicle computing (e.g., infotainment, fleet management)Telecommunication and network security appliances (e.g., firewalls, routers)Commercial banking kiosks and ATMsGaming and casino machines

Technical Specifications

Architecture

Raptor Lake S Refresh (Intel 7)

Cores / Threads

8 / 16 (8 P-cores, 0 E-cores)

Max P‑core Turbo

5.6 GHz (Thermal Velocity Boost, single core)

All P‑core Turbo

5.1–5.2 GHz (depending on load)

Base Frequency

2.8 GHz

Cache

36 MB Intel Smart Cache (L3) + 16 MB L2

Processor Base Power (PL1)

65 W

Maximum Turbo Power (PL2)

219 W

Memory Support

DDR5‑5600 / DDR4‑3200, dual channel, up to 192 GB

Memory Bandwidth

89.6 GB/s

ECC Memory Supported

Yes

PCIe Lanes

20 (16x PCIe 5.0 + 4x PCIe 4.0)

Socket

FCLGA1700 (Embedded Use)

Chipset Compatibility

Intel Q670E / H610E / W680 (Embedded)

Integrated GPU

Intel UHD Graphics 770 (32 EUs, up to 1.65 GHz)

Intel vPro® Eligibility

Intel vPro® Enterprise, Intel vPro® Essentials

Unlocked

No (locked multiplier)

TJUNCTION / Max Operating Temp

100°C

Price (MSRP)

$557

Core i9-14901E vs i9-14900 vs i9-13900E vs Ryzen 9 7945HX

Feature	i9‑14901E	i9‑14900	i9‑13900E	Ryzen 9 7945HX
Cores / Threads	8 / 16	24 / 32	24 / 32	16 / 32
Max Boost	5.6 GHz	5.8 GHz	5.2 GHz	5.4 GHz
Cache (L3)	36 MB	36 MB	36 MB	64 MB
E‑cores	None	16 E‑cores	16 E‑cores	N/A
Memory Support	DDR5/DDR4	DDR5/DDR4	DDR5/DDR4	DDR5 only
ECC Memory	Yes	No	No	No
TDP (Base / Max)	65W / 219W	65W / 219W	65W / 219W	55W / 157W
Integrated GPU	UHD 770	UHD 770	UHD 770	AMD RDNA 2
vPro Support	Yes (Enterprise)	No	Yes	No
	$557	$549	$520	$699

Setup Tips

Select a Compatible Embedded Motherboard

Ensure your motherboard uses an embedded chipset like Q670E, H610E, or W680. Consumer boards may lack the necessary BIOS support and vPro features required for full functionality. Consult the manufacturer’s embedded product line.

Enable ECC Memory in BIOS

If your application requires error‑correcting memory, use DDR5 or DDR4 ECC UDIMMs (unbuffered). Ensure ECC support is enabled in the BIOS. This is critical for industrial applications where data corruption cannot be tolerated.

Configure Power Limits for Your Thermal Enclosure

In the BIOS, you can adjust the PL1 (long‑term power) and PL2 (short‑term turbo) limits. For fan‑less systems, reduce PL1 to 45–55W to avoid overheating. For systems with active cooling, keep the default (65W PL1, 219W PL2).

Deploy with vPro AMT for Remote Management

For large embedded fleets, configure Intel Active Management Technology (AMT) during system provisioning. This allows remote KVM access, power cycling, and OS recovery even when the system is unresponsive.

Use High‑Quality Industrial RAM

The 14901E supports DDR5-5600 and DDR4-3200. For industrial applications, select wide‑temperature RAM modules rated for -40°C to 85°C if the system will be deployed in harsh environments. Standard consumer RAM may fail under extreme conditions.
