Does this motherboard support AMD Ryzen 7000 series processors out of the box?

Yes, all B650 motherboards natively support AMD Ryzen 7000 series desktop processors without requiring a BIOS update.

Can I use DDR4 memory with this motherboard?

No, the AM5 platform exclusively supports **DDR5 memory**. You cannot install DDR4 sticks into this board.

Does the PCIe 5.0 M.2 slot run at full speed with my SSD?

Yes, when paired with a compatible PCIe 5.0 NVMe SSD and a Ryzen 7000 processor, the primary slot operates at full PCIe 5.0 speeds.

Is WiFi included or do I need to buy an antenna?

The motherboard comes with an **ASUS WiFi moving antenna** included in the box for the integrated WiFi 6 module.

Does it have BIOS FlashBack capability?

Yes, a dedicated BIOS FlashBack button and port are located on the rear I/O panel, allowing you to update the BIOS without a CPU installed.

What is the maximum supported memory capacity?

The board supports up to **128GB of DDR5 memory** across its four DIMM slots.

Are all M.2 slots equipped with heatsinks?

The primary M.2 slot and selected secondary slots feature dedicated thermal heatsinks to keep your drives cool under heavy loads.

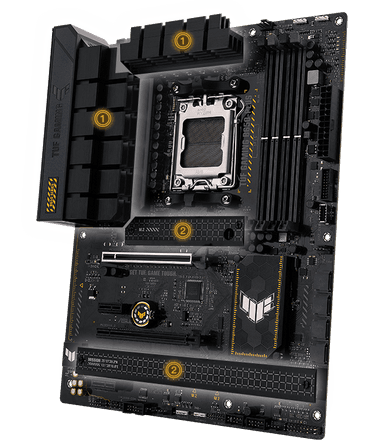

ASUS TUF Gaming B650-Plus WiFi

Military-grade durability meets modern AMD Ryzen performance with robust power delivery and fast connectivity.

Overview

The ASUS TUF Gaming B650-Plus WiFi brings military-grade components and an upgraded power solution to mainstream builders looking to harness the power of AMD Ryzen 7000 series processors. Featuring DDR5 memory support, PCIe 5.0 M.2 storage capabilities, and WiFi 6 wireless networking, this motherboard delivers uncompromised stability for gaming and content creation. Styled with the signature TUF aesthetic, it balances rugged durability with modern styling.

How It Works

Installing and configuring your hardware on the ASUS TUF Gaming B650-Plus WiFi is streamlined for both novice and veteran builders.

Processor and Memory Installation

Secure your AMD AM5 processor into the LGA1718 socket and populate the dual-channel DDR5 DIMM slots with up to 128GB of high-speed memory.

Storage and Graphics Expansion

Mount your primary NVMe SSD into the dedicated PCIe 5.0 M.2 slot and install your discrete graphics card into the reinforced SafeSlot PCIe 4.0 x16 slot.

Cooling and Power Connection

Attach your CPU cooler to the onboard fan headers and connect the 24-pin main power and 8+4 pin CPU power cables from your power supply.

BIOS Setup and Driver Installation

Power on the system, enter the UEFI BIOS to configure EXPO memory profiles, and install the necessary drivers using Armoury Crate or a USB drive.

Key Features

Robust Power Design

Equipped with 12+2 teamed power stages, rated for 60A each, combining high-side and low-side MOSFETs and drivers into a single package.

Next-Gen Connectivity

Features a dedicated PCIe 5.0 M.2 slot alongside two additional PCIe 4.0 M.2 slots for ultra-fast NVMe SSD storage performance.

High-Speed Networking

Includes Realtek 2.5Gb Ethernet and WiFi 6 (802.11ax) with Bluetooth 5.2 support for lag-free gaming and quick downloads.

Comprehensive Cooling

Enlarged VRM heatsinks, M.2 heatsinks, and a flexible array of fan headers managed via Fan Xpert 4.

DDR5 Memory Support

Unleashes memory performance with ASUS Enhanced Memory Profile (AEMP) for optimized frequency and stability.

Military-Grade TUF Components

Utilizes TUF LANGuard, TUF Chokes, and TUF Capacitors for maximum durability and lifespan.

Two-Way AI Noise Cancelation

Reduces background noise from the microphone and audio output for crystal-clear communication in games and voice chats.

VRM and Power Delivery

Engineered for sustained multi-core performance

12+2 Power Stages

Combines high and low-side MOSFETs to deliver the precise current required by high-end Ryzen 9 processors.

ProCool Sockets

Proprietary 8-pin and 4-pin connectors ensure flush contact with PSU power cables to prevent hot spots.

Memory Architecture

Unleashing the speed of DDR5

Dual-Channel DDR5

Supports up to 128GB across four slots with overclocking capabilities surpassing 6400+ MT/s.

AEMP Profiles

Allows users to easily optimize generic memory kits that lack explicit EXPO certification.

Expansion and Storage

Future-proof connectivity for GPUs and SSDs

PCIe 5.0 M.2 Support

One onboard slot supports the fastest next-generation solid-state drives available.

SafeSlot Core+

A fortified stainless steel PCIe sheath that securely anchors heavy graphics cards.

Networking Capabilities

Wired and wireless connectivity options

Realtek 2.5G LAN

Delivers up to 2.5 times the bandwidth of standard gigabit Ethernet.

WiFi 6 Module

Provides high throughput, improved efficiency, and reduced latency in congested wireless environments.

Audio and Personalization

Immersive sound and aesthetic control

Realtek 7.1 Surround Sound

Features premium audio capacitors and an integrated amplifier for pristine acoustics.

Aura Sync RGB

Onboard addressable headers allow for complete lighting synchronization across compatible gear.

✓ Pros

✓Excellent VRM thermal performance capable of handling Ryzen 9 chips
✓Includes a high-speed PCIe 5.0 M.2 slot for next-gen drives
✓Reliable WiFi 6 and 2.5G Ethernet networking
✓Sturdy construction with SafeSlot GPU reinforcement
✓User-friendly UEFI BIOS with comprehensive tuning tools
✓Clean, professional TUF aesthetic without excessive gamer styling
✓Handy Q-Latch mechanisms for tool-free M.2 installation

✗ Cons

✗Lacks native USB4 or Thunderbolt ports on the rear I/O
✗Only one PCIe 5.0 M.2 slot is provided
✗Price sits slightly higher than entry-level B650 alternatives
✗No integrated power/reset buttons on the board itself

Use Cases

High-performance gaming PCs featuring modern AMD Ryzen processorsContent creation workstations requiring fast NVMe storage and large RAM capacitiesStreamers needing reliable multi-gigabit networking and noise-canceling audioClean, militaristic aesthetic builds with subtle RGB lighting

Technical Specifications

CPU Socket

AMD Socket AM5 for Ryzen 7000 Series Processors

Chipset

AMD B650

Form Factor

ATX (30.5 cm x 24.4 cm)

VRM

12+2 Power Stages (60A)

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)

Expansion Slots

1 x PCIe 4.0/3.0 x16 (Supports x16), 1 x PCIe 4.0 x16 (supports x4), 2 x PCIe 4.0/3.0 x1

Storage

3 x M.2 slots (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4) and 4 x SATA 6Gb/s ports

Networking

Realtek 2.5Gb Ethernet, WiFi 6 (802.11ax), Bluetooth 5.2

USB

Rear: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2, 4 x USB 2.0

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

OS Support

Windows 11 / 10 64-bit

ASUS TUF Gaming B650-Plus WiFi vs. Competitors

Feature	asusTufGamingB650PlusWifi	msiMagB650TomahawkWifi	gigabyteB650AorusEliteAx
VRM Power Stages	12+2 (60A)	12+2 (80A)	12+2+1 (70A)
PCIe 5.0 M.2 Support	Yes (1 slot)	No	No
Wireless Networking	WiFi 6	WiFi 6E	WiFi 6E
Ethernet	Realtek 2.5G	Realtek 2.5G	Realtek 2.5G
Form Factor	ATX	ATX	ATX

Setup Tips

Enable EXPO Profiles

Enter the UEFI BIOS immediately upon first boot and enable the EXPO profile to ensure your DDR5 memory runs at its advertised high frequency rather than the default JEDEC speed.

Update the BIOS

Check for the latest BIOS version on the ASUS support site to ensure optimal system stability, improved memory compatibility, and security patches for your AM5 processor.

Utilize Armoury Crate Cautiously

While Armoury Crate is helpful for controlling Aura Sync RGB and downloading drivers, consider using standalone driver installers if you prefer a leaner background software footprint.

Frequently Asked Questions

Key Takeaway

The ASUS TUF Gaming B650-Plus WiFi is a robust, feature-packed ATX motherboard designed for AMD AM5 processors. Featuring a 12+2 power stage design, DDR5 memory support, and a dedicated PCIe 5.0 M.2 slot, it delivers exceptional performance and military-grade durability for modern gaming rigs.
