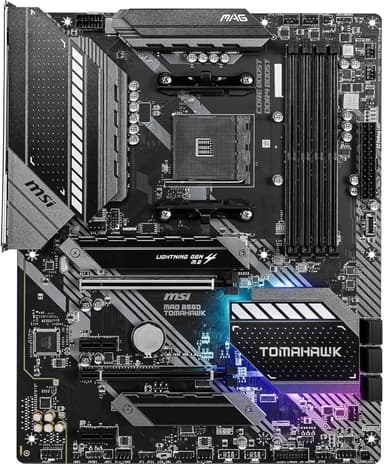

MSI MAG B550 Tomahawk
Arsenal Gaming Mainboard Engineered for Unyielding Mainstream AM4 Performance
Overview
How It Works
Power Stage Conversion & Voltage Regulation
Receives 12V DC power from the 8-pin EPS connector and uses a 10+2+1 Duet Rail Power System with 60A DrMOS power stages to convert it into ultra-clean, stable VCore voltage for the CPU.
Direct PCIe 4.0 Bus Routing
Utilizes direct CPU-attached lanes to provide 64 GB/s bandwidth across the primary PCIe 4.0 x16 slot and up to 64 Gbps throughput to the top M.2 NVMe storage slot.
Chipset Interconnect & Secondary Bus Distribution
Interfaces with the AMD B550 chipset via PCIe 3.0 x4 uplink to manage secondary storage, dual LAN controllers, audio, and supplementary PCIe expansion slots.
Passive Thermal Abatement & Smart Dynamic Fan Control
Monitors thermal sensors across VRMs and chipset, dissipating heat passively through heavy Extended Heatsinks and controlling PWM fan headers dynamically via MSI Dragon Center.
Key Features
10+2+1 Duet Rail Power System
Features a robust VRM architecture with 60A DrMOS power stages to effortlessly handle multi-core Ryzen 9 processors.
PCIe 4.0 Lightning Gen 4 Support
Delivers up to 64 GB/s bi-directional bandwidth for modern GPUs and ultra-fast Gen 4 NVMe solid-state drives.
Extended Heatsink Design
All-metal enlarged VRM heatsink dramatically lowers MOSFET temperatures during sustained heavy CPU overclocks.
Dual Onboard Network Ports
Combines a high-bandwidth 2.5G LAN controller with a standard Gigabit LAN controller for flexible network configurations.
Dual M.2 Shield Frozr
Integrated thermal heatsinks on both M.2 slots prevent thermal throttling on high-speed NVMe drives.
DDR4 Boost Engine
Fully isolated memory circuitry designed to support aggressive XMP memory overclocks exceeding 4860 MHz.
Pre-Installed I/O Shielding
Factory-fitted I/O plate provides enhanced ESD protection and simplifies system assembly inside the chassis.
Flash BIOS Button
Allows instant BIOS updates using only a USB flash drive and power supply—no CPU or RAM required.
Front Panel USB Type-C Header
Provides onboard connectivity for modern PC cases equipped with front-panel USB 3.2 Gen 1 Type-C ports.
VRM Architecture & Power Delivery
Uncompromised power stability for high-core-count Ryzen CPUs
10+2+1 Digital Power Configuration
Employs 10 doubled VCore phases, 2 SOC phases, and 1 APU phase to deliver clean current directly to the AM4 socket.
60A DrMOS Power Stages
Integrates driver and MOSFETs into single packages to reduce operating temperatures and boost efficiency under full load.
Digital PWM Controller
Uses an Intersil PWM controller for rapid dynamic response to CPU voltage requests and minimal transient droop.
Heavy-Duty 8-Pin CPU Connector
Solid-pin CPU power input provides low-resistance current transmission to prevent cable overheating.
PCIe 4.0 Subsystem & Expansion Topology
Maximizing throughput for next-generation graphics cards and storage
Primary PCIe 4.0 x16 Slot
Steel Armor reinforced slot directly connected to the CPU providing 64 GB/s bandwidth for high-end GPUs.
Lightning Gen 4 M.2 Slot
Delivers up to 64 Gbps transfer speeds using PCIe 4.0 x4 lanes, doubling PCIe 3.0 performance.
Secondary PCIe 3.0 x16 Slot
Chipset-driven slot operating at x4 mode, ideal for capture cards, high-speed add-in cards, or secondary storage expanders.
PCIe Steel Armor Protection
Protects the primary graphics slot against physical bending and electromagnetic interference (EMI).
Memory Overclocking & Signal Integrity
Optimized memory routing with DDR4 Boost technology
DDR4 Boost Tracing
Fully isolated memory circuit paths prevent electromagnetic noise from other components from destabilizing RAM signal.
High Frequency Support (4860+ MHz)
Tested and validated with extreme XMP profiles to achieve stable memory speeds far above JEDEC standards.
1-Click A-XMP Compatibility
Enables auto-tuning of memory timings and voltages directly through the Click BIOS 5 interface.
4-DIMM Dual Channel Capacity
Supports up to 128 GB of non-ECC unbuffered DDR4 memory across four dual-channel slots.
Advanced Thermal Management Solutions
Passive cooling architecture for sustained performance under heavy load
Extended VRM Heatsink
Large metallic heatsink covering the MOSFETs increases overall surface area to radiate power stage heat effectively.
7W/mK Choke Thermal Pads
High-performance thermal pads between power stages, chokes, and heatsinks maximize thermal transfer efficiency.
Dual M.2 Shield Frozr
Dedicated thick aluminum heat spreaders for both M.2 slots prevent thermal throttling on high-speed NVMe SSDs.
6-Layer PCB with 2oz Thickened Copper
Enhanced PCB design increases heat dissipation rate across the entire board while supporting high electrical currents.
Dual Network & Connectivity Array
High-speed network switching and modern USB connectivity
Realtek RTL8125B 2.5Gb Ethernet
Delivers 2.5x faster speeds than standard Gigabit LAN for ultra-low latency gaming and local high-speed file transfers.
Secondary Realtek 1Gb Ethernet
Provides dual-LAN capabilities, allowing dedicated network segmentation, firewall routing, or failover modes.
Rear USB 3.2 Gen 2 Type-A & Type-C
Delivers up to 10 Gbps transfer speeds for external high-speed SSDs and peripheral docks.
Front Panel USB Type-C Support
Internal USB 3.2 Gen 1 header enables high-speed Type-C ports on modern computer chassis.
Audio Boost & Circuit Isolation
Studio-grade sound reproduction with EMI shielding
Realtek ALC1200 HD Audio Codec
Supports up to 32-bit/192kHz audio output with dynamic range for precise positional sound queues.
Isolated Audio Circuitry
Physical separation line embedded in the PCB prevents digital noise bleed into sensitive analog audio paths.
Chemicon High-Quality Audio Capacitors
Japanese audio capacitors ensure warm, natural, and high-fidelity sound representation for headphones and speakers.
De-Pop Protection Filter
Integrated relay eliminates annoying popping noises when connecting or disconnecting audio jacks or powering on.
✓ Pros
- ✓Exceptionally strong 10+2+1 VRM power delivery capable of running Ryzen 9 5950X smoothly
- ✓Dual onboard Ethernet ports including a fast 2.5Gb LAN controller
- ✓Full PCIe 4.0 x16 and PCIe 4.0 M.2 support for next-gen GPUs and SSDs
- ✓Comprehensive thermal design with extended heatsinks and dual M.2 Shield Frozr
- ✓Flash BIOS Button allows easy CPU compatibility updates without installed components
- ✓Pre-installed I/O shield makes installation easier and protects rear ports
- ✓Clean, matte-black industrial design with understated customizable Mystic Light RGB
- ✓Solid 6-layer PCB construction with 2oz copper for improved thermals and signal stability
✗ Cons
- ✗Lacks integrated Wi-Fi and Bluetooth out of the box (requires PCI-E card or USB adapter)
- ✗Secondary M.2 slot is limited to PCIe 3.0 x4 speeds and shares bandwidth with PCIe slots
- ✗Populating the second M.2 slot disables certain PCIe 3.0 x1 expansion slots
- ✗Uses Realtek ALC1200 audio codec instead of the premium ALC1220 found on higher-tier boards
Use Cases
Technical Specifications
MSI MAG B550 Tomahawk vs. Mainstream Mid-Range B550 Rivals
| Feature | magB550Tomahawk | tufGamingB550Plus | b550AorusEliteV2 |
|---|---|---|---|
| VRM Power Stages | 10+2+1 (60A DrMOS) | 8+2 (50A DrMOS) | 12+2 (50A DrMOS) |
| Ethernet Connectivity | Dual LAN (2.5Gb + 1Gb) | Single 2.5Gb LAN | Single 2.5Gb LAN |
| M.2 Heatsinks Included | 2x M.2 Shield Frozr | 1x M.2 Heatsink | 2x M.2 Heatsinks |
| Pre-Installed I/O Shield | Yes | No (Loose I/O Plate) | Yes |
| Front USB Type-C Header | Yes (USB 3.2 Gen 1) | Yes (USB 3.2 Gen 1) | Yes (USB 3.2 Gen 1) |
| PCB Layer Count | 6-Layer (2oz Copper) | 4-Layer | 4-Layer |
| Audio Codec | Realtek ALC1200 | Realtek S1200A | Realtek ALC1200 |
| Flash BIOS Without CPU | Yes (Flash BIOS Button) | Yes (BIOS FlashBack) | Yes (Q-Flash Plus) |
Setup Tips
Update BIOS via Flash BIOS Button Before Assembly
If installing a newer Ryzen 5000 processor, format a USB drive to FAT32, place the latest BIOS renamed to 'MSI.ROM' on it, insert into the dedicated Flash BIOS port, and press the button before installing RAM or CPU.
Install RAM in Optimal Dual-Channel Slots
Populate slots A2 and B2 (the 2nd and 4th slots from the CPU socket) first to ensure optimal DDR4 Boost signal performance and stability with XMP enabled.
Remove Protective M.2 Thermal Film
Remember to peel off the blue protective plastic film from the thermal pads on the underside of both M.2 Shield Frozr heatsinks prior to mounting NVMe SSDs.
Enable A-XMP in Click BIOS 5
After initial boot into BIOS, navigate to the main screen and click the 'A-XMP' profile button to run high-speed DDR4 memory at its rated advertised frequency.
Connect Case Front Panel Type-C Lead Early
Attach the right-angled USB 3.2 Gen 1 front panel Type-C header connector before mounting large GPUs, as access to the right edge of the PCB can be tight once installed.
Frequently Asked Questions
Key Takeaway
The MSI MAG B550 Tomahawk is an exceptionally engineered AM4 motherboard designed to unleash the performance of AMD Ryzen 3000 and 5000 series processors. Featuring a heavy-duty 10+2+1 Duet Rail power stage VRM, dual M.2 heatsinks, PCIe 4.0 expansion, and dual Ethernet controllers (2.5G + 1G), it brings high-end feature sets into a competitive mid-range price point. It remains one of the most reliable and efficient platform foundations available for mainstream PC builders and gamers.
