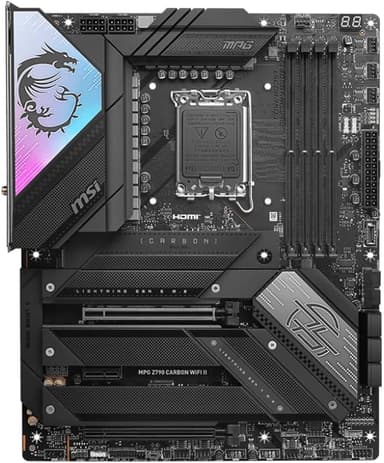

MSI MPG Z790 Carbon WiFi
Stealthy Carbon Fiber Aesthetics Powered by a Massive 19-Phase 105A Direct Power Delivery System
Overview
How It Works
Power Conversion and Regulation
Dual 8-pin CPU power connectors feed current into the 19+1+1 direct VRM, where 105A SPS MOSFETs drop the 12V supply to sub-1.4V CPU core voltages with minimal electrical ripple.
High-Frequency DDR5 Signal Isolation
The Memory Boost technology utilizes isolated signal trace layouts embedded within an 8-layer server-grade PCB to shield high-speed memory signals from electromagnetic interference.
PCIe 5.0 & NVMe Data Multiplexing
High-speed differential lines route PCIe 5.0 lanes directly from the CPU socket to the primary x16 graphics slot and top M.2 slot, supporting up to 128 GB/s bandwidth.
Thermal Heat Transfer & Dissipation
An extended heavy-duty heatsink connected by a direct-touch heatpipe absorbs thermal energy from the VRMs and transfers it efficiently across dense aluminum fin arrays.
Key Features
Direct 19+1+1 Phase Power Delivery
Features a direct 19+1+1 VRM design with 105A Smart Power Stages (SPS) and dual CPU power connectors to unleash top-tier Intel processors.
Onboard PCIe 5.0 M.2 Support
Includes a total of 5 M.2 slots, with the primary slot operating at PCIe 5.0 x4 speed for next-generation Gen5 NVMe SSDs.
Extreme DDR5 Overclocking
Supports four DDR5 DIMMs with overall capacity up to 192GB and validated speeds exceeding DDR5-7800+ (OC).
Screwless M.2 Shield Frozr
Patented tool-free thermal cover for the primary M.2 slot features a magnetic locking mechanism for effortlessly fast SSD installation.
Enhanced Thermal Solution
Equipped with an Extended Heatsink, direct-touch heatpipe, 7W/mK MOSFET thermal pads, and double-sided M.2 Shield Frozr pads.
High-Speed Intel Wi-Fi 6E & 2.5G LAN
Combines an Intel 2.5Gb Ethernet controller with Wi-Fi 6E (6GHz band) and Bluetooth 5.3 for low-latency network performance.
Audio Boost 5 PRO System
Powered by the Realtek ALC4080 audio codec combined with a dedicated Savitech SV3H712 DAC/amplifier for studio-grade acoustics.
Lightning USB 20Gbps Ports
Provides front and rear USB 3.2 Gen 2x2 Type-C ports capable of fast 20Gbps transfer speeds.
Server-Grade 8-Layer PCB
Constructed using an 8-layer PCB layout with 2oz thickened copper for higher signal integrity, system stability, and thermal dissipation.
Robust Power Delivery & VRM Design
Uncompromised 105A power supply tailored for maximum CPU overclocking stability
19+1+1 Phase Direct Power
Eliminates phase doublers to supply instantaneous power directly to the CPU cores, VCCGT, and VCCAUX lines.
105A Smart Power Stages
Monitors voltage and current in real time for each power stage to maintain peak electrical efficiency and low operating temperatures.
Dual 8-Pin EPS Connectors
Delivers up to 700W of clean 12V current to ensure zero power throttling during peak Turbo Boost states.
Titanium Choke III Components
High-grade ferrite chokes reduce power transformation loss and prevent coil whine under varying current loads.
Advanced Memory Tracing & DDR5 Boost
Shielded high-speed signal pathways for pushing DDR5 modules beyond standard specs
Memory Boost Technology
Isolates memory trace lines in inner layers of the PCB to block electrical crosstalk from adjacent hardware components.
Validated DDR5 7800+ MHz (OC)
Extensive QVL validation ensures seamless XMP 3.0 profile activation for extreme memory speeds.
SMT (Surface Mount Technology) Slot
Reduces solder point defects and electromagnetic interference for cleaner high-frequency memory signals.
Custom Memory Try It! BIOS Presets
Pre-configured latency and voltage tables in the BIOS allow users to easily tune sub-timings.
Next-Gen PCIe 5.0 & Comprehensive Storage Layout
Massive bandwidth allocations with five onboard NVMe M.2 slots
PCIe 5.0 x4 M.2 Slot
Dedicated top slot connected directly to CPU lanes capable of sequential speeds exceeding 14,000 MB/s.
Four Additional PCIe 4.0 M.2 Slots
Provides massive expansion options for high-capacity high-speed NVMe storage arrays.
Screwless M.2 Shield Frozr
Features a magnetic latch and tool-free installation mechanism for effortless drive swapping.
Steel Armor PCIe Slots
Reinforced PCIe 5.0 x16 graphics card slot anchored with extra solder points to support massive GPUs.
Comprehensive Thermal Ecosystem
Heatsinks, heatpipes, and intelligent fan management designed for cool extended operation
Extended Heavy VRM Heatsink
Combines a massive aluminum heatsink block with carbon-fiber styled badging over the rear I/O shroud.
Direct-Touch Heatpipe Design
Connects the two main VRM heatsink sections to evenly balance thermal load across both arrays.
Double-Sided M.2 Thermal Pads
High conductivity 7W/mK pads contact both sides of M.2 drives to drop controller temperatures.
Frozr AI Cooling Control
Dynamically adjusts fan curves connected to 8 total header locations based on CPU and GPU temperatures.
Next-Gen Connectivity & Studio Audio
Ultra-fast networking hardware paired with isolated high-fidelity sound processing
Intel Wi-Fi 6E Wireless
Utilizes the uncrowded 6GHz spectrum for high-throughput, sub-millisecond wireless latency.
Intel 2.5Gb Ethernet Controller
Delivers high-bandwidth wired network communication for fast file transfers and online gaming.
Dual USB 3.2 Gen 2x2 20Gbps
Rear and front-panel Type-C connectors provide ultra-fast transfer speeds for external drives.
Audio Boost 5 PRO Hardware
Realtek ALC4080 codec coupled with Savitech SV3H712 amp supports high-impedance studio headphones up to 600 Ohms.
Enthusiast EZ-DIY Hardware Features
Engineered for intuitive troubleshooting, BIOS recovery, and system setup
Flash BIOS Button
Allows updates to the motherboard BIOS without installing a CPU, RAM, or graphics card.
Clear CMOS & Smart Buttons
Rear panel switches provide quick reset capability and customizable quick-action reboots.
EZ Debug LED Display
4-digit LED readout panel gives clear POST error codes for rapid hardware diagnosis.
Pre-Installed I/O Shield
Factory-attached rear panel shield simplifies case installation and protects against electrostatic discharge.
✓ Pros
- ✓Overbuilt 19+1+1 105A power delivery handles heavy CPU overclocking easily
- ✓Generous storage options with 5 onboard M.2 slots (1x PCIe 5.0)
- ✓Convenient Screwless M.2 Shield Frozr tool-free installation mechanism
- ✓Exceptional DDR5 memory stability and high frequency tuning capability (7800+ MHz)
- ✓High-end Audio Boost 5 PRO stack with dedicated Savitech headphone DAC/amp
- ✓Comprehensive back panel connectivity featuring Dual 20Gbps USB Type-C ports
- ✓Pre-installed I/O shield with rear Clear CMOS and Flash BIOS controls
- ✓Sleek stealthy carbon aesthetic with minimal, tasteful RGB lighting
✗ Cons
- ✗Populating the PCIe 5.0 M.2 slot shares bandwidth with the primary PCIe 5.0 x16 slot
- ✗Premium price point compared to entry-level Z790 options
- ✗No integrated 10Gb Ethernet port, topping out at 2.5GbE
- ✗Heavy heatsink array makes access to CPU latch area tight in compact cases
Use Cases
Technical Specifications
MSI MPG Z790 Carbon WiFi vs Upper-Tier Competitors
| Feature | mpgZ790CarbonWifi | rogStrixZ790EGaming | z790AorusMaster |
|---|---|---|---|
| VRM Design | 19+1+1 Phases (105A SPS) | 18+1 Phases (90A SPS) | 20+1+2 Phases (105A SPS) |
| Total M.2 Slots | 5 Slots (1x PCIe 5.0 + 4x PCIe 4.0) | 5 Slots (1x PCIe 5.0 + 4x PCIe 4.0) | 5 Slots (1x PCIe 5.0 + 4x PCIe 4.0) |
| Tool-free M.2 Mechanism | Screwless M.2 Shield Frozr (Magnetic) | Q-Latch System | EZ-Latch Click |
| Max Memory Speed (OC) | DDR5 7800+ MHz | DDR5 7800+ MHz | DDR5 8000+ MHz |
| Ethernet Networking | Intel 2.5GbE LAN | Intel 2.5GbE LAN | Marvell 10GbE LAN |
| Audio Hardware | Realtek ALC4080 + Savitech SV3H712 DAC | Realtek ALC4080 + Savitech SV3H712 DAC | Realtek ALC1220-VB + ESS SABRE DAC |
| PCB Layers | 8-Layer Server Grade | 8-Layer PCB | 8-Layer PCB |
Setup Tips
Enable XMP in BIOS
After installing your memory modules into DIMM slots A2 and B2, enter the UEFI BIOS and toggle Intel XMP 3.0 Profile 1 to run your RAM at its rated high speeds.
Update BIOS before installing 14th Gen CPUs
Format a USB drive to FAT32, copy the latest BIOS file renamed to `MSI.ROM`, insert it into the dedicated Flash BIOS USB port, and press the Flash BIOS button for tool-free firmware flashing.
Install Wi-Fi Antenna for Bluetooth & Wireless Connectivity
Ensure the included gold-plated Wi-Fi antenna base is securely screwed into the rear I/O connectors to enable optimal Wi-Fi 6E and Bluetooth 5.3 range.
Optimal M.2 Drive Placement
To prevent splitting CPU PCIe lanes on your primary GPU slot, install your main operating system NVMe drive into M.2_2 or M.2_3 (PCIe 4.0 slots) unless you explicitly require Gen5 SSD bandwidth.
Connect Front Panel USB 3.2 Gen 2x2 Header
Plug your case's internal Type-C cable into the board's high-speed USB 3.2 Gen 2x2 front panel header to unlock 20Gbps transfers on front panel chassis ports.
Frequently Asked Questions
Key Takeaway
The MSI MPG Z790 Carbon WiFi is an enthusiast-class LGA 1700 motherboard featuring an overbuilt 19-phase VRM, extreme DDR5 speed support, and a total of five onboard M.2 slots. Built with an eight-layer PCB, tool-free Screwless M.2 Shield Frozr heatsinks, and Intel Wi-Fi 6E networking, it delivers superior overclocking headroom and expansive connectivity for high-end gaming setups and creative workstations.
