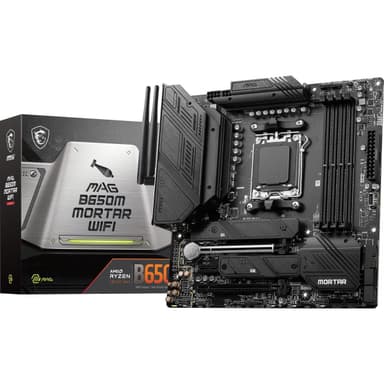

MSI MAG B650M Mortar WiFi
Heavy-duty Micro-ATX performance optimized for next-generation AMD Ryzen processors.
Overview
How It Works
Power Regulation
Dual 8-pin CPU power connectors feed raw power into the 12+2+1 Duet Rail Power System. The 80A Smart Power Stages (SPS) step down and stabilize the voltage, delivering exceptionally smooth current directly to the AM5 processor cores.
Thermal Dissipation
Heat generated by the VRMs and M.2 NVMe SSDs is transferred via high-performance 7W/mK thermal pads to the extended metal heatsinks and M.2 Shield Frozr heat spreaders, preventing thermal throttling during prolonged, heavy workloads.
High-Speed Memory Execution
The isolated DDR5 Memory Boost circuitry utilizes optimized layout traces to route high-frequency memory signals between the CPU and DIMM slots, enabling users to easily activate AMD EXPO profiles for overclocked RAM speeds up to 7600+ MHz.
Data and Interface Routing
High-bandwidth data is split efficiently between the Lightning Gen 4 PCIe x16 slot for graphics processing and dual PCIe 4.0 x4 M.2 slots for storage, while the rear panel manages high-speed peripheral data via a 20Gbps USB 3.2 Gen 2x2 Type-C controller.
Key Features
12+2+1 Duet Rail Power System
Provides clean, efficient, and exceptionally stable power delivery with 80A Smart Power Stages to comfortably handle flagship AM5 processors.
Dual M.2 Shield Frozr
Keeps high-speed PCIe Gen 4.0 x4 solid-state drives cool to prevent thermal throttling and maintain peak read/write speeds.
DDR5 Boost & AMD EXPO Support
Optimized memory layout traces and single-click profile activation to achieve high-frequency DDR5 memory speeds exceeding 7600+ MHz.
Steel Armor PCIe Slot
Reinforced with heavy-duty metal wrapping and extra solder points to protect the primary PCIe 4.0 x16 slot from physical damage caused by heavy graphics cards.
Wi-Fi 6E & Bluetooth 5.3
Delivers advanced wireless capability utilizing the dedicated 6GHz spectrum for ultra-low latency, high-bandwidth gaming and streaming.
Premium ALC4080 Audio Codec
Features high-fidelity audio capacitors and an isolated physical layout to supply pristine, studio-grade 7.1-channel surround sound.
2.5G High-Speed LAN
Realtek RTL8125BG chip provides up to 2.5 times the bandwidth of standard Gigabit Ethernet ports for responsive, stutter-free online play.
USB 3.2 Gen 2x2 Type-C Port
Offers lightning-fast external transfer speeds up to 20Gbps on the rear I/O panel, perfect for high-speed portable SSDs.
Flash BIOS Button
Allows users to easily flash or update the motherboard's BIOS with only a USB flash drive and a power supply connected, no CPU or RAM required.
Power Delivery & VRM Architecture
Uncompromised electrical stability for high-draw processors
80A Smart Power Stages
Ensures precise current control and superior heat regulation by combining high-side and low-side MOSFETs into a single chip package.
Dual 8-Pin CPU Connectors
Supplies plentiful, clean electrical current directly to the socket, preventing connector overheating during extreme CPU power draws.
Core Boost Technology
Combines MSI's premium layout design with highly optimized digital power delivery to support multi-core CPUs without throttling.
6-Layer Server-Grade PCB
Thickened with 2oz of copper tracing to improve high-frequency signal integrity and optimize internal board thermal dissipation.
Advanced Cooling & Thermal Engineering
Heavy-duty metal heatsinks for non-stop performance
Extended VRM Heatsink
A massive metal cooling block featuring deep fins that exponentially increases surface area for convection cooling.
7W/mK Thermal Pads
Premium-grade thermal pads on the choke and MOSFET components ensure optimal heat conduction to the outer metal heatsinks.
Dual M.2 Shield Frozr
Dedicated aluminum covers for both M.2 drive slots to protect high-performance NVMe SSDs from heat buildup and thermal throttling.
Frozr AI Cooling Support
Intelligent thermal detection software inside the MSI Center that dynamically adjusts system fan curves based on actual CPU and GPU thermals.
Memory Optimization & DDR5 Signal Pathing
Pushing the limits of high-speed AM5 memory profiles
Dedicated DDR5 Memory Boost
Isolated circuitry design minimizes cross-talk, protecting the delicate high-frequency signals running to the memory slots.
SMT Mounting Process
Surface Mount Technology reduces physical solder joint defects, guaranteeing pristine signal quality on high-speed memory slots.
AMD EXPO Profile Optimization
Extensively tested and verified in coordination with top memory brands to ensure immediate stability and maximum speed upon activation.
192GB Maximum Capacity Support
Accommodates four dual-channel DIMM slots compatible with high-capacity 24GB and 48GB modules for massive system memory configurations.
Storage Capabilities & High-Speed Expansion
Lightning-fast pathways for storage and graphics solutions
Dual PCIe 4.0 x4 M.2 Slots
Enables maximum speeds up to 64Gb/s per slot, allowing quick access to heavy game assets, massive database files, and 4K media.
Steel Armor PCIe 4.0 x16 Slot
Engineered with heavy-duty metal shielding that prevents electromagnetic interference while physically protecting the slot from heavy modern GPUs.
6x SATA 6Gb/s Ports
Provides abundant expandability options for traditional 2.5-inch SSDs or high-capacity 3.5-inch hard drives, perfect for media archives.
Flexible Storage RAID
Supports hardware-level RAID 0, RAID 1, and RAID 10 configurations for both NVMe and SATA arrays, giving users data security options.
Studio-Grade Audio & Enthusiast Connectivity
Immersive acoustics and low-latency network options
Realtek ALC4080 Codec
Offers premium 32-bit/384kHz audio processing, generating lifelike acoustics with minimal signal distortion.
Dedicated Headphone Amplifier
Automatically senses headphone impedance to output balanced, high-fidelity sound for audiophile-grade gear.
AMD Wi-Fi 6E Wireless Adapter
Operates on the uncrowded 6GHz wireless spectrum, offering rapid transfer speeds and low latency in congested network environments.
Realtek 2.5G LAN Controller
High-bandwidth wired Ethernet connection designed to deliver stable gaming packets and optimized file-sharing throughput.
✓ Pros
- ✓Robust 12+2+1 Duet Rail VRM with 80A Smart Power Stages easily handles high-end Ryzen CPUs.
- ✓Dual M.2 Shield Frozr heatsinks prevent performance throttling on high-speed NVMe storage.
- ✓High-end Realtek ALC4080 audio codec delivers noticeably cleaner sound than budget ALC897 chips.
- ✓Exceptional rear panel connectivity including a 20Gbps USB 3.2 Gen 2x2 Type-C port.
- ✓Integrated Wi-Fi 6E and high-bandwidth 2.5G Ethernet for excellent networking flexibility.
- ✓Includes physical Flash BIOS Button for easy processor upgrades without needing an older CPU.
- ✓Six SATA III ports offer more legacy storage expansion than typical Micro-ATX boards.
- ✓Premium design aesthetics featuring clean, solid black-and-grey metallic styling.
✗ Cons
- ✗No support for PCIe Gen 5.0 graphics cards or Gen 5.0 M.2 SSD storage units.
- ✗First-boot memory training sequence can take several minutes on older BIOS versions.
- ✗Lacks a physical PCIe slot quick-release mechanism for extra-large triple-slot graphics cards.
- ✗Priced slightly higher than some budget-oriented AMD B650 Micro-ATX motherboard options.
Use Cases
Technical Specifications
B650M Mid-Range Micro-ATX Comparison
| Feature | magB650mMortarWifi | b650mAorusEliteAx | tufGamingB650mPlusWifi |
|---|---|---|---|
| VRM Power Stage Rating | 12+2+1 Phases (80A SPS) | 12+2+1 Phases (60A SPS) | 12+2+2 Phases (60A SPS) |
| Audio Codec Chipset | Realtek ALC4080 (Premium) | Realtek ALC897 (Entry) | Realtek Realtek (Custom ALC1200 series) |
| SATA Storage Ports | 6x SATA 6Gb/s | 4x SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 Gen 5 Support | No (Dual Gen 4 only) | Yes (1x Gen 5, 1x Gen 4) | Yes (1x Gen 5, 1x Gen 4) |
| Rear Panel USB speeds | 1x 20Gbps USB-C, 3x 10Gbps | 1x 10Gbps USB-C, 2x 10Gbps | 1x 20Gbps USB-C, 2x 10Gbps |
| PCB Layer Count | 6-Layer (Server-Grade) | 6-Layer (Standard-Grade) | 6-Layer (Standard-Grade) |
Setup Tips
Perform an Offline BIOS Update
Before installing a newly released processor, copy the latest BIOS file renamed to 'MSI.ROM' onto a FAT32-formatted USB drive, plug it into the marked USB port on the back, and press the Flash BIOS button to ensure maximum compatibility.
Enable AMD EXPO and Memory Context Restore
Once Windows is installed, enter the BIOS, activate the AMD EXPO profile for your RAM, and enable the 'Memory Context Restore' setting to greatly reduce daily computer boot times.
Populate the Correct RAM Slots First
For dual-channel memory stability, ensure your RAM modules are placed in slots DIMMA2 and DIMMB2 (the second and fourth slots from the CPU socket) as printed on the board's routing guide.
Peel Protective Film from Shield Frozr Pads
When installing M.2 SSDs, remember to unscrew the metal Shield Frozr heatsinks and peel off the blue plastic protective layer covering the pre-applied thermal pads to allow proper heat transfers.
Frequently Asked Questions
Key Takeaway
The MSI MAG B650M Mortar WiFi is a high-performance Micro-ATX motherboard designed for AMD AM5 processors. With an impressive 12+2+1 power delivery design, premium Realtek ALC4080 audio, and robust cooling solutions, it offers exceptional reliability for gaming and production. While it lacks PCIe Gen 5 support, its vast array of high-speed USB ports, SATA connectors, and excellent wireless hardware make it a premium choice for high-end, space-saving builds.
