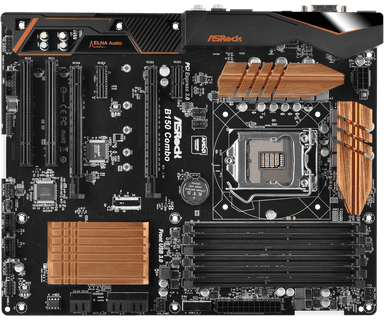

Asrock B150 Combo
The ultimate transition-era motherboard bridging DDR3 and DDR4 memory on the Intel LGA1151 platform.
Overview
How It Works
Select and Install One Memory Standard
Choose either DDR3/DDR3L or DDR4 memory modules. Place them in their respective color-coded slots, ensuring you never mix the two standards simultaneously to prevent hardware initialization errors.
Mount the CPU and Cooler
Insert an Intel LGA1151 processor (Skylake or Kaby Lake) into the socket. Apply thermal paste and secure your cooler, connecting its power lead to the designated CPU fan header.
Connect Storage and Expansion Cards
Plug your high-speed SSDs or HDDs into the SATA3 6.0 Gb/s ports or the dedicated SATA Express connector, then mount your graphics card into the primary steel-reinforced PCIe 3.0 x16 slot.
Configure UEFI BIOS and Boot
Power on the system, enter the Asrock EZ Mode UEFI, configure your SATA controller settings, set boot priorities, and let the integrated hardware detection optimize settings for your chosen RAM configuration.
Key Features
Hybrid Memory Combo Slots
Equipped with 4 x DDR3/DDR3L slots (up to 64GB at 1866MHz OC) and 2 x DDR4 slots (up to 32GB at 2133MHz) for unprecedented migration flexibility.
10-Power Phase Design
Delivers smooth, clean power to the CPU for rock-solid stability even during prolonged, heavy processing workloads.
Super Alloy Components
Features Matte Black PCB, Premium 50A Power Chokes, and High-Density Glass Fabric PCB layouts to resist moisture-induced electrical shorts.
ELNA Audio Capacitors
Reduces noise levels significantly, satisfying audiophiles with clean, warm sound output via high-quality 7.1-channel Realtek ALC892 audio.
SATA Express Support
Includes a high-speed SATA Express 10 Gb/s connector to accommodate advanced, high-performance solid-state drives.
Full Spike Protection
Protects sensitive motherboard components from sudden, damaging voltage spikes or electrostatic discharge (ESD).
Triple Monitor Output
Supports up to three graphics outputs simultaneously (D-Sub, DVI-D, HDMI) utilizing integrated Intel HD Graphics.
PCIe Steel Slots
Reinforced structural points on the primary PCIe slot prevent heavy modern graphics cards from sagging or breaking the solder joints.
Dual-Generation Memory Controller Routing
Bridging the gap between DDR3 and DDR4 technologies
Voltage Separation
Uses dedicated buck converters to deliver 1.5V/1.35V for DDR3/DDR3L or 1.2V for DDR4 depending on which slots are populated.
Trace Optimizations
Symmetric routing helps eliminate crosstalk and signal degradation, ensuring maximum stability when utilizing all four DDR3 slots.
Clear Physical Distinctions
Color-coded black and blue layouts clearly guide the builder to prevent incorrect mixed-population setups.
XMP Profile Support
Capable of reading Intel Extreme Memory Profiles (XMP 2.0) to auto-configure timings for both DDR3 and DDR4 standards.
Flexible Speed Ceiling
Allows DDR3 to run up to an overclocked 1866 MHz, while keeping DDR4 capped at the B150 chipset's native 2133 MHz standard.
10-Phase Power Delivery and VRM Engineering
Robust thermal design and heavy-duty current filtering
Premium 50A Power Chokes
Effectively saturate up to three times better than traditional chokes, supplying enhanced and improved Vcore voltage to the motherboard.
Matte Black Heatsinks
Aluminum alloy VRM heatsinks dissipate heat passively from the MOSFETs, maintaining system cool-down during prolonged render tasks.
I/O Armor Shielding
A protective shroud shields the rear I/O connectors and surrounding VRM components from physical impacts and static buildup.
Solid Capacitor Design
Equipped with ultra-reliable solid caps that offer stable performance and an extended lifespan under harsh operational conditions.
High-Density Glass Fabric PCB
Features a specialized weave pattern that protects the copper internal traces from humidity-related electrical shorts.
Storage Interfaces and PCIe Lane Distribution
Flexible expandability for expansion cards and high-speed drives
SATA Express 10 Gb/s
Combines PCIe and SATA technologies to allow solid-state drives to break past the traditional 6 Gb/s SATA interface limits.
Six SATA3 Ports
Standard 6.0 Gb/s connectors offer plenty of expansion potential for massive multi-HDD storage arrays and optical drives.
Dual PCIe 3.0 x16 Slots
Supports multi-GPU configurations using AMD Quad CrossFireX technology via a dual-slot layout running at x16 and x4 modes.
Legacy PCI Expansion
Three physical PCI slots let users migrate legacy sound cards, RAID controllers, or specialized diagnostic gear without adapters.
Flexible PCIe x1 Slot
An open-ended PCIe 3.0 x1 slot accommodates smaller expansion hardware like Wi-Fi adapters or capture cards.
Enhanced Audio Isolation and ELNA Capacitors
Warm, noise-free sound reproduction for gamers and media enthusiasts
ELNA Audio Capacitors
Feature a low leakage current of only 3uA, drastically reducing background hiss and static for crystal-clear playback.
Realtek ALC892 Codec
Delivers robust 7.1-channel high-definition audio, ideal for immersive surround-sound gaming setups and movie nights.
PCB Isolation Shielding
An integrated physical line separating the audio layout protects analog signals from digital interference across the board.
Premium Content Protection
Full hardware support for premium Blu-Ray audio codecs ensures that high-quality media plays back with lossless fidelity.
Flexible Front Panel Header
Auto-detecting audio header detects headphone impedance automatically to optimize signal strength on front-panel jacks.
Intelligent Software and UEFI Bios Control
Feature-rich configuration tools for streamlined system optimization
Asrock Live Update & APP Shop
Simplifies system maintenance by hosting direct downloads for bios revisions, system drivers, and specialized utility suites.
Full Dynamic Fan Control
Includes customizable thermal curves in BIOS to dynamically adjust CPU and chassis fans based on onboard sensor readouts.
Asrock OMG (Online Management Guard)
Enables administrators to set designated internet access schedules and curfew restrictions directly at the BIOS level.
Easy Driver Installer
Allows users to download and install LAN drivers directly to a USB drive inside the UEFI environment without an active OS.
Dehumidifier Function
Configures the system to automatically spin up chassis fans at specified intervals to prevent condensation inside damp environments.
✓ Pros
- ✓Dual memory layout supports both legacy DDR3/DDR3L and modern DDR4 memory standards.
- ✓Robust 10-phase power delivery design provides excellent CPU stability under heavy loads.
- ✓Highly durable Super Alloy components resist moisture and static damage.
- ✓Equipped with three legacy PCI slots for older, specialized expansion cards.
- ✓Premium ELNA audio capacitors deliver warm, clear, low-noise analog sound.
- ✓Features a reinforced primary steel-shielded PCIe 3.0 slot to prevent graphics card sag.
- ✓Includes a SATA Express port for ultra-fast legacy storage option pathways.
- ✓Supports up to three displays simultaneously using onboard Intel HD graphics.
✗ Cons
- ✗DDR3 and DDR4 memory modules cannot be run simultaneously in a mixed configuration.
- ✗No native onboard M.2 PCIe NVMe slot, requiring an adapter card for modern M.2 drives.
- ✗Intel B150 chipset lacks support for CPU overclocking or memory speeds past 2133 MHz.
- ✗DDR4 support is limited to only two physical DIMM slots, capping total DDR4 capacity at 32GB.
Use Cases
Technical Specifications
How the Asrock B150 Combo stack up against competitors
| Feature | b150Combo | b150mAM2 | gaB150Hd3 |
|---|---|---|---|
| Memory Configuration | Hybrid (2x DDR4 + 4x DDR3) | 4x DDR4 Only | 4x DDR4 Only |
| VRM Power Phases | 10 Phase Design | 6 Phase Design | 5 Phase Design |
| Form Factor | ATX | Micro-ATX | ATX |
| Legacy PCI Slots | 3 Slots | None | 2 Slots |
| M.2 PCIe Support | No (Requires Adapter) | Yes (PCIe Gen3 x4) | Yes (PCIe Gen3 x4) |
| Audio Caps | ELNA Audio Caps | Standard Caps | High-End Audio Caps |
Setup Tips
Verify RAM Voltages
If you are utilizing legacy DDR3 modules, check their voltage specifications. Low-voltage DDR3L (1.35V) is optimal for minimizing wear on the CPU integrated memory controller.
Clear CMOS on First Boot
If switching from DDR3 to DDR4 or vice versa during hardware reconfigurations, perform a physical CMOS reset using the jumper to clear stored RAM training parameters.
Optimize Fan Curves
Configure the CPU fan target temperatures inside the UEFI BIOS system to run quietly when the system is idling and ramp up under heavy loads.
Update to Latest BIOS
Install the newest BIOS version from Asrock's official website using the Instant Flash tool to ensure the highest level of compatibility for 7th Gen CPUs and DDR4 memory modules.
Frequently Asked Questions
Key Takeaway
The Asrock B150 Combo is an innovative ATX motherboard designed to simplify system upgrades by offering dual support for legacy DDR3 and modern DDR4 memory. Built with high-grade Super Alloy components, a robust 10-phase power delivery design, and legacy PCI slots, it is an excellent choice for budget-focused system builders utilizing Intel LGA1151 processors. Its versatile connectivity and reliable construction make it a standout transitional platform for vintage and modern components alike.
