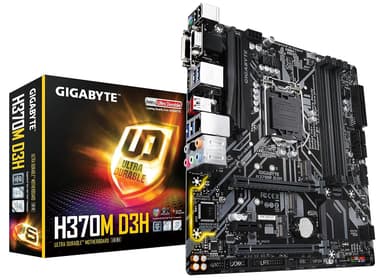

Gigabyte H370M D3H
Reliable Micro-ATX Foundation Built for Intel 8th and 9th Generation Core Processors
Overview
How It Works
Power Regulation
The onboard Hybrid Digital PWM Design transforms 12V power from the power supply into clean, precise voltages required by the LGA 1151 CPU socket and memory controllers.
Data Routing & PCIe Lanes
The Intel H370 Chipset manages high-speed data pathways, routing PCIe lanes directly to the primary PCIe 3.0 x16 slot and dual M.2 NVMe connectors for near-instantaneous storage access.
Periphery & Network Coordination
Integrated Intel Gigabit LAN and high-definition Realtek audio codecs process external data streams and analog signals, managed directly through UEFI BIOS instructions.
Key Features
Intel 8th/9th Gen Support
Fully compatible with LGA 1151 processors, offering out-of-the-box stability for multi-core desktop CPUs.
Dual M.2 Connectors
Features two PCIe Gen3 x4/x2 M.2 slots, with one supporting thermal guard protection and Intel Optane memory.
Hybrid Digital PWM Design
Employs high-quality power components to deliver clean and efficient current to the processor.
Intel Gigabit LAN with cFosSpeed
Includes enterprise-grade network optimization software to manage traffic and reduce latency in congested networks.
Smart Fan 5 Thermal Suite
Combines multiple temperature sensors and hybrid fan headers with fan stop technology for quiet operation.
High-End Audio Capacitors
Integrates premium audio capacitors and an audio noise guard to ensure pristine acoustic clarity.
Multi-Display Outputs
Equipped with DVI-D, D-Sub, and HDMI 1.4 ports to support multi-monitor configurations using integrated graphics.
Ultra Durable Protection
Features anti-sulfur resistors, solid pin power connectors, and ESD protection on LAN and USB ports.
USB 3.1 Gen 2 Type-A
Provides native high-speed USB ports on the back panel capable of up to 10Gbps data transfer rates.
Power Delivery & VRM Architecture
Engineered for sustained stability under demanding workloads
Hybrid Digital Design
Utilizes digital PWM controllers alongside low RDS(on) MOSFETs to maintain stable voltage delivery.
Solid Pin Power Connectors
Equipped with solid-plated 8-pin ATX 12V power connectors for superior electrical conductivity and heat dissipation.
Anti-Sulfur Resistor Design
Resistors feature an anti-sulfur alloy protection layer to prevent chemical corrosion from ambient air sulfur compounds.
Extended Heatsink Surface
Features sculpted aluminum heatsinks directly contacting the MOSFET array to mitigate thermal throttling risks.
Memory Performance & Dual-Channel Architecture
Optimized DDR4 routing for seamless multi-tasking
DDR4 Support up to 2666MHz
Natively supports memory clock speeds up to 2666MHz in accordance with Intel H370 chipset limitations.
XMP Profile Support
Allows users to load pre-configured Intel Extreme Memory Profiles for effortless high-speed memory operation.
Optimized Trace Routing
Memory traces are isolated within the PCB inner layers to eliminate electrical interference and signal degradation.
ECC Memory Support
Supports Un-buffered ECC Memory in non-ECC mode for professional environments requiring extra data integrity.
Expansion and Storage Capabilities
Flexible connectivity for modern GPUs and lightning-fast NVMe drives
Dual PCIe 3.0 M.2 Slots
Provides two M.2 slots supporting NVMe SSDs in RAID configurations for maximum read and write throughput.
PCIe Armor Slot
The primary PCIe x16 slot is reinforced with a stainless steel shielding brace to safely support heavy graphics cards.
Intel Optane Memory Ready
Accelerates traditional mechanical hard drives by caching frequently accessed data onto ultra-fast memory modules.
Multiple SATA 6Gb/s Ports
Includes six traditional SATA ports supporting RAID 0, 1, 5, and 10 for legacy storage arrays.
Networking and Connectivity
Reliable wired networking with advanced traffic prioritization
Intel GbE LAN
Features an Intel Gigabit Ethernet controller known for low CPU overhead and high throughput stability.
cFosSpeed Traffic Management
Network optimization software that improves ping times and maintains low latency during heavy network loads.
CNVi Wi-Fi Upgrade Slot
Includes a dedicated M.2 Key-E slot specifically designed for an optional Intel CNVi wireless and Bluetooth module.
ESD LAN Protection
Built-in electrostatic discharge protection guards the LAN port against lightning strikes and power surges.
Audio Subsystem and Aesthetics
Immersive acoustic delivery and clean industrial presentation
High-End Audio Capacitors
Utilizes professional-grade capacitors to deliver warm, high-fidelity sound reproduction for gaming and media.
Audio Noise Guard
An illuminated LED trace path isolates sensitive analog audio components from PCB-level electromagnetic interference.
Multi-Channel Output
Supports 2, 4, 5.1, and 7.1-channel high-definition audio playback through rear analog jacks.
Subtle LED Strip Support
Features RGB header pins allowing users to connect external LED strips for customized case lighting.
Cooling Architecture and Smart Fan 5
Total thermal control over system fans and liquid pumps
Multiple Temperature Sensors
Strategically placed sensors across the PCB report exact thermal data to the system management software.
Hybrid Fan Headers
Automatically detects whether connected hardware uses PWM or Voltage mode for universal fan compatibility.
Fan Stop Technology
Allows fans to completely halt operation when system temperatures drop below a designated user threshold.
Water Cooling Support
Dedicated pin headers provide up to 2 amps of power for high-performance custom water pump systems.
✓ Pros
- ✓Reliable Intel H370 chipset stability for 8th/9th Gen CPUs
- ✓Dual M.2 slots for high-speed NVMe storage expansion
- ✓Reinforced PCIe armor slot for heavy graphics cards
- ✓Intel Gigabit LAN with cFosSpeed traffic shaping software
- ✓Comprehensive Smart Fan 5 cooling management suite
- ✓Supports Intel CNVi Wi-Fi upgrade module
- ✓Durable Ultra Durable component build quality
- ✓Affordable entry point for professional Micro-ATX builds
✗ Cons
- ✗Does not support CPU overclocking due to H370 chipset limitations
- ✗Maximum memory frequency capped at 2666MHz
- ✗Lacks integrated Wi-Fi out of the box (requires separate CNVi card)
- ✗Limited to AMD CrossFire multi-GPU setups (no SLI support)
Use Cases
Technical Specifications
Gigabyte H370M D3H vs. Competitor Boards
| Feature | h370mD3h | primeB360mA | b360mMortar |
|---|---|---|---|
| Chipset | Intel H370 | Intel B360 | Intel B360 |
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| Max Memory | 64GB DDR4 | 64GB DDR4 | 64GB DDR4 |
| M.2 Slots | 2 Slots | 1 Slot | 2 Slots |
| USB 3.1 Gen 2 | Native (2 ports) | Native (2 ports) | Native (2 ports) |
| LAN Controller | Intel GbE | Realtek GbE | Intel GbE |
| CNVi Wi-Fi Slot | Yes | Yes | No |
| Multi-GPU | 2-Way AMD CrossFire | No | 2-Way AMD CrossFire |
Setup Tips
Update the BIOS
If you are using an Intel 9th generation processor, ensure you flash the latest UEFI BIOS version to guarantee immediate system stability and POST recognition.
Enable XMP Profile
Boot into the BIOS upon first startup and enable the Intel XMP profile to ensure your DDR4 memory kit runs at its rated speed rather than the default 2133MHz.
Utilize the Primary PCIe Slot
Install your dedicated graphics card into the top, steel-reinforced PCIe x16 slot to ensure full x16 bandwidth performance.
Configure Smart Fan Curves
Use the Smart Fan 5 utility in the BIOS or desktop software to establish custom acoustic and thermal curves for your case fans.
Frequently Asked Questions
Key Takeaway
The Gigabyte H370M D3H is a dependable Micro-ATX motherboard built around the Intel H370 chipset, offering robust support for 8th and 9th generation Core processors. Featuring dual NVMe M.2 slots, Intel Gigabit LAN, and durable component architecture, it provides an exceptional foundation for reliable workstations and mid-range desktop builds.
