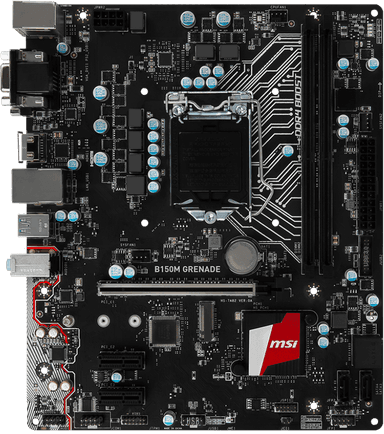

MSI B150M Grenade
Explosive Performance and Military-Grade Reliability for Micro-ATX Gaming Rigs
Overview
How It Works
Power Regulation and Delivery
The digital PWM and Military Class 4 chokes regulate power from the 24-pin ATX and 8-pin CPU headers, cleanly stepping it down to feed stable voltage to the installed Intel Core processor.
Memory Optimization via DDR4 Boost
Isolated memory circuitry ensures pure data signals travel between the DDR4 DIMM slots and the CPU memory controller, minimizing electrical noise and maximizing stability at 2133MHz speeds.
PCIe and Storage Routing
The PCIe 3.0 x16 slot communicates directly with the CPU for zero-latency GPU rendering, while storage drives connect through SATA 6Gb/s ports channeled directly via the B150 chipset.
Key Features
DDR4 Boost Technology
Fully isolated memory circuitry delivers pure data signals for optimal stability and performance.
Military Class 4 Components
High-quality Dark Chokes and Solid CAPs ensure enhanced longevity and stable power delivery.
PCI Express Steel Armor
Reinforced PCI-E slots prevent sagging and electromagnetic interference when paired with heavy graphics cards.
EZ Debug LED
Onboard LEDs indicate the source of any boot failure, simplifying troubleshooting for builders.
Click BIOS 5
An award-winning UEFI BIOS featuring high-resolution scalable fonts and easy system tuning.
Gaming LAN with LAN Protect
Intel I219-V Gigabit LAN optimized for low latency and protected against surges up to 15KV.
Audio Boost
Isolated audio PCB design and high-grade audio capacitors deliver studio-grade sound quality.
Smart Fan Control
Dedicated fan headers with full DC/PWM control allow for silent operation and elite cooling.
Power Delivery and VRM Design
Military-grade components engineered for rock-solid stability
Dark Choke Architecture
Features a special core design that runs cooler, offers higher current capacity, and improves overall power efficiency.
Solid CAPs Construction
Aluminum core capacitors provide ultra-low Equivalent Series Resistance (ESR) and a lifespan exceeding 10 years under normal operation.
CPU Overvoltage Protection
Built-in safeguards prevent short-circuit damage to both the processor and the motherboard VRM array.
Optimized PCB Layers
Multi-layer copper PCB design assists in rapid heat dissipation away from critical power zones.
Low RDS(on) MOSFETs
Reduces conduction loss and minimizes heat generation during high-amperage switching cycles.
Memory Performance and DDR4 Boost
Uncompromised memory signal integrity for standard speeds
Isolated Memory Circuits
Completely separated memory traces prevent cross-talk and electrical interference from other components.
Dual-Channel Architecture
Supports up to 64GB of non-ECC unbuffered memory across four DIMM slots for high multitasking bandwidth.
XMP Profile Support
Easily load pre-tuned memory profiles via the BIOS to achieve manufacturer-rated speeds and timings.
Heavy-Duty Retention Clips
Single-side latch design makes module installation and removal easier inside tight Micro-ATX builds.
Expansion and Steel Armor Protection
Built to safely house modern discrete graphics cards
PCIe 3.0 x16 Steel Armor
Soldered with more steel points on the PCB to prevent structural bending and EMI damage from heavy GPUs.
Secondary PCIe x1 Slots
Two additional PCIe 3.0 x1 slots allow for expansion cards like Wi-Fi adapters or dedicated sound cards.
Full-Length Bandwidth
The primary x16 slot operates at full PCIe 3.0 speeds directly tied to the CPU lanes.
Optimal Spacing
Thoughtful layout clearance prevents dual-slot graphics cards from blocking vital motherboard headers.
Storage and Connectivity Infrastructure
Versatile connectivity for high-speed drives and peripherals
Six SATA 6Gb/s Ports
Provides ample ports for traditional mechanical hard drives, high-speed SSDs, and optical drives.
RAID Support
Supports RAID 0, 1, 5, and 10 configurations on SATA storage devices for redundancy or speed.
USB 3.1 Gen1 Integration
Multiple SuperSpeed USB ports deliver up to 5Gb/s transfer rates for external storage enclosures.
Front Panel Header Support
Includes onboard headers to easily route high-speed USB ports directly to your PC case panel.
Networking and Audio Boost
Immersive sound and lag-free online gaming performance
Intel I219-V Gigabit LAN
Industry-leading network controller engineered for high throughput and reduced CPU overhead.
Network bandwidth management
Compatible with MSI Gaming LAN Manager to prioritize gaming packets over background downloads.
Audio Boost Circuitry
Isolated audio PCB layer separates analog and digital signals to drastically reduce background hiss.
Chemi-Con Audio Capacitors
Delivers warm, high-fidelity sound reproduction for headphones and multi-speaker setups.
BIOS, Cooling, and User Experience
Intelligent hardware management and hassle-free diagnostics
EZ Debug LED
Onboard indicator lights immediately show whether the CPU, Memory, or VGA is causing a boot hang.
Click BIOS 5 Interface
Features a smooth graphical hardware monitor and fan control suite with drag-and-drop curves.
Total Fan Control
Manage both PWM and DC fans via dedicated headers to balance acoustic levels and cooling performance.
MSI Live Update 6
Software utility that automatically checks and updates BIOS, drivers, and software utilities.
✓ Pros
- ✓Reliable Military Class 4 build quality for extended component longevity
- ✓Reinforced PCIe Steel Armor slot prevents GPU sagging
- ✓Isolated DDR4 Boost circuitry ensures high memory stability
- ✓Equipped with a responsive Intel I219-V Gigabit LAN controller
- ✓User-friendly Click BIOS 5 with comprehensive fan control options
- ✓Handy EZ Debug LED diagnostics simplify troubleshooting
- ✓Affordable entry point into the LGA 1151 Skylake ecosystem
- ✓Compact Micro-ATX form factor fits a wide variety of chassis sizes
✗ Cons
- ✗The B150 chipset does not support CPU overclocking
- ✗Memory frequency is capped at 2133MHz by chipset limitations
- ✗Lacks an onboard M.2 slot for ultra-fast NVMe solid-state drives
- ✗No native USB Type-C port on the rear I/O panel
Use Cases
Technical Specifications
MSI B150M Grenade vs. Competitors
| Feature | b150mGrenade | gaB150mDs3h | b150mA |
|---|---|---|---|
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| PCIe Armor | Yes (Steel Armor) | No | No |
| LAN Controller | Intel I219-V | Realtek GbE | Realtek RTL8111H |
| DIMM Slots | 4 Slots (Max 64GB) | 4 Slots (Max 64GB) | 4 Slots (Max 64GB) |
| Debug Diagnostics | EZ Debug LED | Basic LEDs | None |
| M.2 Support | No | Yes (PCIe Gen3 x4) | No |
Setup Tips
Verify CPU Pin Alignment
Carefully align the triangle on your 6th-gen Intel CPU with the socket marker before locking the retention arm to avoid bending delicate pins.
Populate DIMM Slots Correctly
For dual-channel memory configuration, install your two DDR4 sticks into slots DIMMA2 and DIMMB2 as recommended in the manual.
Update the UEFI BIOS
Flash the latest BIOS version using a USB flash drive via M-Flash to ensure maximum hardware compatibility and stability.
Connect the 8-Pin CPU Power
Do not forget to plug in the 8-pin ATX 12V power cable from your power supply alongside the main 24-pin connector.
Frequently Asked Questions
Key Takeaway
The MSI B150M Grenade is a rugged Micro-ATX motherboard built on the Intel B150 chipset for LGA 1151 Skylake processors. Featuring Military Class 4 components, DDR4 Boost technology, and a reinforced PCIe Steel Armor slot, it offers reliable performance and essential gaming features for budget-conscious builders.
