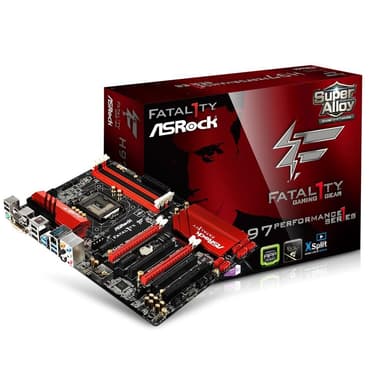

ASRock Fatal1ty H97 Performance
A Premium, Gaming-Focused LGA 1150 Board Packing Enthusiast Audio and Power on Intel's H97 Chipset
Overview
How It Works
Socket the CPU and RAM
Insert your LGA 1150 CPU into the socket, lock the retention arm, and install dual-channel DDR3 memory modules into the color-coded slots.
Connect Power and Cooling
Attach the 8-pin EPS and 24-pin ATX power cables to the motherboard, and connect your CPU cooler to the dedicated PWM header.
Configure BIOS and Storage
Power on the system and press F2 to enter the ASRock UEFI BIOS, where you can set SATA configuration to RAID or AHCI and choose the boot order.
Install Drivers and Software
Once booted into Windows, install the Intel LAN drivers and ASRock's F-Stream utility suite to unleash performance features.
Tune Gaming Peripherals
Plug your gaming mouse into the dedicated Fatal1ty Mouse Port and run the Key Master software to configure custom polling rates and macro keys.
Key Features
8 Power Phase Design
Uses sturdy power components and Digi Power voltage regulation to supply smooth power to the processor.
Purity Sound 2 Audio
Features a Realtek ALC1150 codec, 115dB SNR DAC, Nichicon Fine Gold series capacitors, and a TI NE5532 amplifier for superb gaming audio.
Fatal1ty Mouse Port
Dedicated USB port that allows gamers to customize their mouse polling rate from 125Hz to 1000Hz via software.
XXL Aluminum Alloy Heatsink
Extra-large passive cooling blocks in a stunning red finish keep the VRM and chipset running exceptionally cool.
Intel I218V Gigabit LAN
Provides reliable, low-ping wired networking performance with optimized packet prioritization for online games.
Key Master Utilities
A suite comprising Sniper Key and Macro Key utilities to enhance mouse precision and automate keystrokes in-game.
High Density Glass Fabric PCB
Specially woven PCB design protects against electrical shorts caused by ambient humidity and moisture.
SATA DOM Support
Includes a SATA Disk on Module power header to support specialized SSD modules often used in industrial or server setups.
ASRock Cloud Utility
Bundled subscription and software allowing users to remotely access their PC and share files seamlessly.
Premium VRM & Thermal Design
8-Phase Power and Heavy Alloy Cooling
Robust 8-Phase Power Delivery
Ensures consistent voltage regulation, minimizing vdroop under intensive gaming sessions.
Digi Power PWM Controller
Provides more efficient CPU Vcore voltage compared to traditional analog controller schemes.
Premium Alloy Chokes
Constructed with magnetic-resistant materials to reduce core loss and decrease heat generation.
XXL Heatsinks
Two massive anodized aluminum heatsinks sit directly over the MOSFETs, optimizing passive thermal dissipation.
NexFET MOSFETs
Specially selected low RDS(on) MOSFETs that offer much lower temperatures and higher efficiency.
Audiophile-Grade Purity Sound 2
Studio-Grade Onboard Audio Implementation
Realtek ALC1150 Codec
An advanced 7.1 channel high-definition audio chip offering an impressive 115dB signal-to-noise ratio.
Nichicon Fine Gold Capacitors
High-grade Japanese audio capacitors that deliver rich, natural, and warm acoustic tones.
TI NE5532 Amplifier
An integrated premium headset amplifier capable of driving studio headphones up to 600 Ohms.
PCB Isolation Shielding
Physical separation of the audio circuitry from other motherboard components prevents EMI hum.
EMI Shield Cover
A sleek metal cover placed over the audio codec to block external electromagnetic interference.
Expansion and Graphic Configurations
PCIe Layout and Multi-GPU Capabilities
PCIe 3.0 x16 Slot
One full-bandwidth slot connected directly to the CPU for optimal performance with modern GPUs.
Secondary PCIe 2.0 x16 Slot
Runs at x4 bandwidth, allowing for secondary expansion cards or multi-GPU configurations.
AMD Quad CrossFireX
Allows combining two AMD Radeon graphics cards for enhanced rendering and high-resolution gameplay.
Legacy PCI Slots
Three legacy PCI slots are provided to support older dedicated sound cards, capture cards, or controllers.
PCIe 2.0 x1 Slots
Two x1 slots offer plenty of connectivity options for modern high-speed internal Wi-Fi adapters.
Next-Gen Networking and Peripheral Features
Intel Wired LAN and Tailored Gaming Ports
Intel I218V Controller
A high-performance physical layer network chip known for exceptionally low CPU overhead and high throughput.
Fatal1ty Mouse Port
Enables customizable polling rates via F-Stream, giving competitive FPS players a tactical edge.
Key Master Software
Enables macro creation, customized key maps, and instant DPI toggles (Sniper Key) for any standard mouse.
Gold Audio and USB Connectors
15μ gold-plated contacts on audio ports and the Fatal1ty USB port prevent oxidation and minimize signal degradation.
Dehumidifier Function
A unique BIOS-level feature that automatically boots the PC briefly to spin fans and clear humidity.
Software Suite & Interactive UEFI BIOS
Comprehensive Interface Control and Diagnostics
Interactive UEFI Interface
Features an easy-to-read layout with both EZ and Advanced modes for configuring system parameters.
F-Stream Tuning Suite
An all-in-one software program that controls overclocking profiles, fan curves, and peripheral keys inside Windows.
ASRock Tech Service
A utility integrated directly into the UEFI BIOS that lets users send tech support requests directly to engineers.
My Favorites Feature
Allows users to bookmark frequently modified BIOS settings on a custom page for quicker access.
USB Key Function
Enables configuring a standard USB thumb drive to act as a physical security key to unlock Windows.
✓ Pros
- ✓Excellent 8-phase VRM construction keeps system components running stably under sustained loads.
- ✓Purity Sound 2 audio hardware rivaling premium dedicated sound cards.
- ✓Intel I218V Gigabit controller delivers reliable networking with minimal driver bloat.
- ✓Highly functional UEFI interface with excellent fan curve customization.
- ✓Stunning red-and-black enthusiast visual design suitable for show builds.
- ✓Fatal1ty Mouse Port provides genuine latency benefits for competitive gaming.
- ✓Support for both 4th and 5th Generation Intel LGA 1150 processors.
- ✓Extremely competitive price-to-performance ratio for a non-Z board.
✗ Cons
- ✗Intel H97 chipset natively restricts CPU multiplier overclocking compared to Z97.
- ✗Lacks an onboard M.2 slot for high-speed NVMe solid-state drives.
- ✗The second PCIe x16 slot is electrically capped at x4 speeds.
- ✗Does not support Nvidia SLI configurations due to PCIe lane allocation.
Use Cases
Technical Specifications
H97 Mid-Range Gaming Motherboard Comparison
| Feature | fatal1tyH97Performance | h97Gaming3 | h97ProGamer |
|---|---|---|---|
| VRM Phases | 8 Phases | 6 Phases | 8 Phases |
| Audio System | Purity Sound 2 (ALC1150 + TI NE5532) | Audio Boost 2 (ALC1150 + Dual Amps) | SupremeFX (ALC1150 + ELNA Caps) |
| M.2 Slot Support | No | Yes (M.2 PCIe Gen2 x2) | Yes (M.2 PCIe Gen2 x2) |
| LAN Chip | Intel I218V | Killer E2205 | Intel I218V |
| Legacy PCI Slots | 3 Slots | 3 Slots | 3 Slots |
| SATA Express Port | No | No | Yes (1 Port) |
| Dedicated Mouse Port Tuning | Yes (Fatal1ty Port via F-Stream) | No | No |
Setup Tips
Update the UEFI BIOS First
To ensure maximum compatibility with Haswell Refresh or Broadwell CPUs, flash the motherboard to the latest BIOS version using ASRock's built-in Instant Flash utility before installing the OS.
Configure the Memory Profile
Go into the BIOS and enable XMP (Extreme Memory Profile). Even though H97 limits speeds to 1600MHz, XMP optimizes memory sub-timings for improved system latency.
Optimize CPU Fan Profiles
Utilize the F-Stream utility or UEFI thermal monitor to configure a custom fan curve for your CPU cooler, balancing high-load heat dissipation with low-noise operation.
Install Intel I218V Drivers Directly
Avoid Windows default network drivers. Install the official Intel network driver package to leverage advanced packet filtering and optimal packet sizes.
Use the Red SATA Ports First
Plug your primary system boot drive into the SATA3_0 or SATA3_1 ports, which are controlled natively by the Intel H97 chipset, for peak performance and boot reliability.
Frequently Asked Questions
Key Takeaway
The ASRock Fatal1ty H97 Performance is a robust and stylish ATX motherboard designed to maximize the performance of LGA 1150 Intel processors without the premium cost of Z-series alternatives. Packing premium 8-phase power delivery, excellent Purity Sound 2 audio, and high-performance Intel gigabit networking, it provides an outstanding foundation for mid-range gaming builds. While it lacks native M.2 storage and dual-GPU SLI configurations, its reliability, low-ping networking, and superb sound hardware make it an excellent retro or budget-conscious choice.
