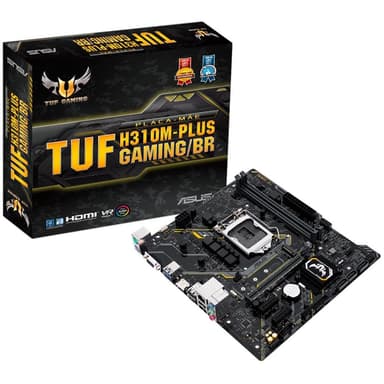

Asus TUF H310M-Plus Gaming
Military-grade durability meets core gaming essentials on the Intel H310 platform
Overview
How It Works
Power Delivery and Regulation
The onboard Digi+ VRM precisely regulates voltage delivered to the LGA 1151 socket, ensuring clean and steady power for multi-core Intel processors under heavy thermal loads.
Data Routing and Storage Acceleration
The Intel H310 chipset coordinates high-speed lane allocation, channeling data directly through PCIe and SATA interfaces to your GPU, NVMe drives, and peripherals with minimal latency.
Thermal and Hardware Safeguards
Integrated TUF Protection features—including SafeSlot Core, ESD Guards, and Overvoltage Protection—actively monitor and shield sensitive circuits from electrical spikes and mechanical stress.
Key Features
Military-Grade TUF Components
Built with TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for supreme durability and prolonged component lifespan.
Aura Sync RGB Lighting
Onboard RGB headers allow you to synchronize lighting effects across a vast ecosystem of compatible gear, including RGB strips, coolers, and chassis.
Native M.2 Support
Features an onboard M.2 slot supporting up to X4 PCI Express 2.0 bandwidth, enabling data transfer speeds of up to 10Gb/s for rapid OS and game load times.
SafeSlot Core
Fortified PCIe slot featuring a reinforced stainless steel design anchored to the motherboard by specialized soldering hooks to support heavy graphics cards.
Intel Gigabit Ethernet
Equipped with Intel I219-V LAN, which reduces CPU overhead and delivers exceptionally high TCP and UDP throughput for lag-free online gaming.
ESD Guards
Active electrostatic discharge protection circuits guard USB, audio, and LAN ports against sudden static electricity strikes.
Fan Xpert 2+
Comprehensive fan controls ensure every fan achieves the best balance of cooling performance and acoustics via hardware-level PWM/DC detection.
Realtek 8-Channel HD Audio
Immersive gaming audio driven by premium Japanese audio capacitors and an isolated PCB layer design to minimize analog interference.
Power Delivery & VRM Architecture
Engineered for stable core power and thermal endurance
Digi+ VRM Controller
Real-time digital voltage regulation ensures precise power delivery tailored to exact CPU load requirements.
TUF Alloy Chokes
High-grade alloy chokes deliver exceptionally rated current to the CPU zone, mitigating electrical coil whine.
Military-Grade MOSFETs
Low RDS(on) MOSFETs reduce switching losses and run significantly cooler under sustained workloads.
TUF Capacitors
Durable solid capacitors offer a 20% higher temperature endurance and more than double the operational lifespan of standard electrolytic capacitors.
ProCool Power Connector
Solid-pin 8-bit CPU power connector prevents hotspots and connector failure by ensuring flush, low-resistance contact.
Memory Compatibility & Dual-Channel Layout
Maximizing bandwidth with DDR4 architecture
Dual-Channel Architecture
Two DIMM slots support unbuffered non-ECC memory up to 2666MHz natively.
ASUS OptiMem
Careful routing of traces and vias across PCB layers preserves signal integrity and reduces memory jitter.
XMP Profile Support
Easily load pre-tuned Intel Extreme Memory Profiles directly within the UEFI BIOS for instant speed bumps.
Overcurrent Protection
Resettable onboard fuses prevent overcurrent and short-circuit damage to RAM modules during installation.
Expansion & Storage Ecosystem
High-speed lanes for modern GPUs and NVMe drives
SafeSlot Core PCIe 3.0 x16
Reinforced primary graphics slot built to safely carry heavy modern dedicated gaming GPUs without sagging.
PCIe 2.0 x1 Slots
Two additional x1 slots allow for expansion cards such as dedicated Wi-Fi adapters or capture cards.
Native M.2 Slot
Supports 2242/2260/2280 form factor M.2 SSDs running on PCIe 2.0 x4 protocols.
SATA 6Gb/s Ports
Four onboard SATA ports support traditional 2.5-inch SSDs and high-capacity 3.5-inch mechanical hard drives.
Intel Rapid Storage Technology
Enables RAID configurations and rapid caching support for connected SATA storage devices.
Networking & Connectivity
Low-latency wired networking and robust IO
Intel I219-V Gigabit LAN
Enterprise-grade Ethernet controller that communicates directly with Intel processors for high throughput.
LANGuard Protection
Signal-coupling technology and premium surface-mounted capacitors protect the LAN port against lightning strikes and static.
USB 3.1 Gen 1 Ports
Type-A ports on the rear I/O panel deliver transfer speeds up to 5Gb/s for external storage arrays.
Legacy Peripheral Support
Includes dedicated PS/2 keyboard and mouse combination port for legacy hardware enthusiasts.
Audio Subsystem Engineering
Immersive acoustic clarity for gaming and media
Audio Shielding
Dedicated analog/digital separation blocks out electromagnetic interference from neighboring motherboard circuits.
Dedicated Layer Routing
Separate PCB layers for left and right audio channels ensure consistent, crosstalk-free stereo separation.
Premium Audio Capacitors
Japanese-made audio capacitors produce warm, natural, and highly immersive sound signatures.
Realtek ALC887 Codec
Supports high-definition 8-channel audio playback for multi-speaker home theater setups.
BIOS, Cooling & Customization
Intuitive firmware control and aesthetic sync
EZ Mode UEFI BIOS
Clear graphical interface enabling drag-and-drop fan tuning, XMP activation, and boot priority adjustments.
Advanced Mode UEFI
Granular controls for overclocking, voltage adjustments, and detailed hardware monitoring.
Fan Xpert 2+
Advanced fan control software that maps fan speeds automatically based on thermal sensor inputs.
Aura Sync RGB Header
12V RGB header allows connection of standard LED strips controlled via Armoury Crate software.
✓ Pros
- ✓Military-grade TUF components ensure long-term reliability and stability
- ✓Reinforced SafeSlot Core safely houses heavy dedicated graphics cards
- ✓Intel I219-V Gigabit LAN provides dependable, low-latency networking
- ✓Onboard M.2 support accommodates fast NVMe boot drives
- ✓Aura Sync RGB header allows personalized lighting customization
- ✓Comprehensive Fan Xpert 2+ cooling controls for quiet daily operation
- ✓Affordable entry point into the Intel 8th/9th Gen desktop ecosystem
- ✓ESD Guards and TUF LANGuard protect against electrical hazards
✗ Cons
- ✗H310 chipset lacks native USB 3.1 Gen 2 (10Gbps) ports
- ✗Limited to only two DIMM slots supporting a maximum of 32GB RAM
- ✗M.2 slot is restricted to PCIe 2.0 x4 speeds rather than PCIe 3.0
- ✗No built-in Wi-Fi or Bluetooth module out of the box
- ✗Basic VRM heatsink design is not intended for heavy CPU overclocking
Use Cases
Technical Specifications
Asus TUF H310M-Plus Gaming vs. Competitor Boards
| Feature | tufH310mPlusGaming | h310mProVdhPlus | h310mS2h |
|---|---|---|---|
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| Max Memory | 32GB (2 Slots) | 32GB (2 Slots) | 32GB (2 Slots) |
| M.2 NVMe Support | Yes (PCIe 2.0 x4) | No M.2 Slot | Yes (PCIe 2.0 x4) |
| LAN Controller | Intel I219-V | Realtek RTL8111H | Realtek RTL8111H |
| PCIe Slot Armor | SafeSlot Core | Standard Plastic | Standard Plastic |
| RGB Headers | 1 x 12V RGB Header | None | None |
| Audio Capacitors | Premium Japanese Audio Caps | Standard Audio Caps | Standard Audio Caps |
Setup Tips
Update the BIOS for 9th Gen Support
If pairing this board with a 9th Gen Intel processor, ensure you update the BIOS to the latest version before final assembly, or use an 8th Gen CPU to perform the flash.
Populate DIMM Slots Correctly
Since this board has only two DIMM slots, install your RAM sticks firmly into both slots to enable dual-channel memory interleaving for maximum system bandwidth.
Secure Your GPU in the SafeSlot Core
When installing your graphics card, ensure the retention clip on the reinforced PCIe slot clicks firmly into place to guarantee a secure physical and electrical connection.
Install Drivers from Asus Support
Download the latest Intel LAN, chipset, and audio drivers directly from the official Asus support portal rather than relying solely on default generic Windows drivers.
Configure Fan Curves via Fan Xpert
Run the automatic tuning utility in UEFI or Armoury Crate during your first boot to calibrate your chassis fans for optimal acoustic silence.
Frequently Asked Questions
Key Takeaway
The Asus TUF H310M-Plus Gaming is a military-grade micro-ATX motherboard designed for 8th and 9th Generation Intel processors. It combines robust TUF components, SafeSlot Core reinforcement, and Intel Gigabit LAN into an affordable, dependable gaming platform.
