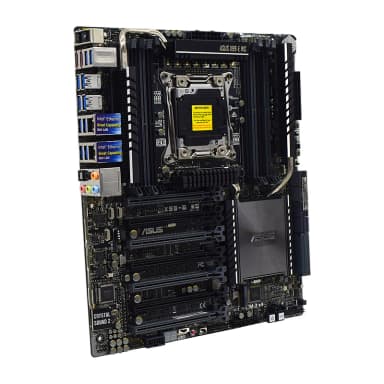

Asus X99-E
The Essential Workstation Gateway to High-End Desktop Computing
Overview
How It Works
Processor and Socket Interface
The LGA 2011-3 socket establishes direct, high-speed communication with multi-core processors, routing up to 40 PCIe lanes straight to expansion and storage controllers.
Quad-Channel Memory Architecture
Eight DDR4 DIMM slots operate in a quad-channel configuration, drastically expanding memory bandwidth to eliminate bottlenecks in memory-intensive professional applications.
High-Speed Expansion and Storage
Integrated M.2 interfaces and robust PCIe 3.0 lanes accommodate ultra-fast NVMe solid-state drives and multi-GPU configurations with minimal latency.
Key Features
LGA 2011-3 Socket Support
Fully compatible with Intel Core i7 Processor Extreme Edition and Xeon E5-2600/1600 v3/v4 processors for massive multi-threaded processing power.
Quad-Channel DDR4 Support
Eight DIMM slots support up to 128GB of non-ECC unbuffered DDR4 memory, heavily optimizing bandwidth for heavy multitasking and professional workflows.
Patent-Pending SafeSlot
Reinforced metal PCIe slots integrated with additional soldering provide stronger retention and shearing resistance for heavy graphics cards.
5-Way Optimization
One-click system-wide tuning delivers optimized overclocking profiles and intelligent cooling for CPU and system fans.
M.2 Onboard Interface
Native PCIe 3.0 x4 M.2 slot supports up to 32Gbps data transfer speeds, allowing lightning-fast OS boot times and application loading.
Crystal Sound 3 Audio
Delivers pristine, studio-grade audio with a physical shielding barrier and premium Japanese audio capacitors for immersive sound.
Intel Gigabit LAN
Features professional-grade Intel Ethernet controllers that reduce CPU overhead and offer exceptionally high TCP and UDP throughput.
USB 3.1 Integration
Built-in Type-A ports deliver data transfer speeds of up to 10Gbps—twice as fast as standard USB 3.0 connections.
Power Delivery and VRM Engineering
Uncompromising stability for extreme multi-core processors
Digital Power Control
DIGI+ VRM digital voltage regulation provides real-time control over voltage droop, switching frequency, and power efficiency.
Premium Component Selection
Utilizes durable alloy chokes and high-grade 10k solid capacitors rated for extreme temperatures and extended lifespans.
Optimized Heatsink Array
Extended aluminum VRM heatsinks maximize surface area to dissipate thermal energy away from critical power MOSFETs.
Overcurrent Protection
Onboard resettable fuses prevent overcurrent and short-circuit damage to protect both the motherboard and connected components.
Memory Architecture and Quad-Channel Scaling
Unleashing massive bandwidth across eight DDR4 slots
Eight DIMM Capacity
Supports up to 128GB of high-density system memory, ideal for video editing, 3D rendering, and virtualization environments.
T-Topology Trace Layout
Balanced memory trace layout minimizes signal reflection and timing errors for enhanced memory overclocking stability.
XMP 2.0 Ready
Simplifies memory configuration by applying pre-tested, high-performance Intel Extreme Memory Profiles directly from the BIOS.
Enhanced Overvoltage Protection
Integrated DRAM overcurrent protection safeguards memory modules against unexpected power surges during extreme tuning.
Expansion and Multi-GPU Capabilities
Built for uncompromising multi-card graphics and co-processor arrays
Multi-GPU Support
Fully supports both 3-Way NVIDIA SLI and AMD CrossFireX configurations for maximum graphics rendering performance.
SafeSlot Technology
Injection-molded PCIe slots reinforced with metal bracing prevent damage from heavy graphics cards during transport or installation.
Flexible Lane Allocation
Accommodates processors with both 40 and 28 PCIe lanes, intelligently scaling slot speeds to match installed hardware.
Generous Spacing
Thoughtful slot layout ensures adequate airflow between multiple dual-slot graphics cards.
Storage Speed and M.2 Connectivity
Eliminating bottlenecks with native PCIe 3.0 x4 NVMe support
Native M.2 Interface
Onboard M.2 socket delivers up to 32Gbps of bandwidth using PCIe 3.0 x4 lanes for ultra-fast NVMe solid-state drives.
SATA Express Support
Backward-compatible SATA Express ports bridge the gap between traditional SATA drives and high-speed PCIe storage.
RAID Configuration Options
Supports RAID 0, 1, 5, and 10 for data redundancy and performance scaling across multiple connected drives.
Intel Rapid Storage Technology
Provides enhanced system responsiveness, faster boot times, and secure data management features.
Networking and Connectivity
Low-latency networking and rapid peripheral transfers
Intel Gigabit Ethernet
Professional-grade network controller reduces CPU overhead while maximizing TCP and UDP throughput for online stability.
LANGuard Protection
Hardware-level signal coupling and ESD-guards protect network ports against lightning strikes and static electricity.
USB 3.1 Type-A Ports
Delivers native 10Gbps transfer speeds for high-speed external storage drives and modern peripherals.
Comprehensive Rear I/O
Features a balanced array of USB 3.0, USB 2.0, and audio jacks to accommodate all workstation peripherals.
Audio Engineering and Crystal Sound 3
Immersive, studio-grade acoustics for creators and gamers
Audio Shielding
Dedicated analog/digital separation blocks out electromagnetic interference to maintain pristine sound clarity.
Japanese Audio Capacitors
Premium Nichicon components deliver warm, natural, and immersive sound reproduction for music and media.
De-pop Circuitry
Reduces startup popping noises in audio outputs when powering the system on or off.
Dedicated Amplifier
Built-in headphone amplifier drives high-impedance studio headphones with exceptional power and clarity.
Cooling and Fan Control Architecture
Intelligent thermal management for sustained heavy loads
Fan Xpert 4 Integration
Auto-tunes fan profiles and detects hardware characteristics for every connected fan with a single click.
Multiple Thermal Sensors
Strategically positioned onboard thermistors monitor critical component temperatures in real time.
PWM/DC Fan Controls
Supports both 4-pin PWM and 3-pin DC fan connections for comprehensive cooling hardware compatibility.
Water Pump Header
Dedicated high-amperage header provides optimal power delivery for custom liquid cooling loops and standalone pump units.
✓ Pros
- ✓Robust LGA 2011-3 socket supports powerful multi-core Core i7 Extreme and Xeon processors
- ✓Quad-channel DDR4 memory architecture supports up to 128GB of RAM
- ✓Reinforced SafeSlot PCIe technology prevents GPU sagging and damage
- ✓Native M.2 NVMe support delivers blazing-fast 32Gbps storage speeds
- ✓Reliable Intel Gigabit LAN equipped with hardware-level LANGuard protection
- ✓Intuitive UEFI BIOS with automated 5-Way Optimization tuning
- ✓High-fidelity Crystal Sound 3 audio with dedicated shielding and headphone amplifier
- ✓Generous selection of high-speed USB 3.1 and USB 3.0 ports
✗ Cons
- ✗LGA 2011-3 platform is legacy architecture with no official upgrade path to newer CPU generations
- ✗Higher power consumption compared to modern mainstream desktop platforms
- ✗Lacks integrated Wi-Fi out of the box, requiring a separate expansion card or USB adapter
- ✗Board size requires a compatible ATX mid-tower or full-tower chassis
Use Cases
Technical Specifications
Asus X99-E vs. Competitor Motherboards
| Feature | x99E | x99Ud4 | x99sSliPlus |
|---|---|---|---|
| Chipset & Socket | Intel X99 / LGA 2011-3 | Intel X99 / LGA 2011-3 | Intel X99 / LGA 2011-3 |
| Memory Slots | 8 DIMM (Up to 128GB) | 8 DIMM (Up to 128GB) | 8 DIMM (Up to 128GB) |
| PCIe Reinforcement | ASUS SafeSlot | Standard PCIe Slots | Steel Armor Slots |
| M.2 Storage Support | PCIe 3.0 x4 (32Gbps) | PCIe 3.0 x4 (32Gbps) | PCIe 3.0 x4 (32Gbps) |
| Networking Controller | Intel I218-V Gigabit LAN | Intel Gigabit LAN | Intel Gigabit LAN |
| Audio Solution | Crystal Sound 3 (ALC1150) | AMP-UP Audio (ALC1150) | Audio Boost 3 (ALC1150) |
Setup Tips
Proper DIMM Population
For optimal quad-channel performance, consult the user manual to populate your DDR4 memory sticks in the correct DIMM slots.
Update the BIOS
If you are installing a Broadwell-E v4 processor, ensure the BIOS is updated to a compatible version before attempting first boot.
Utilize SafeSlot for Heavy GPUs
Install your primary graphics card in the reinforced top PCIe SafeSlot for maximum structural integrity and reliable electrical contact.
Configure Fan Profiles
Run Asus Fan Xpert 4 in the UEFI or AI Suite software immediately after OS installation to map your cooling curves and optimize acoustics.
Frequently Asked Questions
Key Takeaway
The Asus X99-E is a powerful ATX motherboard built around the Intel X99 chipset and LGA 2011-3 socket, designed specifically for high-end Core i7 Extreme and Xeon processors. It features robust quad-channel DDR4 memory support, reinforced SafeSlot PCIe architecture, and native M.2 NVMe storage capabilities. Offering exceptional stability and expandability, it serves as an ideal foundation for demanding professional workstations and enthusiast multi-GPU gaming systems.
