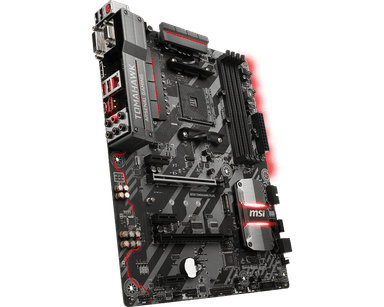

MSI B350 Tomahawk Plus
Armored Military Styling Meets Rock-Solid AM4 Reliability
Overview
How It Works
Power Delivery Regulation
Incoming power from the ATX power supply is refined through a multi-phase Digital VRM architecture, delivering stable voltages directly to the AM4 socket for the CPU and integrated memory controller.
Data and Signal Routing
High-speed traces and PCIe Gen 3 pathways route data between the processor, DDR4 memory slots, and high-bandwidth storage devices like the onboard Turbo M.2 slot with minimal latency.
Thermal and Lighting Control
Onboard PWM fan headers and Mystic Light LED controllers dynamically adjust cooling performance and chassis illumination based on real-time hardware telemetry monitored by the Click BIOS 5 environment.
Key Features
AM4 CPU Support
Full native compatibility with AMD Ryzen 1st and 2nd Generation, A-series, and Athlon processors for socket AM4.
DDR4 Boost
Optimized trace layouts and fully isolated memory circuits deliver maximum frequency stability up to DDR4-3200+(OC).
Steel Armor Slots
Reinforced steel-soldered PCI-E slots prevent physical sagging and protect against electromagnetic interference for heavy graphics cards.
Turbo M.2
Delivers speeds up to 32 Gb/s utilizing PCIe Gen3 x4 bandwidth for ultra-fast NVMe solid-state drives.
GAMING LAN
Powered by the Intel I211-AT gigabit controller, optimized for low-latency online competitive gaming.
Audio Boost
Studio-grade audio processing with an ALC892 audio codec, high-end audio capacitors, and an isolated PCB layout.
Mystic Light Extension
Supports 5050 RGB LED strips and synchronization with other hardware using MSI Mystic Light software.
Military Class 4
Utilizes top-quality components including Dark Cap solid capacitors and titanium choke designs for extreme longevity.
VR Ready
Optimized performance architecture engineered to handle immersive virtual reality hardware without stuttering.
Power Delivery & VRM Design
Robust hardware architecture for sustained stability
Multi-Phase Power Design
Features a robust 4+2 phase VRM configuration that efficiently steps down and regulates voltage for the AM4 CPU socket.
Titanium Chokes
Employs high-durability Titanium Chokes capable of operating at higher temperatures while maintaining superior power efficiency.
Dark Cap Capacitors
Integrated Dark Caps feature a low Equivalent Series Resistance (ESR) design for extended component lifespans.
Extended Heatsinks
Heavy, sculpted aluminum VRM heatsinks maximize surface area to dissipate thermal output away from critical power MOSFETs.
Load-Line Calibration
BIOS-level LLC support prevents voltage droop under heavy CPU loads, ensuring consistent Vcore delivery.
Memory Performance & DDR4 Boost
Unlocking high-speed RAM potential on the AM4 platform
Isolated Circuitry
The DDR4 Boost design completely isolates memory signals from other motherboard components to eliminate electromagnetic interference.
Quad DIMM Support
Accommodates up to 64GB of DDR4 RAM across four dual-channel slots, supporting speeds well beyond standard JEDEC specifications.
A-XMP Profiles
One-click A-XMP profile activation in the BIOS automatically configures certified RAM kits to their advertised speed and latency.
Optimized Trace Routing
A completely redesigned memory layout ensures pure data signals for improved stability at high frequencies.
Extensive QVL
Backed by rigorous validation testing with hundreds of memory kits from major manufacturers like Corsair, G.Skill, and Kingston.
Expansion & Storage Connectivity
High-speed pathways for modern graphics and NVMe drives
Primary Steel Armor PCIe
The top PCIe 3.0 x16 slot is reinforced with steel shielding to safely support massive, heavy modern graphics cards.
Multi-GPU CrossFire
Supports 2-Way AMD CrossFire technology for users looking to combine multiple graphics processors.
Turbo M.2 Slot
Onboard M.2 slot delivers transfer speeds up to 32 Gb/s using PCIe Gen3 x4 and SATA III protocols.
SATA III Ports
Includes six SATA 6Gb/s ports supporting RAID 0, RAID 1, and RAID 10 configurations for traditional storage arrays.
PCIe Gen 2 Slots
Equipped with two PCIe 2.0 x1 slots for dedicated expansion cards like Wi-Fi adapters or sound cards.
Networking & Audio Architecture
Optimized connectivity and immersive acoustic performance
Intel I211-AT Gigabit LAN
Features an Intel network controller renowned for low CPU overhead and stable, high-throughput packet processing.
LAN Protect
Built-in surge protection guards the LAN port against electrostatic discharge and lightning strikes up to 15KV.
Audio Boost 4
Employs an ALC892 high-definition audio codec isolated on a dedicated PCB layer to eliminate electrical noise.
Chemi-Con Audio Capacitors
Uses premium Nippon Chemi-Con audio capacitors for warm, high-fidelity sound reproduction.
De-pop Protection
Eliminates annoying popping noises originating from speakers when powering the system on or off.
BIOS, Cooling & Customization
Intuitive firmware control and aesthetic personalization
Click BIOS 5
An award-winning, high-resolution UEFI BIOS featuring both EZ mode for beginners and Advanced mode for overclockers.
Total Fan Control
Allows users to monitor temperature and set up to 4 temperature targets for CPU and system fans using graphical curves.
Mystic Light RGB
Customize onboard ambient lighting and attached LED strips with millions of colors and multiple visual effects.
EZ Debug LED
Onboard diagnostic LEDs (CPU, DRAM, VGA, BOOT) instantly pinpoint hardware failure points during system POST.
BIOS Flashback+
Facilitates easy firmware recovery and updates directly via USB without needing a CPU or memory installed.
✓ Pros
- ✓Reinforced Steel Armor PCIe slot prevents graphics card sag
- ✓High-speed Turbo M.2 slot supporting 32 Gb/s NVMe SSDs
- ✓Reliable Intel Gigabit LAN controller for lag-free networking
- ✓User-friendly Click BIOS 5 with comprehensive fan control
- ✓EZ Debug LEDs make hardware troubleshooting effortless
- ✓Distinctive military-inspired aesthetic with Mystic Light RGB support
- ✓Solid Military Class 4 components ensure long-term durability
✗ Cons
- ✗B350 chipset lacks native USB 3.1 Gen 2 ports without third-party controllers
- ✗ALC892 audio codec is slightly dated compared to higher-end ALC1220 solutions
- ✗Limited CPU overclocking headroom compared to higher-tier X370 or X470 boards
- ✗Only supports 2-way CrossFire, omitting SLI multi-GPU certification
Use Cases
Technical Specifications
MSI B350 Tomahawk Plus vs. Competitors
| Feature | b350TomahawkPlus | rogStrixB350FGaming | ab350Gaming3 |
|---|---|---|---|
| Form Factor | ATX | ATX | ATX |
| LAN Controller | Intel I211-AT | Intel I211-AT | Realtek GbE LAN |
| Audio Codec | Realtek ALC892 | SupremeFX S1220A | Realtek ALC892 |
| PCIe Steel Armor | Yes (Primary Slot) | Yes (Multiple Slots) | Yes (Primary Slot) |
| M.2 Slots | 1x Turbo M.2 (32 Gb/s) | 2x M.2 Slots | 1x M.2 Slot (16 Gb/s) |
| Diagnostic LEDs | EZ Debug LED | Q-LED | Smart Fan 5 / LED Strip |
Setup Tips
Update the BIOS First
If you are installing a newer generation Ryzen processor, update the BIOS to the latest version before finalizing your hardware configuration.
Enable A-XMP in BIOS
Navigate to the UEFI settings upon first boot and enable A-XMP to ensure your DDR4 RAM runs at its rated high frequency rather than default JEDEC speeds.
Utilize EZ Debug LEDs for Troubleshooting
Pay attention to the onboard diagnostic LEDs if your system fails to post on the first attempt to instantly identify faulty memory or seating issues.
Connect Fans to PWM Headers
Plug your case fans into the designated PWM headers to take full advantage of MSI Total Fan Control curves within the Click BIOS 5 utility.
Frequently Asked Questions
Key Takeaway
The MSI B350 Tomahawk Plus is a durable ATX motherboard built for AMD AM4 processors, featuring military-grade components, reinforced Steel Armor slots, and high-speed Turbo M.2 storage support. Combining reliable Intel Gigabit networking with customizable Mystic Light RGB and intuitive BIOS management, it provides a stable and feature-rich foundation for mainstream gaming rigs.
