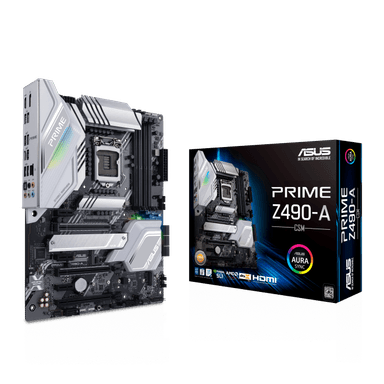

ASUS PRIME Z490-A
Proactive cooling and robust power delivery engineered for 10th Gen Intel Core processors
Overview
How It Works
Power Delivery and Regulation
Incoming power from the PSU is filtered through DrMOS power stages arranged in a robust topology, ensuring clean, high-amperage current is continuously supplied to the CPU under heavy multi-core loads.
Thermal Management and Dissipation
Thermal energy from the VRM and chipset is absorbed by oversized heatsinks with high-surface-area fins, while Fan Xpert 4 dynamically modulates fan headers based on real-time GPU and CPU temperatures.
Signal Integrity and Memory Routing
ASUS OptiMem II trace layout routes memory signals across optimal PCB layers to preserve signal integrity and reduce crosstalk, enabling higher frequency headroom and tighter timings.
Intelligent System Tuning
AI Overclocking and AI Cooling profile the CPU and cooling system automatically, predicting the optimal configuration for your specific silicon and thermal environment within Windows or the UEFI BIOS.
Key Features
Robust Power Design
Utilizes 12+2 DrMOS power stages combined with ProCool II power connectors to ensure maximum power delivery stability for overclocked CPUs.
Optimized Thermal Solution
Equipped with an extended VRM heatsink, M.2 heatsinks, and a dedicated water pump header for comprehensive thermal control.
ASUS OptiMem II
Careful routing of traces and vias across PCB layers preserves signal integrity for enhanced memory overclocking and stability.
Intel 2.5Gb Ethernet
Onboard Intel I225-V 2.5GbE delivers up to 2.5 times the bandwidth of standard gigabit Ethernet for faster file transfers and lag-free gaming.
Dual M.2 Support
Features dual ultra-fast M.2 slots supporting up to 22110 and both PCIe 3.0 x4 and SATA modes for maximum storage flexibility.
AI Overclocking
Intelligently profiles your CPU and cooling system to calculate the ideal configuration for your exact rig setup.
Aura Sync RGB Lighting
Onboard addressable Gen 2 headers allow full customization of RGB lighting synced across a vast ecosystem of compatible hardware.
Pre-mounted I/O Shield
Streamlines the PC building process with a sleek, integrated I/O shield that improves electrostatic discharge protection.
Power Delivery & VRM Architecture
Engineered for clean power and extreme thermal resilience
12+2 DrMOS Power Stages
Combines high-side and low-side MOSFETs and drivers into a single package, reducing switching losses and supplying efficient current.
ProCool II Sockets
Solid pin connectors ensure flush contact with PSU cables, lowering impedance and preventing hot spots or connector failure.
Alloy Chokes and Capacitors
Durable metallic chokes and ultra-long-lifespan capacitors withstand severe electrical and thermal stress during heavy workloads.
Extended VRM Heatsinks
Massive aluminum blocks with deep surface-groove fins dramatically increase thermal dissipation area for the power stages.
Thermal Pad Efficiency
High-conductivity thermal pads bridge the gap between MOSFETs and heatsinks, facilitating rapid heat transfer.
Memory Optimization & OptiMem II
Maximizing frequency and stability for DDR4 kits
OptiMem II Trace Layout
Isolates memory signal paths on dedicated PCB layers to drastically reduce crosstalk and preserve clean signal waveforms.
T-Topology Routing
Balanced trace lengths across all four DIMM slots ensure signal arrival times are synchronized for multi-channel stability.
DDR4 4600MHz+ Support
Extensive overclocking validation allows enthusiasts to push high-bin memory kits well past standard specifications.
XMP 2.0 Integration
One-click profile loading in the UEFI BIOS automatically applies vendor-rated frequencies, voltages, and timings.
ASUS Enhanced Memory Profile
Proprietary firmware enhancement unlocks hidden performance headroom for memory kits lacking official XMP profiles.
Connectivity & Networking
Blazing fast wired networking and high-bandwidth expansion
Intel I225-V 2.5G Ethernet
Provides a massive upgrade over traditional gigabit LAN, cutting down backup times and eliminating network latency bottlenecks.
Turbo LAN Utility
Traffic-shaping software allows users to prioritize gaming packets over background downloads for optimal responsiveness.
M.2 E-Key for Wi-Fi
Includes a dedicated vertical slot compatible with CNVi Wi-Fi modules for easy wireless network integration.
USB 3.2 Gen 2 Type-C
Delivers up to 10Gbps transfer speeds via rear panel ports for ultra-fast external storage arrays.
Front Panel USB 3.2 Gen 2 Connector
Enables high-speed front-panel connectivity for compatible modern PC chassis designs.
Storage & Expansion Capabilities
Dual NVMe slots and PCIe 3.0 architecture for high-speed hardware
Dual PCIe 3.0 x4 M.2 Slots
Supports blazing-fast NVMe SSDs in RAID configurations for maximum read and write bandwidth.
Dedicated M.2 Heatsinks
Cools high-performance NVMe drives to prevent thermal throttling during sustained data transfers.
SafeSlot Architecture
Reinforced metal PCIe slots anchor heavy graphics cards securely to the PCB and prevent shearing damage.
Multi-GPU Support
Supports 2-Way AMD CrossFireX for users requiring multi-GPU compute setups.
Six SATA 6Gb/s Ports
Provides traditional storage connectivity for bulk mechanical hard drives and legacy SATA SSDs.
Audio & Immersive Experience
Crystal-clear acoustic fidelity powered by Realtek codecs
Realtek S1200A Codec
Delivers an unprecedented 108dB signal-to-noise ratio for the stereo line-out and 103dB for line-in.
Audio Shielding
Analog/digital separation blocks electromagnetic interference from other onboard components to preserve sound purity.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensure minimal crosstalk between audio channels.
Premium Japanese Capacitors
Warm, natural, and immersive sound characteristics driven by high-grade audio capacitors.
De-pop Circuitry
Reduces startup popping noises generated when powering the audio subsystem on and off.
Cooling Ecosystem & Fan Control
Comprehensive thermal management for silent and cool operation
AI Cooling
Automatically controls and tunes connected fans via machine learning algorithms based on current system load.
Fan Xpert 4
Provides granular control over every connected fan, allowing custom fan curves and zero-RPM operation.
Dedicated AIO Pump Header
Provides full-speed or PWM control for standalone liquid cooling loops and All-In-One coolers.
Multiple Thermal Sensors
Monitors ambient, VRM, and GPU temperatures to make intelligent cooling adjustments across the chassis.
MOSFET Heatsink Fan Brackets
Optional mounting support for high-airflow fans directly over the VRM heatsink for extreme overclocking.
✓ Pros
- ✓Robust 12+2 DrMOS power delivery handles 10th Gen Core i7 and i9 processors easily
- ✓Clean, professional white-and-silver aesthetic that suits modern clean builds
- ✓Intel 2.5Gb Ethernet provides future-proofed wired networking speeds
- ✓Dual M.2 slots with dedicated thermal heatsinks prevent SSD throttling
- ✓ASUS OptiMem II ensures excellent memory overclocking capability
- ✓User-friendly UEFI BIOS with extensive manual and automated tuning options
- ✓Integrated I/O shield simplifies installation and improves ESD safety
- ✓Aura Sync RGB headers allow vibrant customization across ecosystem parts
✗ Cons
- ✗Lacks native Wi-Fi 6 out of the box (requires separate M.2 E-key module)
- ✗Z490 platform is limited to 10th and 11th Gen CPUs, offering no further upgrade path
- ✗PCIe slots are limited to Gen 3 due to platform restrictions of the chipset
- ✗Premium pricing compared to entry-level Z490 alternatives
Use Cases
Technical Specifications
ASUS PRIME Z490-A vs. Competitor Boards
| Feature | primeZ490A | mpgZ490GamingEdgeWifi | z490AorusElite |
|---|---|---|---|
| Form Factor | ATX | ATX | ATX |
| Power Stages | 12+2 DrMOS | 12+1+1 Duet Rail | 12+1 DrMOS |
| Wired Networking | Intel 2.5G LAN | Realtek 2.5G LAN | Intel 2.5G LAN |
| Wireless LAN | Optional (M.2 E-key slot) | Intel Wi-Fi 6 AX201 | Intel Wi-Fi 6 AX201 |
| M.2 Slots | 2 | 2 | 2 |
| Audio Codec | Realtek S1200A | Realtek ALC1200 | Realtek ALC1200 |
| Aesthetic Theme | White and Silver | Black and Gunmetal | Black and Orange |
Setup Tips
Update the UEFI BIOS
Before installing your operating system, update the BIOS to the latest version to ensure optimal compatibility with 11th Gen CPUs and improve memory stability.
Install NVMe SSDs First
Install your M.2 NVMe drives and secure the heatsinks before mounting large CPU coolers, as clearance can become tight around the primary socket area.
Connect Both CPU Power Plugs
Plug in both the 8-pin and the supplementary 4-pin ATX 12V power connectors from your power supply to unlock full overclocking potential and power stability.
Enable XMP in BIOS
Enter the UEFI BIOS on first boot and activate the XMP profile to ensure your high-speed RAM kit runs at its rated speed instead of the default 2133MHz/2666MHz.
Utilize Fan Xpert for Calibration
Run the Fan Xpert 4 calibration utility in the BIOS or Armoury Crate to map the exact PWM or DC ranges of your case fans for optimal acoustics.
Frequently Asked Questions
Key Takeaway
The ASUS PRIME Z490-A is a feature-rich ATX motherboard built for 10th and 11th Gen Intel Core processors, offering a 12+2 DrMOS power design, robust cooling, and Intel 2.5Gb LAN. Dressed in a striking white-and-silver aesthetic, it delivers exceptional performance, dual M.2 slots, and intuitive AI overclocking capabilities.
