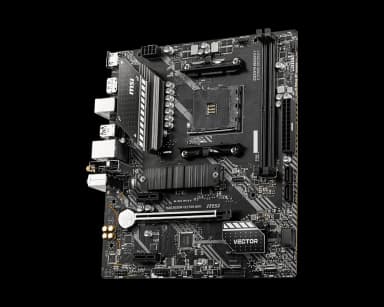

MSI MAG B550M VECTOR WiFi
Armored durability and streamlined performance engineered for the modern micro-ATX enthusiast.
Overview
How It Works
Power Regulation & Delivery
Incoming alternating current from the power supply is stepped down and filtered through a digital PWM controller and paired MOSFET power stages, delivering clean voltage to the AM4 socket.
PCIe & Data Routing
High-bandwidth lanes route directly from the AMD Ryzen processor to the primary PCIe 4.0 x16 slot and M.2 NVMe storage, ensuring minimal latency for graphics and storage.
Networking & Audio Processing
Onboard Wi-Fi 6 and Realtek Gigabit LAN handle wireless and wired packets, while isolated audio capacitors and dedicated ground layers shield sound signals from electromagnetic interference.
Key Features
AMD AM4 Socket Support
Ready for 3rd Gen AMD Ryzen and Ryzen 5000 Series desktop processors, ensuring broad compatibility out of the box.
Lightning Fast PCIe 4.0
Supports PCIe 4.0 for the primary expansion slot and M.2 NVMe SSDs, doubling bandwidth compared to previous generations.
Wi-Fi 6 Connectivity
Built-in Intel Wi-Fi 6 module delivering speeds up to 2.4 Gbps with MU-MIMO support and integrated Bluetooth 5.2.
Extended Heatsink Design
Heavy duty VRM heatsink surface area ensures that high-end processors maintain stable performance under sustained loads.
Core Boost Technology
Combines a premium layout and digital power design to allow precise, unthrottled current delivery directly to the CPU.
DDR4 Boost
Fully isolated memory circuits deliver pure data signals for maximum overclocking stability and frequency support.
Gigabit LAN
Equipped with a Realtek network controller optimized for stable, low-latency wired gaming and file transfers.
Audio Boost
Studio-grade audio processing with high-definition codecs and audio capacitors for immersive gaming soundscapes.
Dragon Center Software
A centralized MSI suite that lets you monitor hardware status, control RGB lighting, and tune system performance.
Power Delivery & VRM Thermal Performance
Engineered for sustained multi-core stability
Digital PWM Controller
Provides precise voltage regulation and fast transient response times during sudden workloads.
Extended VRM Heatsinks
Large surface-area aluminum blocks draw heat away from the power stages to keep operating temperatures low.
Thick Thermal Pads
7W/mK thermal pads bridge the gap between MOSFETs and heatsinks for efficient thermal transfer.
Core Boost Layout
Optimized trace routing ensures zero electrical interference along the power delivery path.
8-Pin Power Connector
Reinforced solid-pin power socket delivers uninterrupted 12V current directly to the CPU power plane.
Memory Architecture & DDR4 Overclocking
Unlocking high-frequency stability for Ryzen memory controllers
Isolated Memory Circuits
DDR4 signals are completely isolated from other components to prevent cross-talk and signal degradation.
A-XMP Support
One-click profile loading in the BIOS for instantly configuring high-speed XMP memory kits.
Optimized Trace Layout
Direct trace paths ensure cleaner signals for high-frequency memory overclocking up to 4400+ MHz (OC).
Dual-Channel Support
Maximizes memory bandwidth across four DIMM slots supporting up to 128GB of total system RAM.
Strict QVL Validation
Tested against hundreds of memory kits from major manufacturers to ensure plug-and-play stability.
Expansion Slots & PCIe Gen 4 Integration
Next-generation connectivity for graphics and high-speed add-in cards
Steel Armor PCIe Slot
Reinforced metal shielding prevents sagging and protects against electromagnetic interference for heavy GPUs.
PCIe 4.0 x16 Primary Slot
Direct processor lanes deliver maximum bandwidth for modern graphics cards without bottlenecks.
PCIe 3.0 x1 Slots
Additional expansion slots powered by the B550 chipset for capture cards, sound cards, and expansion modules.
Surface Mount Technology
Advanced SMT soldering processes reduce defect rates and improve high-frequency signal integrity.
Multi-GPU Capability
Supports AMD CrossFire configurations for multi-card setups where applicable.
Storage Capabilities & M.2 NVMe Performance
Blazing fast boot and load times via Gen 4 storage lanes
Lightning Gen 4 M.2
Primary M.2 slot connects directly to the CPU, unleashing read speeds exceeding 7000 MB/s with compatible NVMe drives.
Gen 3 M.2 Support
Secondary M.2 slot provides additional high-speed storage backed by the B550 chipset.
SATA 6Gb/s Ports
Four onboard SATA ports support RAID 0, RAID 1, and RAID 10 for traditional hard drives and SATA SSDs.
NVMe Boot Support
Instant operating system booting directly from PCIe-based storage drives.
Flexible Storage Zoning
Independent lane assignment ensures M.2 slots do not conflict with primary GPU bandwidth.
Networking & Wireless Connectivity
Cutting-edge Wi-Fi 6 and reliable wired ethernet
Intel Wi-Fi 6 Module
Delivers gigabit-plus wireless speeds with improved efficiency in congested network environments.
Bluetooth 5.2
Offers expanded range, faster transfer rates, and lower power consumption for peripherals and audio devices.
Realtek Gigabit LAN
Stable wired networking optimized through MSI network management software for traffic prioritization.
MU-MIMO Support
Handles multiple simultaneous client connections on compatible routers without dropping packets.
Antenna Mounting Kit
Included magnetic external antenna base allows optimal placement for the strongest wireless signal.
Audio Subsystem & Signal Isolation
Immersive acoustic fidelity for gaming and media consumption
High-Definition Audio Processor
Multi-channel audio codec supporting crystal-clear game sound effects and voice chat.
Audio Capacitors
Premium Japanese capacitors deliver warm, high-fidelity acoustic performance.
Isolated Audio Layers
PCB layer separation prevents analog and digital signals from interfering with one another.
De-pop Shield
Eliminates popping noises when booting up or plugging devices into the audio jacks.
Front Panel Audio Header
Dedicated routing for case headphone and microphone jacks with low electrical noise.
BIOS, Cooling & System Management
User-friendly tools for complete hardware control
Click BIOS 5
UEFI BIOS featuring both EZ Mode for beginners and Advanced Mode for seasoned overclockers.
Frozr AI Cooling
Automatically detects CPU and GPU temperatures to adjust system fan speeds dynamically.
PWM / DC Fan Headers
Dedicated headers for water pumps and case fans with automatic hardware detection.
Flash BIOS Button
Update your BIOS using a USB flash drive without needing a CPU or memory installed.
Hardware Monitor
Real-time tracking of temperatures, voltages, and fan curves directly from the BIOS interface.
✓ Pros
- ✓Integrated Wi-Fi 6 and Bluetooth 5.2 out of the box
- ✓Robust power delivery with extended VRM heatsinks
- ✓PCIe 4.0 support for high-end graphics and M.2 NVMe SSDs
- ✓Reinforced Steel Armor primary PCIe slot
- ✓Handy Flash BIOS button for effortless firmware updates
- ✓Clean micro-ATX form factor ideal for compact builds
- ✓Support for high-frequency DDR4 memory overclocking
✗ Cons
- ✗Limited to micro-ATX expansion space compared to full ATX boards
- ✗Only two M.2 slots available for storage expansion
- ✗Lacks integrated RGB header zone lighting on the board itself
- ✗Realtek Gigabit LAN instead of 2.5G Ethernet
Use Cases
Technical Specifications
B550 Micro-ATX Motherboard Face-Off
| Feature | magB550mVectorWifi | tufGamingB550mPlusWifi | b550mAorusProAx |
|---|---|---|---|
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| Wireless | Intel Wi-Fi 6 | Intel Wi-Fi 6 | AMD / Intel Wi-Fi 6 |
| Ethernet | Realtek Gigabit LAN | Realtek 2.5Gb LAN | Realtek 2.5Gb LAN |
| M.2 Slots | 2 Slots | 2 Slots | 2 Slots |
| BIOS Flashback | Yes (Flash BIOS Button) | Yes (BIOS FlashBack) | Yes (Q-Flash Plus) |
Setup Tips
Update BIOS First
If pairing with a Ryzen 5000 series CPU on an older board revision, use the Flash BIOS button with a USB drive before installing components.
Enable A-XMP Profile
Enter Click BIOS 5 upon your first boot and enable the A-XMP profile to ensure your RAM runs at its advertised speed rather than base JEDEC specs.
Connect Antennas Securely
Attach the included magnetic Wi-Fi antennas to the rear I/O panel before booting up to ensure stable wireless and Bluetooth pairing.
Utilize Primary M.2 Slot
Install your primary operating system SSD in the top M.2 slot closest to the CPU to benefit from full PCIe 4.0 bandwidth.
Frequently Asked Questions
Key Takeaway
The MSI MAG B550M VECTOR WiFi is a feature-rich micro-ATX motherboard built on the AMD B550 chipset, offering robust power delivery, PCIe 4.0 support, and integrated Wi-Fi 6. Designed for enthusiasts seeking compact reliability, it delivers excellent thermal management and high-frequency memory support for AM4 processors.
