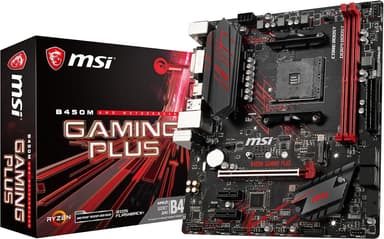

MSI B450M GAMING PLUS
A compact, performance-driven AMD B450 motherboard engineered for stable Ryzen execution and streamlined gaming builds.
Overview
How It Works
Power Distribution and VRM Regulation
Incoming power from the 8-pin EPS connector is managed by digital PWM controllers and discrete MOSFETs, delivering clean voltage directly to the AM4 socket for the CPU and integrated graphics.
Memory Optimization via DDR4 Boost
RAM signals travel through isolated circuitry circuits free from electromagnetic interference, allowing memory frequencies to reach up to 3466+ MHz (OC) with high stability.
Direct PCIe and NVMe Data Routing
Graphics cards communicate via the armored PCIe 3.0 x16 slot directly wired to the CPU, while the Turbo M.2 slot utilizes PCIe Gen3 x4 bandwidth for blistering NVMe storage speeds.
System Management and BIOS Execution
Upon booting, the UEFI BIOS firmware initializes hardware components, applies user-configured performance profiles, and hands control over to the operating system.
Key Features
AM4 Processor Support
Supports 1st, 2nd, and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics processors.
DDR4 Boost Technology
Fully isolated memory circuits deliver pure data signals for optimal gaming performance and stability at overclocked frequencies.
Turbo M.2 Interface
Delivers speeds up to 32 Gb/s using PCIe Gen3 x4, maximizing the performance of modern NVMe solid-state drives.
PCIe Steel Armor
Reinforced steel PCIe slots prevent bending and electromagnetic interference when paired with heavy, high-end graphics cards.
Audio Boost Technology
Isolated audio circuitry with high-grade audio capacitors provides studio-grade sound quality and immersive spatial awareness.
Core Boost Layout
Optimized power layout design and premium digital power delivery support multi-core CPUs while maintaining low operating temperatures.
EZ Debug LED
Onboard troubleshooting LEDs instantly indicate the source of any boot failure, identifying CPU, DRAM, VGA, or BOOT issues.
Click BIOS 5
An award-winning, high-resolution UEFI BIOS featuring scalable fonts, hardware monitor graphs, and easy performance profiling.
Power Delivery & Thermal Design
Engineered for consistent voltage regulation under load
4+2 Phase Power Architecture
Utilizes a reliable 4-phase CPU power design paired with a dedicated 2-phase SoC power delivery system for balanced voltage regulation.
Extended Heatsink Design
Substantial aluminum heatsinks cover the MOSFET arrays to dissipate heat rapidly and maintain lower operating temperatures.
Core Boost Technology
Advanced circuit layout optimization allows for unthrottled current delivery and precise voltage tracking to the processor cores.
8-Pin Power Connector
A reinforced 8-pin ATX 12V power connector ensures adequate amperage is supplied directly to the CPU VRM circuit.
Digital PWM Controller
Precision digital switching provides clean, ripple-free power to sensitive silicon components on the AM4 socket.
Memory Compatibility & DDR4 Boost
Unlocking high-frequency RAM stability on AM4
DDR4 Boost Isolation
Completely isolated memory circuitry prevents external electrical noise from corrupting data signals between the RAM and CPU.
High Frequency Support
Officially supports overclocked memory speeds up to 3466+ MHz for enhanced data throughput.
A-XMP Profile Integration
One-click activation of pre-tuned memory profiles ensures your RAM runs at advertised speeds without manual tweaking.
Dual Channel Architecture
Two DIMM slots support up to 32GB of DDR4 memory in a high-bandwidth dual-channel configuration.
Strict QVL Testing
Extensive validation testing with major memory manufacturers guarantees plug-and-play stability across hundreds of RAM kits.
Expansion & Storage Connectivity
High-speed lanes for modern graphics and NVMe drives
PCIe Steel Armor Slot
Primary PCIe 3.0 x16 slot is fortified with steel shielding and extra solder points to support massive graphics cards safely.
Turbo M.2 Slot
Directly connected to the CPU, delivering up to 32 Gb/s transfer speeds for NVMe solid-state drives.
Four SATA 6Gb/s Ports
Traditional storage connectivity supporting RAID 0, RAID 1, and RAID 10 configurations for mechanical drives and SATA SSDs.
PCIe 2.0 x1 Expansion
Includes two PCIe 2.0 x1 slots for dedicated expansion cards such as capture cards or specialized controllers.
Flexible Storage Modes
Supports both SATA and PCIe storage devices inside the single M.2 slot for maximum hardware versatility.
Networking & Audio Architecture
Immersive sound and reliable wired internet connectivity
Realtek Gigabit LAN
Equipped with a Realtek 8111H Gigabit LAN controller for low-latency, stable online gaming and file transfers.
Audio Boost Shielding
Dedicated audio hardware isolated on a separate PCB layer to prevent analog signal distortion.
High-Grade Audio Capacitors
Premium Japanese audio capacitors provide warm, high-fidelity sound reproduction for headphones and speakers.
De-pop Protection
Built-in circuitry eliminates loud popping noises when powering the system on or off.
Network Bandwidth Management
Compatible with MSI software utilities to prioritize gaming packets over background downloads.
BIOS & System Tuning
Intuitive firmware control for enthusiasts and novices
Click BIOS 5 Interface
High-resolution UEFI featuring EZ Mode for beginners and Advanced Mode for seasoned tweakers.
Hardware Monitor
Real-time graphical tracking of CPU/system temperatures, fan speeds, and voltage levels.
EZ Debug LED Integration
Onboard LED indicators pinpoint hardware failures instantly during the POST phase.
M-Flash Utility
Safely update or backup your BIOS firmware directly from a USB flash drive inside the UEFI interface.
Total Fan Control
Configure custom fan curves based on temperature inputs for optimal acoustic and thermal balance.
✓ Pros
- ✓Affordable AMD B450 chipset entry point
- ✓Reinforced PCIe Steel Armor slot for heavy graphics cards
- ✓Fast Turbo M.2 slot with 32 Gb/s bandwidth
- ✓Reliable DDR4 Boost memory trace isolation
- ✓Handy EZ Debug LEDs for fast troubleshooting
- ✓Compact micro-ATX form factor fits most cases
- ✓Clean and intuitive Click BIOS 5 interface
✗ Cons
- ✗Limited to two DIMM slots (max 32GB RAM)
- ✗Only four SATA 6Gb/s ports available
- ✗Lacks onboard Wi-Fi connectivity out of the box
- ✗Basic VRM configuration not suited for heavy 16-core overclocking
Use Cases
Technical Specifications
MSI B450M GAMING PLUS vs. Competitors
| Feature | b450mGamingPlus | primeB450mA | b450mDs3h |
|---|---|---|---|
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| RAM Slots | 2 DIMMs | 4 DIMMs | 4 DIMMs |
| PCIe Armor | Yes (Steel Armor) | No | No |
| M.2 Slots | 1 (Turbo M.2) | 1 (M.2) | 1 (M.2) |
| Debug LEDs | EZ Debug LED | No | No |
| LAN Controller | Realtek 8111H | Realtek RTL8111H | Realtek GbE LAN |
Setup Tips
Update the BIOS First
If running a 3rd Gen or Ryzen 5000 series CPU, flash the latest BIOS version using M-Flash before installing your operating system.
Enable A-XMP Profile
Enter the Click BIOS 5 utility upon first boot and activate the A-XMP profile to ensure your RAM runs at its rated speed.
Utilize EZ Debug LEDs
Pay attention to the onboard LED indicators during initial POST to quickly identify any memory or graphics card seating issues.
Connect to Primary PCIe Slot
Always install your graphics card into the top PCIe Steel Armor slot to ensure full x16 Gen3 bandwidth.
Frequently Asked Questions
Key Takeaway
The MSI B450M GAMING PLUS is a reliable micro-ATX motherboard built around the AMD B450 chipset, offering robust core power delivery, DDR4 Boost memory isolation, and a reinforced PCIe slot for modern Ryzen gaming setups. Its compact layout, EZ Debug LEDs, and intuitive Click BIOS 5 make it an excellent choice for budget-conscious builders seeking stable performance and straightforward assembly.
