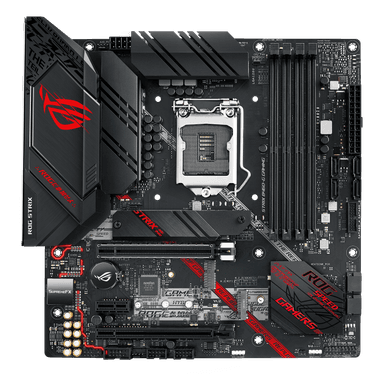

ASUS ROG STRIX B460-G GAMING
Stealthy Micro-ATX Performance for Intel 10th Gen Core Processors
Overview
How It Works
Power Regulation and Conversion
The digital VRM design steps down 12V power from your PSU into clean, precisely regulated voltages required by the Intel Core processor cores and integrated memory controller.
Data Routing via Chipset
The B460 PCH manages PCIe lanes, onboard storage controllers, and USB hubs, routing low-to-mid speed peripheral traffic efficiently to the main CPU bypass.
Memory and PCIe Interconnects
OptiMem design routes trace paths directly through optimal PCB layers to maintain signal integrity for dual-channel DDR4 memory modules operating at up to 2933MHz.
Key Features
Robust Power Delivery
Features a 12+1 power stage configuration paired with high-grade alloy chokes and durable capacitors to ensure sustained stability under load.
Dual M.2 Storage Slots
Includes two M.2 slots supporting up to PCIe 3.0 x4 bandwidth and Intel Optane Memory for lightning-fast boot and load times.
Immersive SupremeFX Audio
Powered by the S1220A codec featuring an integrated amplifier, dual op-amps, and Sonic Studio III for pristine acoustic fidelity.
Aura Sync RGB Lighting
Includes built-in RGB accent lighting on the I/O shroud alongside addressable Gen 2 RGB headers for deep ecosystem customisation.
Intel 1Gb Ethernet
Equipped with Intel I219-V LAN with ROG GameFirst VI traffic prioritization technology for lag-free online competitive gaming.
Pre-mounted I/O Shield
Patented pre-mounted I/O shield finished in matte black provides streamlined installation and enhanced static discharge protection.
Comprehensive Cooling Control
Features dedicated AIO pump headers, PWM fan connectors, and Fan Xpert 4 utility for fine-tuned thermal management.
DIY Friendly Design
Features SafeSlot PCIe reinforcement, Q-LED diagnostic indicators, and FlexKey customizable reset buttons.
VRM and Power Design
Engineered for rock-solid 10th Gen stability
12+1 Power Stages
Combines high-side and low-side MOSFETs and drivers into a single package, delivering clean power to Intel Core i7 and i9 chips.
ProCool Power Connector
Solid pin construction ensures flush contact with PSU power cables, reducing impedance and preventing hot spots.
Alloy Chokes and Capacitors
Military-grade components designed to resist extreme temperature fluctuations and electrical whine under heavy loads.
Extended Heatsink Architecture
Massive VRM heatsinks with high-conductivity thermal pads rapidly dissipate heat away from critical power switching areas.
Memory Architecture and OptiMem
Optimized trace layouts for clean signal transmission
OptiMem Technology
Carefully routed memory traces and vias across PCB layers preserve signal integrity and reduce cross-talk.
Dual-Channel Support
Accommodates up to 128GB of DDR4 memory across four DIMM slots for high-capacity workstation tasks.
2933MHz Speed Cap
Operates at the maximum native frequency permitted by the Intel B460 chipset for Core i7/i9 processors.
XMP Profile Integration
One-click loading of Intel Extreme Memory Profiles for effortless RAM timing configuration in the UEFI BIOS.
Expansion and M.2 Storage Layout
High-speed connectivity for modern peripherals
Reinforced SafeSlot
Metal-shielded primary PCIe 3.0 x16 slot provides structural rigidity to safely support heavy modern graphics cards.
Dual PCIe 3.0 M.2 Slots
Supports standard 2242 through 2280 form-factor NVMe SSDs in RAID configurations for maximum throughput.
Dedicated M.2 Heatsink
Keeps primary NVMe drives operating at optimal temperatures to prevent thermal throttling during massive file transfers.
Additional PCIe Slots
Includes a secondary PCIe 3.0 x16 slot (running at x4 mode) and a PCIe 3.0 x1 slot for expansion cards.
Networking and Connectivity
Intel Ethernet paired with ROG software optimization
Intel I219-V Gigabit LAN
Hardware-level network controller reduces CPU overhead while offering exceptionally high TCP and UDP throughput.
GameFirst VI Utility
Intelligent software suite that prioritizes game packets, optimizes bandwidth allocation, and analyzes network traffic.
LANGuard Protection
Surface-mounted signal coupling technology and premium ESD-guards protect network ports against lightning strikes and static.
M.2 E-Key Slot Ready
Dedicated vertical slot allows users to easily install a CNVi Wi-Fi and Bluetooth module later if wireless connectivity is needed.
Audio Engineering
SupremeFX S1220A codec for studio-grade acoustic clarity
SupremeFX S1220A Codec
Delivers an exceptional 120 dB signal-to-noise ratio for line-out playback and a 113 dB SNR for line-in recording.
Dual Op-Amps
Drives high-impedance headphones with pristine clarity without distortion at high volume levels.
Audio Shielding
Physical analog/digital separation blocks electromagnetic interference from the rest of the motherboard components.
Sonic Studio III Suite
Provides intuitive audio routing, EQ adjustments, and virtual surround-sound presets for immersive gaming sessions.
Aesthetic Customization and Cooling
Cyberpunk styling with comprehensive fan controls
Aura Sync Ecosystem
Synchronize lighting effects across compatible graphics cards, memory kits, and peripheral devices.
Addressable Gen 2 Headers
Detects exact LED counts on second-gen strips, allowing software to auto-tailor lighting patterns.
Dedicated Water Pump Header
Provides full PWM or DC control for high-amperage standalone water cooling loops.
Fan Xpert 4 Control
Auto-tuning fan curves map every fan to the lowest acoustic profile based on live thermal probe readings.
✓ Pros
- ✓Robust 12+1 power stage VRM easily handles locked Core i7 and i9 processors
- ✓Compact micro-ATX form factor fits neatly into space-saving mid-tower chassis
- ✓Dual M.2 slots with a dedicated thermal heatsink for fast NVMe storage
- ✓Premium SupremeFX S1220A audio with integrated headphone amplifier
- ✓Pre-mounted I/O shield simplifies building and protects against static
- ✓Distinctive ROG cyberpunk aesthetic with addressable RGB headers
- ✓Reliable Intel Gigabit LAN backed by GameFirst VI software
✗ Cons
- ✗Chipset limitation restricts RAM speeds to 2933MHz on Core i7/i9 processors
- ✗No native CPU overclocking support due to Intel B460 chipset restrictions
- ✗Lacks built-in Wi-Fi out of the box (requires an M.2 E-key card addition)
- ✗Limited PCIe lane bandwidth compared to high-end Z490 or Z590 motherboards
Use Cases
Technical Specifications
Platform Competitor Comparison
| Feature | rogStrixB460GGaming | magB460mMortar | b460mAorusPro |
|---|---|---|---|
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| VRM Configuration | 12+1 Power Stages | 12+1+1 Duet Rail | 8+2 Power Phases |
| M.2 Slots | 2 Slots with Heatsink | 2 Slots with Heatsink | 2 Slots with Heatsink |
| Audio Codec | SupremeFX S1220A | Realtek ALC1200 | Realtek ALC1200 |
| Ethernet Controller | Intel I219-V 1Gb | Realtek 2.5GbE | Intel GbE LAN |
| Rear USB Type-C | USB 3.2 Gen 2x2 | USB 3.2 Gen 2 | USB 3.2 Gen 1 |
| Aura / RGB Support | Aura Sync + Gen 2 Headers | Mystic Light Sync | RGB Fusion 2.0 |
Setup Tips
Update the UEFI BIOS
Flash the latest BIOS version using a USB stick before installing your operating system to ensure optimal stability and microcode updates.
Enable XMP in BIOS
Enter the UEFI utility on first boot and activate the XMP profile to ensure your RAM runs at its rated speed rather than base JEDEC frequencies.
Utilize the Primary M.2 Slot with Heatsink
Install your primary operating system NVMe SSD in the top M.2 slot beneath the metal heatsink to prevent thermal throttling under heavy loads.
Install Armoury Crate Carefully
Download ASUS Armoury Crate to manage Aura Sync lighting and fan curves, or use standalone utilities if you prefer a lighter system footprint.
Plug into the Correct Fan Headers
Connect your CPU cooler pump to the dedicated AIO pump header and your radiator fans to CPU_FAN for accurate thermal curve tracking.
Frequently Asked Questions
Key Takeaway
The ASUS ROG STRIX B460-G GAMING is a feature-packed micro-ATX motherboard built for Intel 10th Gen processors. It combines a robust 12+1 power stage VRM, dual M.2 slots, and premium SupremeFX audio with stealthy ROG styling. While limited in overclocking and RAM speed by the B460 chipset, it remains an exceptional foundation for high-performance compact gaming rigs.
