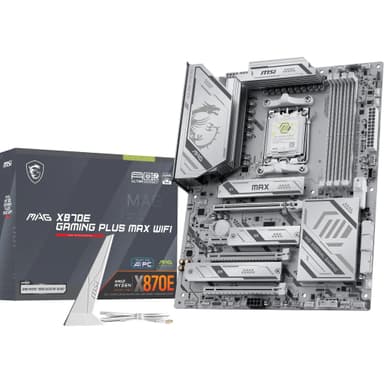

MSI MAG X870E GAMING PLUS MAX WiFi
Unleash Next-Gen Zen 5 Power with Advanced AM5 Architecture and Lightning-Fast Connectivity
Overview
How It Works
Power Delivery and Regulation
Incoming power from the ATX 12V connectors is managed by a high-phase Duet Rail Power System, utilizing smart power stages to deliver clean, stable voltage directly to the AM5 socket under heavy multi-threaded loads.
Data and Signal Routing
High-speed lanes from the CPU route data directly to PCIe 5.0 slots and M.2 NVMe drives, while the integrated X870E dual-chipset architecture expands connectivity for USB4, SATA, and peripheral devices.
Thermal Dissipation
Excess heat generated by VRMs and storage devices is absorbed by extended heatsinks with 7W/mK thermal pads and M.2 Shield Frozr covers, ensuring components remain below thermal throttling thresholds.
Network and Peripheral Coordination
Onboard Wi-Fi 7 and 5G LAN controllers manage high-bandwidth network traffic, while the Realtek audio processor processes studio-grade sound for immersive gaming experiences.
Key Features
AMD X870E Chipset Architecture
Delivers expanded connectivity, dual-chip PCIe lane distribution, and robust support for the latest AM5 processors.
Dual USB4 Type-C Ports
Provides lightning-fast 40Gbps data transfer speeds, daisy-chaining capabilities, and DisplayPort over Type-C output.
Wi-Fi 7 and 5G LAN
Next-generation wireless speeds with Multi-Link Operation (MLO) paired with ultra-fast wired 5 Gigabit Ethernet.
Extended Heatsink Design
Heavy-duty VRM heatsinks equipped with 7W/mK thermal pads maintain optimal thermal performance during sustained loads.
Lightning PCIe 5.0 Slots
Reinforced steel armor slots ready for next-generation graphics cards with double-sided surface mount technology.
M.2 Shield Frozr
Toolless and screwless thermal solutions for high-speed NVMe solid-state drives to prevent performance-draining thermal throttling.
DDR5 Memory Boost
Optimized memory traces and isolated circuit designs deliver pure data signals for maximum overclocking stability.
EZ DIY Features
User-friendly additions like EZ M.2 Shield Frozr, EZ M.2 Clip II, and pre-installed I/O shields simplify the building process.
Audio Boost 5
High-definition audio processor with dedicated audio capacitors and isolated ground layers for pristine sound separation.
VRM Power Delivery and Thermal Architecture
Engineered for sustained heavy workloads and maximum boost stability
Duet Rail Power System
Employs a robust multi-phase design that delivers unthrottled current directly to the CPU socket.
Smart Power Stages
Integrated power stages handle high current thresholds efficiently without requiring excessive active cooling.
Extended Heatsinks
Massive aluminum surface areas pull heat rapidly away from the MOSFET arrays.
High-Conductivity Thermal Pads
Utilizes premium 7W/mK thermal pads to bridge the gap between VRM components and heatsinks.
Doubled Copper PCB
Features 2oz thickened copper layers inside the circuit board to improve thermal dissipation and signal reliability.
Memory Optimization and DDR5 Performance
Pushing frequency boundaries with advanced trace routing
Optimized Trace Layout
Dedicated routing paths prevent signal degradation and maintain data integrity.
AMD EXPO Support
One-click memory profile activation for optimized timings and high-frequency stability.
SMT DDR5 Sockets
Surface-mount technology reduces defect rates, slot wear, and high-frequency electrical noise.
Memory Overclocking headroom
Capable of supporting high-speed kits well beyond baseline JEDEC specifications.
Safe Boot Protection
Automatically resets memory parameters if an aggressive overclocking attempt fails to post.
Next-Generation Connectivity and USB4
Future-proofing your desk setup with ultra-fast peripheral interfaces
40Gbps Bi-Directional Bandwidth
Allows instantaneous file transfers of massive media projects and games.
DisplayPort Alt Mode
Transmits video signals directly from the GPU or integrated graphics through the USB-C port.
Daisy-Chaining Support
Connect multiple compatible devices and monitors in a single serial chain.
Legacy USB Support
Abundant rear and front-panel USB Type-A ports for older peripherals and accessories.
Front Panel Type-C Header
Delivers high-speed USB-C connectivity directly to compatible modern PC chassis front panels.
Expansion Slots and Storage Ecosystem
PCIe 5.0 readiness for next-gen GPUs and lightning-fast NVMe drives
PCIe 5.0 x16 Steel Armor
Reinforced primary graphics slot capable of supporting heavy, high-end GPUs without sagging.
Multiple M.2 NVMe Slots
Includes high-speed PCIe 5.0 and PCIe 4.0 slots for comprehensive storage expansion.
Toolless M.2 Shields
Effortless installation and removal of SSD heatsinks without needing tiny screws.
EZ M.2 Clip II
Secure M.2 drives into place with a simple twist mechanism instead of standard retention screws.
RAID Support
Supports RAID 0, 1, and 10 configurations for both SATA and NVMe storage devices.
Networking Suite: Wi-Fi 7 and 5G LAN
Uncompromised low-latency wired and wireless connectivity
Wi-Fi 7 Integration
Utilizes wider channels and Multi-Link Operation for extreme wireless speeds and responsiveness.
5G LAN Controller
High-bandwidth wired Ethernet connection designed for demanding local networks.
Bluetooth 5.4
Offers improved range, energy efficiency, and audio fidelity for wireless accessories.
LAN Manager
Prioritizes gaming packets over background downloads to reduce in-game latency.
Easy-Attach Antenna
Quick-plug wireless antenna design eliminates tedious screw-on RF connectors.
Audio Engineering and System Customization
Immersive acoustics and comprehensive RGB ecosystem control
Audio Boost 5 Processor
Delivers high-fidelity sound with dedicated hardware capacitors and amplifiers.
De-pop Protection
Eliminates annoying popping noises during system startup and shutdown sequences.
Mystic Light RGB
Onboard addressable RGB headers to synchronize lighting across fans, strips, and components.
Hardware Monitor
Comprehensive fan curves and thermal tracking via the Click BIOS interface.
Flash BIOS Button
Update firmware via a USB thumb drive without needing a CPU or memory installed.
✓ Pros
- ✓Powerful X870E chipset architecture with robust AM5 support
- ✓Dual USB4 Type-C ports supporting 40Gbps transfer speeds
- ✓Next-generation Wi-Fi 7 and 5G LAN for unmatched networking
- ✓Comprehensive thermal design with heavy VRM heatsinks and M.2 shields
- ✓User-friendly EZ DIY features including toolless M.2 clips
- ✓Reinforced PCIe 5.0 Steel Armor slots for heavy graphics cards
- ✓Excellent DDR5 memory overclocking capabilities with EXPO support
- ✓Convenient Flash BIOS button and clear CMOS layout
✗ Cons
- ✗Premium X870E pricing may stretch strict mid-range budgets
- ✗No legacy PS/2 or older display outputs for vintage peripherals
- ✗Board footprint and features exceed the needs of casual office users
- ✗Large pre-installed heatsinks may require careful clearance checks in compact chassis
Use Cases
Technical Specifications
X870E Platform Competitor Comparison
| Feature | magX870eGamingPlusMax | rogStrixX870eEGaming | x870eAorusMaster |
|---|---|---|---|
| Chipset | AMD X870E | AMD X870E | AMD X870E |
| Networking | Wi-Fi 7 + 5G LAN | Wi-Fi 7 + 5G LAN | Wi-Fi 7 + 5G LAN |
| USB4 Ports | 2x USB4 Type-C | 2x USB4 Type-C | 2x USB4 Type-C |
| Memory Max Speed | 8200+ MT/s | 8400+ MT/s | 8200+ MT/s |
| PCIe 5.0 Slots | 1x PCIe 5.0 x16 | 2x PCIe 5.0 x16 | 1x PCIe 5.0 x16 |
Setup Tips
Update the BIOS First
Before installing your operating system, use the Flash BIOS button or enter the UEFI to update to the latest stable firmware for optimal Ryzen 9000 stability.
Enable AMD EXPO Profiles
Navigate to the BIOS memory settings on first boot and activate the EXPO profile to ensure your DDR5 RAM runs at its rated speed rather than baseline JEDEC defaults.
Connect Wi-Fi Antenna Before Booting
Attach the included easy-plug wireless antenna to the rear I/O panel to ensure stable Bluetooth and wireless signal detection during initial Windows setup.
Utilize Primary PCIe 5.0 Slot
Ensure your primary graphics card is installed in the top reinforced Steel Armor slot to guarantee full PCIe 5.0 x16 bandwidth delivery.
Frequently Asked Questions
Key Takeaway
The MSI MAG X870E GAMING PLUS MAX WiFi is a feature-packed AM5 motherboard built around the robust AMD X870E chipset. Offering dual USB4 ports, Wi-Fi 7, 5G LAN, and extensive PCIe 5.0 storage support, it delivers enthusiast-grade performance and future-proof connectivity at a competitive price point.
