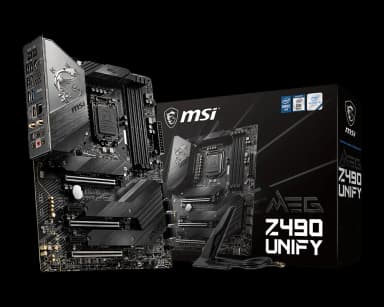

MSI MEG Z490 UNIFY
Pure Performance, No RGB: The Enthusiast's Stealth Powerhouse
Overview
How It Works
Direct Phase Power Regulation
Incoming 12V power from the EPS connectors is managed by an Intersil digital PWM controller and routed directly to 16 CPU phases without doublers, ensuring instantaneous transient response and minimal voltage ripple under extreme loads.
Thermal Dissipation and Heat Pipe Integration
Heat generated by the VRM is absorbed by extended finned aluminum heatsinks connected via a cross-heat pipe, spreading thermal energy across a massive surface area before active or passive case airflow exhausts it.
High-Speed PCIe and NVMe Routing
PCIe lanes from the CPU and chipset are meticulously traced using Steel Armor reinforcement and optimized signal paths to ensure flawless communication with discrete graphics cards and triple NVMe PCIe 3.0 SSDs.
Key Features
16+1 Direct Power Design
Features a 16-phase CPU power supply driven by 90A Smart Power Stages without power doublers, delivering clean, stable voltage for aggressive overclocking.
Triple On-Board M.2 Slots
Equipped with three Turbo M.2 slots supporting up to PCIe 3.0 x4, all covered by dedicated M.2 Shield Frozr heatsinks to maintain optimal SSD performance.
Stealth No-RGB Aesthetic
A completely matte black finish with brushed aluminum accents, catering to users who prefer clean, professional builds without integrated RGB lighting.
Realtek 2.5G LAN
Includes onboard 2.5 Gigabit Ethernet controlled by Realtek, offering faster wired throughput than standard gigabit connections for LAN parties and heavy file servers.
Intel Wi-Fi 6 AX201
Integrated wireless module supporting Wi-Fi 6 (802.11ax) and Bluetooth 5.1, delivering gigabit wireless speeds and improved device density handling.
Audio Boost HD
Powered by the Realtek ALC1220 audio processor with a dedicated headphone amplifier, isolated audio PCB layers, and high-end audio capacitors for studio-grade sound.
Pre-Installed I/O Shield
Features a pre-mounted I/O shielding bracket that streamlines the motherboard installation process and provides cleaner grounding against electromagnetic interference.
Server-Grade PCB Construction
Built on a 6-layer PCB with 2oz thickened copper, enhancing signal integrity, mechanical durability, and long-term structural stability under heavy component weight.
Power Delivery & VRM Architecture
Uncompromising 16+1 Direct Phase Engineering
16+1 Direct Phase Topology
Utilizes a 16-phase CPU core layout paired with a 1-phase GT (integrated graphics) rail, bypassing traditional phase doublers for instantaneous response times.
90A Smart Power Stages
Employs high-current ISL99390 DrMOS chips capable of handling up to 90 amperes per phase, ensuring the VRM barely breaks a sweat under full multi-threaded loads.
Dual 8-Pin Power Connectors
Equipped with two reinforced 8-pin EPS power connectors featuring Solid Pin technology to handle massive electrical current without overheating.
Extended Finned Heatsink Array
Massive aluminum heatsinks feature deep fins and are bridged by a heat pipe to maximize thermal transfer away from the primary MOSFET zones.
7W/mK Thermal Pads
High-conductivity thermal pads bridge the gap between the power stages and the aluminum heatsinks, ensuring efficient heat conduction.
Memory Subsystem & DDR4 Boost
Optimized Trace Layouts for Extreme Frequency Limits
DDR4 Boost Technology
Fully isolated memory circuits ensure pure data signals, eliminating electrical noise and allowing stable operation up to 5000+ MHz (OC).
Dual-Channel Architecture
Supports up to 128GB of non-ECC unbuffered DDR4 memory across four DIMM slots for high-capacity workstation and gaming configurations.
Steel Armor DIMM Slots
Reinforced metal shielding around the memory slots prevents physical board flexing and protects against electromagnetic interference.
A-XMP Profile Support
Pre-configured Intel XMP (Extreme Memory Profile) support makes activating high-speed memory timings a one-click BIOS procedure.
Optimized SMT Routing
Surface Mount Technology (SMT) solder welding reduces defect rates and maintains consistent high-frequency signal integrity.
Storage Capabilities & M.2 Thermal Shielding
Triple Turbo M.2 with Full Shield Frozr Coverage
Triple Turbo M.2 Slots
Three on-board M.2 slots support up to PCIe 3.0 x4 and SATA 6Gb/s drives in lengths up to 22110.
M.2 Shield Frozr Heatsinks
Every M.2 slot comes equipped with a dedicated thermal heatsink to prevent high-speed NVMe drives from thermal throttling during sustained data writes.
Intel Optane Memory Ready
Fully supports Intel Optane technology to accelerate mechanical hard drives and secondary storage arrays.
RAID Support for NVMe
Enables users to configure high-speed NVMe RAID arrays directly through the chipset for extreme read and write speeds.
SATA 6Gb/s Ports
Includes six traditional SATA III ports supporting RAID 0, 1, 5, and 10 for bulk mechanical storage and legacy drives.
Expansion & PCIe Connectivity
Ruggedized Steel Armor Slots for Heavy GPUs
PCIe 3.0 x16 Steel Armor
Three PCIe x16 slots feature Steel Armor reinforcement to safely support massive, heavy graphics cards and prevent solder point cracking.
Multi-GPU Support
Fully supports 2-Way NVIDIA SLI and 3-Way AMD CrossFire technologies for multi-card enthusiast rigs.
PCIe x1 Slots
Two PCIe 3.0 x1 slots are available for expansion cards like dedicated sound cards, capture cards, or specialized controllers.
Direct CPU Lane Allocation
Primary PCIe slots communicate directly with the CPU for lowest possible latency during gaming workloads.
Ample Clearance Design
Thoughtful component placement ensures large graphics cards do not block access to primary SATA ports or M.2 heatsinks.
Networking & Connectivity Suite
Realtek 2.5G LAN and Intel Wi-Fi 6 AX201
Realtek RTL8125B 2.5G LAN
Provides 2.5Gbps Ethernet connectivity, offering 2.5x the bandwidth of standard gigabit connections for modern high-speed home routers and NAS devices.
Intel Wi-Fi 6 AX201 Module
Integrated CNVi wireless module supports 802.11ax Wi-Fi 6 with peak theoretical speeds up to 2.4Gbps.
Bluetooth 5.1 Support
Built-in Bluetooth 5.1 offers extended range, faster pairing speeds, and low-latency audio transmission for peripherals.
LAN Manager QoS
MSI software utility allows users to prioritize gaming network traffic over background downloads and streaming.
Hardware Surge Protection
LAN ports feature built-in ESD protection to guard against electrical spikes and lightning surges.
Audio Hardware & Software Integration
Audio Boost HD with Realtek ALC1220 Codec
Realtek ALC1220 Codec
High-performance 7.1 channel HD audio codec supporting 120dB SNR playback and 113dB SNR recording.
Dedicated Headphone Amplifier
Built-in amp automatically detects headphone impedance and drives studio-grade cans up to 600 ohms.
Chemi-Con Audio Capacitors
Uses premium Japanese audio capacitors to deliver warm, high-fidelity acoustic performance.
Isolated Audio PCB Layer
Analog and digital audio circuitry is physically separated on distinct PCB layers to eliminate background electrical hiss.
Nahimic 3 Audio Enhancements
Software suite offering customizable audio profiles, 3D surround sound virtualization, and sound tracker tools for gaming.
BIOS, Software, & Diagnostics
Click BIOS 5 and Comprehensive Hardware Monitoring
Click BIOS 5 UEFI
Industry-leading graphical UEFI interface offering easy mode for beginners and advanced mode with granular voltage and timing controls.
Hardware Monitor Utility
Real-time tracking of temperatures, fan speeds, and voltages with customizable fan curves for PWM and DC fans.
Flash BIOS Button
Allows users to flash the BIOS using a USB flash drive without installing a CPU or memory, preventing bricking during upgrades.
Clear CMOS & Debug LEDs
Onboard EZ Debug LEDs and a rear Clear CMOS button simplify troubleshooting during failed memory or CPU overclocks.
Dragon Center Software
Centralized MSI management suite for monitoring system metrics, adjusting performance profiles, and updating drivers.
✓ Pros
- ✓Extremely robust 16+1 phase direct power design with 90A power stages
- ✓Clean, professional stealth aesthetic completely free of RGB lighting
- ✓Three dedicated Turbo M.2 slots with full M.2 Shield Frozr heatsinks
- ✓High-speed Realtek 2.5G LAN and Intel Wi-Fi 6 AX201 wireless
- ✓Excellent memory overclocking capability supporting DDR4-5000+ (OC)
- ✓Convenient Flash BIOS button and EZ Debug LEDs for easy troubleshooting
- ✓Reinforced Steel Armor slots for heavy graphics cards and memory sticks
- ✓Premium Audio Boost HD with dedicated headphone amplifier
✗ Cons
- ✗Completely lacks integrated RGB lighting headers (may require external controllers for RGB fans)
- ✗Price point is high for a board lacking PCIe 4.0 support (due to Intel 10th-gen platform limitations)
- ✗No front-panel USB 3.2 Gen 2x2 Type-C header (only rear panel support)
- ✗Realtek LAN drivers can require manual updates for optimal stability on early Windows builds
Use Cases
Technical Specifications
MSI MEG Z490 UNIFY vs. Competitors
| Feature | megZ490Unify | rogMaximusXiiHeroWiFi | z490AorusMaster |
|---|---|---|---|
| VRM Power Stages | 16+1 (90A) | 14+2 (70A) | 14+1 (90A) |
| M.2 Slots | 3x M.2 (All Shielded) | 3x M.2 (All Shielded) | 3x M.2 (All Shielded) |
| Aesthetic / RGB | Stealth Matte Black (No RGB) | RGB Aura Sync Lighting | RGB Fusion 2.0 Lighting |
| Wired Networking | Realtek 2.5G LAN | Intel 2.5G LAN | Intel 2.5G LAN |
| Wireless Networking | Intel Wi-Fi 6 AX201 | Intel Wi-Fi 6 AX201 | Intel Wi-Fi 6 AX201 |
| Form Factor | ATX | ATX | ATX |
Setup Tips
Update the BIOS First
Flash the latest UEFI BIOS version using a USB stick and the Flash BIOS button before installing your operating system to ensure maximum system stability and 11th Gen CPU compatibility.
Connect Both 8-Pin EPS Cables
Plug in both 8-pin CPU power connectors from your power supply into the top left of the motherboard to ensure adequate current delivery during heavy multi-core boosts.
Peel M.2 Shield Thermal Film
Remove the protective plastic film from the thermal pads underneath the M.2 Shield Frozr heatsinks before installing your NVMe SSDs to ensure correct thermal transfer.
Enable XMP in BIOS
Enter the Click BIOS 5 interface upon first boot and activate your memory kit's XMP profile so your RAM runs at its advertised high-speed frequency instead of the default 2133/2666 MHz.
Frequently Asked Questions
Key Takeaway
The MSI MEG Z490 UNIFY is a high-performance enthusiast motherboard built around Intel's LGA 1200 socket and Z490 chipset, featuring an elite 16+1 phase 90A power delivery system. Eschewing RGB lighting for a clean, stealthy matte black aesthetic, it offers exceptional overclocking stability, triple M.2 NVMe slots with dedicated heatsinks, and robust connectivity including Realtek 2.5G LAN and Intel Wi-Fi 6. It stands as a premier choice for gamers and creators seeking flagship capabilities without unnecessary cosmetic flash.
