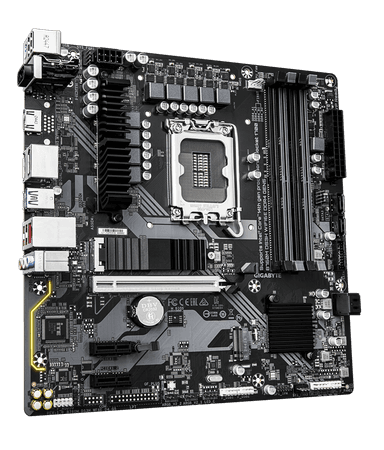

Gigabyte B760 DS3H WIFI6E GEN5
Mainstream Intelligence Meets PCIe 5.0 Future-Proofing for 13th and 14th Gen Intel Core Processors
Overview
How It Works
Power Distribution & Regulation
The hybrid digital VRM design steps down voltage from your power supply cleanly to feed the LGA 1700 processor, keeping core voltages stable under sustained multi-threaded workloads.
High-Speed Signal Routing
Advanced trace routing and PCIe 5.0 lanes ensure that signals traveling between your GPU, M.2 NVMe SSDs, and DDR5 memory experience minimal latency and signal degradation.
Integrated Wireless and Wired Networking
The onboard Intel Wi-Fi 6E module and Realtek 2.5GbE LAN controller process packets dynamically, prioritizing gaming and streaming traffic to eradicate lag.
Key Features
PCIe 5.0 Ready Slot
Equipped with a primary PCIe 5.0 x16 slot, ensuring compatibility with next-generation high-bandwidth graphics cards.
Advanced DDR5 Memory Support
Unlocks high-frequency DDR5 memory overclocking capabilities with XMP profile support for maximum bandwidth.
Intel Wi-Fi 6E Connectivity
Supports the uncluttered 6GHz band for lightning-fast wireless data transfer rates and ultra-low latency.
Realtek 2.5GbE LAN
Provides up to 2.5 GbE network speeds for rapid file transfers and lag-free online competitive gaming.
Dual PCIe 4.0 M.2 Connectors
Features dual thermal-guarded M.2 slots supporting high-speed NVMe solid-state drives.
Smart Fan 6 Cooling Architecture
Comprehensive fan headers and temperature sensors with intuitive software control for optimal thermal management.
Q-Flash Plus Technology
Allows you to update the BIOS easily without installing a CPU, memory, or graphics card.
Solid Pin Power Connectors
Ensures superior contact and electrical conductivity to handle higher current loads safely.
Power Delivery & VRM Design
Robust energy management for sustained multi-core performance
Hybrid Digital VRM
Utilizes a clean power phase design to feed clean, consistent voltage directly to the CPU cores.
Low-RDS(on) MOSFETs
Reduces switching losses and minimizes thermal output during peak computational loads.
Solid Pin Connectors
Provides superior structural integrity and electrical contact compared to hollow-pin alternatives.
Extended Heatsinks
Substantial surface area coverage keeps MOSFET temperatures low during long rendering or gaming sessions.
Memory Architecture & DDR5 Support
Unlocking next-gen bandwidth and speed
Dual-Channel Architecture
Optimizes data throughput across multiple memory sticks for seamless multitasking.
XMP Profile Support
Enables one-click overclocking to manufacturer-rated speeds with fully tested stability profiles.
Shielded Memory Routing
Isolates memory traces from electromagnetic interference to ensure signal purity at high frequencies.
SMT DDR5 Shielding
Surface-mount technology reduces stub length and signal reflection issues on high-frequency modules.
Expansion & PCIe 5.0 Integration
Forward-looking hardware compatibility
PCIe 5.0 x16 Main Slot
Offers double the bandwidth of PCIe 4.0 for upcoming high-performance graphics cards.
Armor-Clad Slot
Reinforced metal shielding prevents sagging and physical damage from heavy modern GPUs.
PCIe 4.0 Secondary Slots
Provides additional expansion pathways for capture cards, sound cards, or high-speed add-in boards.
Latch-Release Mechanism
Features an oversized PCIe latch design for easy graphics card removal in tight enclosures.
Storage Capabilities & Thermal Guards
Blazing fast NVMe storage with robust cooling
Dual PCIe 4.0 M.2 Slots
Supports high-speed NVMe SSDs capable of read/write speeds exceeding 7,000 MB/s.
M.2 Thermal Guards
Integrated heatsinks prevent high-performance SSDs from throttling during massive file transfers.
RAID Support
Allows for NVMe RAID configurations to maximize data redundancy or raw transfer speed.
EZ-Latch M.2
Screwless design makes installing and swapping M.2 solid-state drives completely hassle-free.
Networking & Wireless Performance
Cutting-edge Wi-Fi 6E and ultra-fast wired Ethernet
Intel Wi-Fi 6E Module
Unlocks the uncongested 6GHz spectrum for maximum wireless speeds and minimal packet loss.
Bluetooth 5.3
Provides extended range and lower power consumption for peripherals like controllers and headsets.
Realtek 2.5GbE LAN
Delivers 2.5 times the bandwidth of standard gigabit ethernet for rapid network transfers.
cFosSpeed Bandwidth Management
Software utility that prioritizes game packets to minimize ping in competitive environments.
BIOS, Software, & Ecosystem
User-friendly control panels and system tuning
Smart Fan 6 Utility
Fine-tune fan curves and monitor temperature sensors through a graphical Windows interface.
Q-Flash Plus
Update your BIOS safely using a USB drive without needing a functional CPU installed.
Gigabyte Control Center
Centralized hub for managing RGB lighting, driver updates, and performance tweaks.
Easy Mode BIOS
Simplifies hardware monitoring and XMP profile activation for novice builders.
✓ Pros
- ✓Equipped with a future-proof PCIe 5.0 x16 slot for next-gen graphics cards
- ✓Includes lightning-fast Intel Wi-Fi 6E and Bluetooth 5.3 connectivity
- ✓Features high-speed Realtek 2.5GbE LAN for lag-free gaming
- ✓Supports high-frequency DDR5 memory modules
- ✓Includes dual PCIe 4.0 M.2 slots with dedicated thermal guards
- ✓User-friendly Q-Flash Plus allows BIOS updates without a CPU
- ✓Competitive price point for a feature-rich B760 motherboard
✗ Cons
- ✗No CPU overclocking support (limited by the B760 chipset architecture)
- ✗Limited rear panel USB-C port selection compared to higher-end tiers
- ✗Secondary PCIe slots operate at lower bandwidth speeds
- ✗Basic integrated audio codec lacks high-end audiophile filtering
Use Cases
Technical Specifications
B760 Mainstream Chipset Head-to-Head
| Feature | b760Ds3hWifi6eGen5 | b760mMortarWifi | primeB760mAWifi |
|---|---|---|---|
| PCIe 5.0 Support | Yes (Primary x16 Slot) | No (PCIe 4.0 only) | No (PCIe 4.0 only) |
| Wireless Standard | Wi-Fi 6E (6GHz) | Wi-Fi 6E (6GHz) | Wi-Fi 6 (5GHz only) |
| Ethernet Speed | 2.5 GbE LAN | 2.5 GbE LAN | 2.5 GbE LAN |
| Memory Slots / Max | 4 Slots / 192GB DDR5 | 4 Slots / 192GB DDR5 | 4 Slots / 128GB DDR5 |
| M.2 Storage Slots | 2 Slots (PCIe 4.0) | 2 Slots (PCIe 4.0) | 2 Slots (PCIe 4.0) |
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| BIOS Flashback | Q-Flash Plus | Flash BIOS Button | BIOS FlashBack |
Setup Tips
Update the BIOS First
Use Q-Flash Plus to update your BIOS to the latest revision before installing your CPU and OS to ensure optimal microcode stability for 13th and 14th Gen Intel processors.
Enable XMP in BIOS
Enter the UEFI BIOS on your first boot and enable the XMP profile to ensure your DDR5 memory runs at its advertised high frequency rather than the default JEDEC speed.
Attach Wi-Fi Antennas
Securely screw the magnetic Wi-Fi 6E antenna into the rear panel connectors even if you plan to use wired internet, as it also significantly improves Bluetooth 5.3 signal stability.
Utilize M.2 Thermal Guards
Remember to peel off the protective plastic film from the thermal pad underneath the M.2 heatsinks before screwing down your NVMe drives for proper cooling.
Install Gigabyte Control Center
Download the Gigabyte Control Center upon entering Windows to easily install all necessary LAN, Wi-Fi, audio, and chipset drivers in a single streamlined utility.
Frequently Asked Questions
Key Takeaway
The Gigabyte B760 DS3H WIFI6E GEN5 is a feature-packed mainstream motherboard built for Intel's LGA 1700 platform. It combines future-proof PCIe 5.0 graphics support, rapid DDR5 memory compatibility, and advanced wireless connectivity via Wi-Fi 6E into a reliable micro-ATX design.
