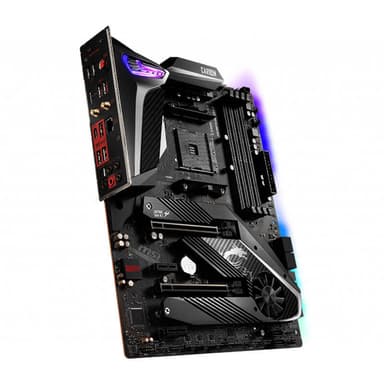

MSI MPG X570 GAMING PRO CARBON WiFi
Unleash Zen-based processors with high-speed PCIe 4.0 throughput, integrated Wi-Fi 6, and carbon-fiber-reinforced aesthetics.
Overview
How It Works
Clean Power Delivery
The system pulls input voltage from dual 8+4 pin EPS power connectors through the 10+2 Duet Rail Power System. Using digital PWM controllers, this design steps down the power into precise, ripple-free voltages for the high-pin-count AMD Ryzen CPU core.
PCIe 4.0 High-Bandwidth Routing
The AMD X570 Chipset coordinates high-frequency lanes to interface directly with the primary PCIe x16 slot and the topmost M.2 NVMe slot, processing data transfers at up to 64 GB/s without bottlenecks.
Active & Passive Thermal Dissipation
Onboard heat is managed actively via the Frozr Heatsink Fan on the chipset, while passive thick aluminum heatsinks and integrated M.2 Shield Frozr thermal pads siphon heat away from the VRM phases and M.2 SSDs.
DDR4 Boost Trace Shielding
System memory signals are protected by DDR4 Boost technology, which isolates memory trace layouts deep within the PCB layers to shield high-frequency RAM signals from electromagnetic interference, supporting speeds up to 4400MHz+.
Key Features
Next-Gen PCIe 4.0 Support
Unlocks double the bandwidth compared to PCIe 3.0, enabling ultra-fast graphic cards and NVMe solid-state storage solutions.
10+2 Duet Rail Power System
Uses a digital IR PWM controller and premium components to guarantee efficient and stable power delivery to high-core-count processors.
Frozr Heatsink Design
Features a patented active fan with double ball bearings and propeller blades, providing maximum cooling for the high-bandwidth X570 chipset.
Intel Wi-Fi 6 AX200
Includes onboard next-generation Wi-Fi 6 wireless tech supporting MU-MIMO and BSS color technology for wireless speeds up to 2.4 Gbps.
Dual M.2 Shield Frozr Heatsinks
Prevents thermal throttling on high-performance NVMe SSDs by utilizing built-in thermal pads on passive metal shielding plates.
Mystic Light RGB Customization
Offers 16.8 million colors and 29 dynamic effects controllable via software, with addressable header options to sync your entire chassis.
Audio Boost 4 with Nahimic 3
Integrates a dedicated ALC1220 audio processor, high-quality Japanese Nippon Chemi-Con capacitors, and physical isolation lines.
Pre-installed I/O Shielding
Simplifies physical motherboard installation and protects sensitive rear-panel connection ports from electrostatic discharge (ESD).
Core Boost and DDR4 Boost
An optimized layout of motherboard circuitry that keeps physical power and data pathways short, improving system stability and overclocking.
VRM and Power Delivery Design
Fueling Multi-Core Ryzen Processors
10+2 Duet Rail Configuration
Provides dedicated voltage regulation to the CPU cores (10 phases) and SoC (2 phases) for sustained system stability.
Dual Power Input Connectors
Utilizes an 8-pin and an auxiliary 4-pin EPS power socket to divide electrical current, preventing extreme cable heating under heavy loads.
Digital IR PWM Controller
Leverages an advanced International Rectifier PWM controller to dictate precise power cycles and microsecond-level voltage adjustments.
Core Boost Power Layout
Combines dual physical power connectors with refined PCB routing to deliver clean, un-throttled power directly to the CPU pin field.
Premium Component Sourcing
Features high-grade Titanium Choke II inductors and 10-year rated solid black capacitors to operate reliably in high ambient chassis temps.
Advanced Thermal Management
Cooling the High-Bandwidth X570 Architecture
Patented Chipset Frozr Fan
Features a heavy-duty fan using double ball bearings and custom propeller blades designed for superior static pressure and quiet airflow.
Zero Frozr AI Automation
An intelligent fan control system that automatically shuts down the chipset fan during idle workloads, achieving absolute silence.
Dual Integrated M.2 Shield Frozr
Two individual passive aluminum heatsinks layered with thermal pads shield high-speed NVMe drives, keeping storage from thermal throttling.
Extended VRM Heatsink
Enlarged metal blocks spanning the VRM components ensure that power components run cool, even when executing intensive render loops.
Six Hybrid Fan Headers
Strategically placed 4-pin headers that auto-detect whether fan control is PWM or DC, configurable in the BIOS hardware monitor.
Next-Gen PCIe 4.0 and Storage
Eliminating Storage Bottlenecks
Dual PCIe 4.0 M.2 Ports
Supports up to two M.2 NVMe solid-state drives simultaneously at Gen4 x4 speeds, pushing transfer velocities beyond 7000 MB/s.
PCIe Steel Armor Protection
The primary graphics card slot is physically reinforced with extra metal soldering points to support heavy modern multi-slot GPUs.
6x Native SATA III Ports
Offers physical ports for high-capacity storage drives and 2.5-inch SATA SSDs, with integrated RAID 0, 1, and 10 support.
PCIe 4.0 Signal Re-drivers
Onboard high-frequency signal re-drivers ensure clean PCIe 4.0 signals travel across the motherboard trace lengths without degradation.
Premium Connectivity and Networking
Ultra-Fast Wireless and Wired Pipelines
Intel Wi-Fi 6 AX200
Incorporates next-generation 802.11ax technology, supporting 2x2 MU-MIMO and a theoretical maximum speed of 2.4 Gbps.
Low-Latency Bluetooth 5.2
Provides native, power-efficient, and highly stable connectivity for modern gaming mice, keyboards, and high-fidelity headsets.
Intel I211-AT Gigabit LAN
Features a hardware-accelerated physical Ethernet port engineered to minimize gaming ping by offloading network stack processing from the CPU.
USB 3.2 Gen 2 Type-C
Includes rear-panel and front-panel Type-C connections operating at 10 Gbps for high-speed external storage docks.
Pre-installed I/O Shield
Comes integrated onto the rear IO panel directly out of the box to prevent accidental alignment errors and streamline system assembly.
High-Fidelity Audio Architecture
Immersive Audio Boost 4 Technology
Realtek ALC1220 Codec
An enthusiast-grade high-definition audio processor boasting a clean 120dB Signal-to-Noise Ratio (SNR) for ultra-clear output.
Nippon Chemi-Con Audio Capacitors
Integrates high-quality Japanese hardware to deliver warmer, more natural sound reproduction across all frequency bands.
Physically Isolated Audio PCB
Maintains separate layers of PCB grounding for left and right audio channels, shielding high-frequency signals from motherboard EMI.
Dedicated Headphone Amplifier
Features auto-impedance sensing up to 600 ohms to power demanding audiophile headphones without requiring external amplification.
Nahimic 3 Integration
Advanced companion software designed to virtualize 7.1 surround sound and suppress background microphone noise during stream sessions.
Enthusiast Diagnostics and Customization
Aesthetics Meet Troubleshooting Utility
EZ Debug LED Array
Onboard LED status indicators quickly point out if the CPU, DRAM, VGA card, or Boot device is causing a POST failure.
Physical Flash BIOS Button
Enables flashing the BIOS using only a USB drive and a connected 24-pin power cable—no CPU, RAM, or GPU required.
Addressable RGB (ARGB) Headers
Features physical headers to connect and synchronize 3-pin 5V ARGB lighting accessories directly inside the MSI Mystic Light ecosystem.
Corsair Dedicated RGB Header
Includes a specialized physical connection port optimized to drive and synchronize Corsair RGB fan hubs and lighting strips natively.
✓ Pros
- ✓Simultaneous dual PCIe 4.0 M.2 slot support with dual integrated Shield Frozr heatsinks
- ✓Built-in premium Intel Wi-Fi 6 (802.11ax) and Bluetooth 5.2 connectivity
- ✓Pre-installed rear I/O shield makes motherboard chassis installation easy and secure
- ✓Flash BIOS Button allows hassle-free firmware updates without a CPU or RAM installed
- ✓Striking, sleek carbon-fiber styling matched with highly customizable Mystic Light RGB
- ✓High-end Realtek ALC1220 audio codec with physical isolation and premium capacitors
- ✓Steel Armor-reinforced PCIe slots prevent physical sag from heavy graphics cards
- ✓Abundant high-speed connectivity options featuring physical USB 3.2 Gen 2 Type-A and Type-C
✗ Cons
- ✗VRM thermal temperatures run warmer than equivalent competing boards under highly aggressive overclocking
- ✗Lacks a 2.5 Gbps Ethernet port, providing only a standard 1 Gbps LAN option
- ✗Active chipset fan introduces a physical mechanical component that could fail or collect dust over time
Use Cases
Technical Specifications
Mid-Tier X570 Motherboard Comparison
| Feature | mpgX570GamingProCarbon | rogStrixX570EGaming | x570AorusProWifi |
|---|---|---|---|
| VRM Phase Layout | 10+2 Duet Rail Phase Design | 12+4 Teamed Power Stages | 12+2 Phase Digital VRM |
| Wireless Standard | Wi-Fi 6 (Intel AX200) | Wi-Fi 6 (Intel AX200) | Wi-Fi 6 (Intel AX200) |
| Wired LAN Speed | 1 Gbps (Intel I211-AT) | Realtek 2.5 Gbps + Intel 1 Gbps (Dual LAN) | 1 Gbps (Intel I211-AT) |
| M.2 Passive Heatsinks | Dual M.2 Shield Frozr Heatsinks | Dual ROG M.2 Heatsinks | Dual Aorus Thermal Guards |
| SATA III Connections | 6x SATA III Ports | 8x SATA III Ports | 6x SATA III Ports |
| Pre-installed I/O Shield | Yes, Integrated | Yes, Integrated | Yes, Integrated |
| RGB Integration | MSI Mystic Light RGB | ASUS Aura Sync | Gigabyte RGB Fusion 2.0 |
Setup Tips
Flash the BIOS First
If pairing with a newer AMD Ryzen 5000 series CPU, download the latest BIOS version onto a FAT32-formatted USB drive, insert it into the marked USB port, and trigger the Flash BIOS Button to update without installing a CPU.
Enable A-XMP in Click BIOS 5
By default, high-speed RAM will boot at basic JEDEC speeds (2133MHz). Enter the BIOS menu during startup and toggle the A-XMP Profile 1 button to instantly apply your memory kit's rated speed and timings.
Tune the Frozr Chipset Fan Profile
To minimize physical noise, access the Hardware Monitor tab in the BIOS and set the Frozr heatsink fan curve to 'Silence Mode' so that it remains completely idle until the chipset reaches 60 degrees Celsius.
Install Native AMD Chipset Drivers
Do not rely strictly on default Windows Update drivers. Download the official AMD X570 Chipset Drivers directly from AMD's website to ensure proper Ryzen Power Plan functionality and stable PCIe 4.0 lane handshakes.
Optimize Audio Settings with Nahimic 3
After installing the motherboard's Realtek audio package, download the Nahimic 3 application from the Microsoft Store to access active equalization, custom headphone sound stages, and microphone noise-filtering features.
Frequently Asked Questions
Key Takeaway
The MSI MPG X570 GAMING PRO CARBON WiFi is a feature-rich ATX motherboard designed to support AMD Ryzen processors with full PCIe 4.0 capability and integrated Wi-Fi 6 wireless connectivity. Built with premium carbon-fiber aesthetics and customizable Mystic Light RGB, it features dual Gen4 M.2 slots with dedicated Shield Frozr heatsinks and a robust 10+2 Duet Rail power delivery system. It offers an excellent foundation for gamers and creative professionals seeking high-bandwidth desktop performance.
