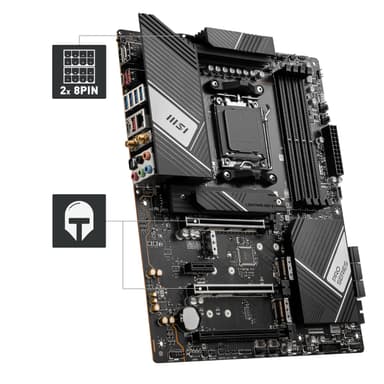

MSI Pro X670-P WiFi
Professional-grade stability, lightning-fast connectivity, and robust power delivery for AMD Ryzen 7000 series processors.
Overview
How It Works
AM5 Socket & Power Delivery
The LGA 1718 socket secures your AMD Ryzen 7000 processor, while the 14+2+1 phase VRM design utilizes Duet Rail Power System architecture to deliver clean, stable current to the CPU cores, integrated graphics, and SoC.
PCIe and M.2 Data Pathways
Lanes from the CPU and X670 chipset distribute high-speed traffic across PCIe 4.0 x16 slots and multiple M.2 NVMe slots, including one PCIe 5.0 x4 slot for blistering SSD transfer speeds.
Memory Training & EXPO
The DDR5 memory circuitry features isolated traces and Memory Boost technology, ensuring clean signal integrity during high-frequency EXPO and XMP profile training loops.
Integrated I/O and Networking
Onboard Realtek 2.5G LAN and AMD Wi-Fi 6E controllers route packets efficiently through hardware-accelerated managers to minimize latency during intensive network tasks.
Key Features
Robust 14+2+1 Power Design
Equipped with dual 8-pin power connectors and a 14+2+1 Duet Rail Power System to fully support flagship Ryzen 9 processors under sustained multi-core workloads.
Lightning Fast PCIe 5.0 M.2
Features an onboard PCIe 5.0 M.2 slot complete with M.2 Shield Frozr, allowing next-generation NVMe drives to achieve maximum read and write speeds.
DDR5 Memory Boost
Optimized trace layouts and isolated memory circuits deliver pure data signals for superior DDR5 overclocking stability up to 7800+ MHz (OC).
Wi-Fi 6E & 2.5G LAN
High-bandwidth wireless connectivity via AMD Wi-Fi 6E supporting the 6GHz band, paired with a high-speed Realtek 2.5 Gigabit Ethernet port.
Extended Heatsink Design
Enlarged surface area cooling with 7W/mK thermal pads keeps VRM temperatures low during prolonged heavy loads.
EZ Debug LED
Onboard troubleshooting LEDs pinpoint issues with the CPU, DRAM, VGA, or Boot device during the power-on self-test (POST) phase.
Pre-installed I/O Shield
Streamlines the PC building process with an integrated, grounded I/O shield that offers enhanced protection against electrostatic discharge.
Lightning USB 20G
Rear USB Type-C port powered by the ASMedia controller delivers up to 20Gbps transfer speeds for external storage arrays.
Power Delivery and VRM Architecture
Engineered for sustained heavy workloads without thermal throttling
14+2+1 Duet Rail Power System
Delivers balanced current distribution directly to the CPU cores using high-quality power stages.
Dual 8-Pin CPU Power Connectors
Provides ample headroom and prevents bottlenecking during high-draw multi-threaded rendering tasks.
Extended Heatsink Architecture
Massive metallic surface area efficiently dissipates heat away from the core MOSFET components.
7W/mK Thermal Pads
High-conductivity thermal pads bridge the gap between the power stages and heatsinks for rapid thermal transfer.
Digital PWM Controller
Ensures precise voltage delivery and instantaneous response to fluctuating power demands.
Memory Performance and DDR5 Support
Unlocking high-frequency stability with advanced trace isolation
Optimized Trace Layout
DDR5 traces are routed through an inner layer stack to eliminate signal distortion and electrical noise.
EXPO & XMP Profile Support
One-click optimization profiles allow users to instantly run memory kits at their rated high speeds.
Enhanced Memory OC Headroom
Supports overclocked memory speeds exceeding 7800+ MHz on compatible kits.
Protected SMT Slots
Surface Mount Technology (SMT) solder welding reduces defect rates and improves high-frequency signal reliability.
Dual-Channel Architecture
Supports up to 192GB of RAM across four DIMM slots for memory-intensive workstation loads.
Expansion and Storage Flexibility
Harnessing PCIe 5.0 and multi-M.2 expandability
PCIe 5.0 x4 M.2 Slot
Direct CPU-attached slot supports ultra-fast Gen 5 NVMe SSDs reaching speeds over 10,000 MB/s.
Quad M.2 Storage Support
Includes a total of four onboard M.2 slots, all equipped with M.2 Shield Frozr heatsinks.
Steel Armor PCIe Slots
Reinforced steel-soldered PCIe x16 slots safely support heavy, triple-slot modern graphics cards.
Multiple PCIe 4.0 Slots
Provides additional expansion slots for capture cards, RAID controllers, or specialized add-in cards.
RAID 0/1/10 Support
Built-in storage configuration options for NVMe and SATA drives to ensure data redundancy or speed.
Networking and Connectivity
Blazing-fast wired and wireless data pipelines
Realtek 2.5G LAN Controller
Delivers high-bandwidth, low-latency wired networking ideal for large file transfers and seamless streaming.
AMD Wi-Fi 6E Module
Supports the uncluttered 6GHz frequency band alongside Bluetooth 5.2 for peripheral pairing.
LAN Manager Software
Prioritizes latency-sensitive application traffic automatically to prevent lag during critical network tasks.
High-Gain Antenna
Includes an adjustable directional antenna to maximize wireless signal reception strength.
Audio Subsystem
Immersive sound powered by Realtek codecs and audio capacitors
Realtek Audio Codec
High-definition audio processor supporting up to 7.1-channel surround sound output.
High-End Audio Capacitors
Delivers warm, high-fidelity sound reproduction with minimal distortion.
Isolated Audio Design
Physical PCB separation lines prevent electrical noise from bleeding into sensitive audio circuits.
De-pop Protection
Suppresses loud popping noises when powering the system on or plugging in headphones.
BIOS, Software, and System Tuning
User-friendly Click BIOS 5 and MSI Center utility suites
Click BIOS 5 Interface
Features an easy-to-navigate graphical UEFI environment with dedicated EZ and Advanced modes.
Hardware Monitor
Real-time tracking of temperatures, voltages, and fan speeds with custom curve adjustments.
MSI Center Integration
All-in-one software suite for system tuning, Mystic Light control, and driver updates.
Flash BIOS Button
Allows firmware updates using a USB drive without needing a CPU or RAM installed.
Frozr AI Cooling
Automatically detects CPU and GPU temperatures to dynamically adjust chassis fan behavior.
✓ Pros
- ✓Robust 14+2+1 power phase design easily handles high-tier Ryzen 7000 CPUs
- ✓Includes PCIe 5.0 M.2 support for ultra-fast next-generation storage drives
- ✓Comprehensive connectivity featuring Wi-Fi 6E and Realtek 2.5G LAN
- ✓Professional, understated aesthetic devoid of flashy gamer styling
- ✓Equipped with Flash BIOS button and EZ Debug LED for painless troubleshooting
- ✓Ample expansion with four total M.2 slots all featuring built-in heatsinks
- ✓Solid DDR5 memory overclocking support with optimized trace routing
- ✓Competitive pricing for an entry-to-mid tier X670 chipset motherboard
✗ Cons
- ✗Lacks PCIe 5.0 support for the main graphics card slot
- ✗Audio codec is standard Realtek rather than high-end ALC4080 or ESS DAC
- ✗Only one USB 20Gbps Type-C port on the rear I/O panel
- ✗No pre-mounted quick-release mechanisms for PCIe or M.2 heatsinks
Use Cases
Technical Specifications
MSI Pro X670-P WiFi vs. Competitors
| Feature | proX670PWifi | primeX670PWifi | x670GamingXAx |
|---|---|---|---|
| VRM Design | 14+2+1 Phase | 14+2+1 Phase | 16+2+2 Phase |
| M.2 Slots | 4 Slots (1x Gen 5) | 3 Slots (1x Gen 5) | 4 Slots (1x Gen 5) |
| Networking | 2.5G LAN + Wi-Fi 6E | 2.5G LAN + Wi-Fi 6 | 2.5G LAN + Wi-Fi 6E |
| Form Factor | ATX | ATX | ATX |
| Rear USB-C (20G) | 1 Port | 1 Port | 1 Port |
| BIOS Flashback | Yes | Yes | Yes |
| Audio Codec | Realtek ALC897 | Realtek ALC897 | Realtek ALC897 |
Setup Tips
Update Your BIOS First
Before installing your operating system, use the Flash BIOS button or enter the UEFI to update to the latest BIOS version for optimal memory compatibility and Ryzen stability.
Enable AMD EXPO
Navigate to the Click BIOS 5 home screen and toggle your RAM profile to EXPO to ensure your DDR5 memory runs at its advertised high frequency rather than default JEDEC speeds.
Connect the Dual 8-Pin Power Plugs
Ensure both 8-pin CPU power cables from your power supply are plugged securely into the top-left of the motherboard to prevent power throttling under heavy multithreaded loads.
Utilize the Gen 5 M.2 Slot Carefully
Install your primary operating system NVMe drive into the top M.2 slot closest to the CPU socket, ensuring you peel off any protective plastic film from the M.2 Shield Frozr thermal pad.
Install MSI Center Selectively
When installing MSI Center in Windows, choose custom installation to select only the monitoring and utility tools you need while omitting bloated optional modules.
Frequently Asked Questions
Key Takeaway
The MSI Pro X670-P WiFi is a robust, feature-packed AM5 motherboard tailored for professionals and enthusiasts seeking reliable performance without breaking the bank. Featuring a strong 14+2+1 power design, DDR5 memory support, PCIe 5.0 M.2 storage, and Wi-Fi 6E, it delivers modern connectivity and stability for AMD Ryzen 7000 processors.
