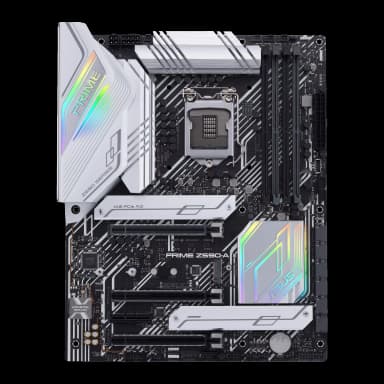

ASUS Prime Z590-A
Advanced tuning, high-speed connectivity, and robust power delivery engineered for 11th Gen Intel Core processors.
Overview
How It Works
Clean Power Delivery
The 14+2 DrMOS power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the clean and efficient voltage demanded by multi-core Intel CPUs.
AI Overclocking and Cooling
Integrated microcontrollers monitor CPU telemetry, thermal performance, and system loads in real time to automatically tune CPU frequencies and fan curves.
High-Speed Data Routing
Optimized trace layouts on the PCB maintain signal integrity across PCIe 4.0 and DDR4 lines, minimizing interference for maximum stability during heavy transfers.
Key Features
Intel LGA 1200 Socket
Ready for 11th Gen Intel Core processors and backward compatible with 10th Gen Intel Core CPUs.
Robust Power Solution
14+2 teamed power stages with ProCool II power connector, high-quality alloy chokes, and durable capacitors.
PCIe 4.0 Ready
Dedicated PCIe 4.0 slots and M.2 slots for lightning-fast graphics cards and NVMe storage devices.
Comprehensive Cooling
Oversized VRM heatsinks, active M.2 heatsink, hybrid fan headers, and Fan Xpert 4 utility.
Intel 2.5 Gb Ethernet
Onboard high-speed wired networking with ASUS LANGuard surge protection for lag-free gaming.
Three M.2 Slots
Flexible storage expansion supporting up to PCIe 4.0 x4 bandwidth configurations.
Advanced Connectivity
Rear USB 3.2 Gen 2x2 Type-C port capable of up to 20Gbps transfer speeds.
Two-Way AI Noise Cancelation
Reduces background noise from the microphone and audio output for crystal-clear communication.
Aura Sync RGB Lighting
Onboard addressable Gen 2 headers and RGB headers for deep aesthetic customization.
VRM and Power Architecture
Engineered for sustained high-wattage delivery
14+2 Teamed Power Stages
Integrates high-side and low-side MOSFETs into single packages to reduce switching losses and thermal stress.
ProCool II Power Connector
Solid-pin construction ensures flush contact with power supply cables, reducing impedance and hot spots.
Alloy Chokes and Capacitors
Military-grade components engineered to resist extreme temperature fluctuations and electrical noise.
Digi+ VRM Controller
Real-time digital voltage regulation provides precise control over power delivery parameters.
Extended VRM Heatsinks
Massive surface area with high-conductivity thermal pads efficiently draws heat away from the MOSFET arrays.
Memory Optimization and OptiMem II
Maximizing DDR4 frequency and stability
OptiMem II Layout
Careful routing of memory traces across optimal PCB layers preserves signal integrity and reduces crosstalk.
Dual-Channel Architecture
Supports non-ECC, unbuffered memory up to 128GB total capacity.
DDR4 OC Support
Capable of achieving memory frequencies exceeding 5333 MHz with compatible high-bin kits.
ASUS Enhanced Memory Profile
AEMPs simplify the application of stability-tested timings on generic memory modules.
Isolated Memory Circuits
Dedicated power isolation zones prevent electrical interference from neighboring components.
Expansion and PCIe 4.0 Integration
High-bandwidth lanes for modern GPUs and add-in cards
Reinforced SafeSlot
Metal-shielded primary PCIe 4.0 x16 slot provides enhanced retention force and shearing resistance for heavy graphics cards.
Multi-GPU Support
Supports AMD CrossFireX technology for multi-card setups.
Flexible Lane Bifurcation
Allows advanced configuration of PCIe lanes for storage expansion cards and high-speed capture hardware.
PCIe 3.0 Chipset Lanes
Additional secondary expansion slots run through the Intel Z590 PCH for peripherals.
Q-Release Mechanism
Simplified physical latching for effortless graphics card removal.
Storage Subsystem and M.2 Layout
Triple M.2 slots for high-speed NVMe arrays
Hyper M.2 Slot
Primary slot supports up to PCIe 4.0 x4 speeds exclusively with 11th Gen Intel CPUs.
Dual PCIe 3.0 M.2 Slots
Additional slots support NVMe and SATA modes for expansive secondary storage.
Dedicated M.2 Heatsinks
Keep high-performance controller chips cool to prevent thermal throttling during massive file transfers.
Intel Rapid Storage Technology
Supports hardware RAID arrays for enhanced performance or data redundancy.
Q-Latch Design
Tool-less installation mechanism for securing M.2 drives without tiny, easy-to-lose screws.
Networking and Connectivity
Wired gigabit speeds and high-speed USB ports
Intel 2.5 Gb Ethernet
Delivers up to 2.5 times the bandwidth of standard gigabit connections for ultra-fast LAN transfers.
USB 3.2 Gen 2x2 Type-C
Provides blazing-fast external data transfers up to 20 Gbps directly from the back panel.
Front Panel USB-C Header
Supports modern PC chassis with front-facing high-speed Type-C ports.
Thunderbolt 4 Header
Onboard pin header allows addition of an optional ASUS Thunderbolt EX card.
LANGuard Protection
Electrostatic discharge and surge-protected LAN ports ensure hardware longevity.
Audio and Intelligent Features
Immersive sound and smart software suites
Realtek S1220A Codec
Features a pristine 120 dB signal-to-noise ratio for stereo line-out and 113 dB for line-in.
Audio Shielding
Analog/digital separation blocks electromagnetic interference to preserve audio clarity.
AI Overclocking
Automatically estimates CPU overclocking and cooling potential to suggest optimal configurations.
AI Cooling
Learns system thermal characteristics to automatically balance fan speeds with acoustic targets.
Armoury Crate
Unified software portal for controlling system lighting, fan profiles, and hardware parameters.
✓ Pros
- ✓Robust 14+2 power stage design easily handles multi-core 11th Gen CPUs
- ✓PCIe 4.0 support for high-end graphics cards and NVMe drives
- ✓Stunning white and silver aesthetic fits modern themed builds
- ✓Tool-less M.2 Q-Latch mechanism simplifies drive installation
- ✓High-speed Intel 2.5 Gb Ethernet and rear USB 3.2 Gen 2x2 Type-C
- ✓Comprehensive AI Overclocking and AI Cooling utilities
- ✓Excellent memory overclocking headroom via OptiMem II
✗ Cons
- ✗Primary M.2 slot is disabled when using a 10th Gen Intel processor
- ✗Lacks integrated Wi-Fi out of the box (requires the Wi-Fi variant for wireless)
- ✗Premium pricing compared to entry-level Z590 boards
- ✗Aura Sync software can occasionally be heavy on system resources
Use Cases
Technical Specifications
ASUS Prime Z590-A vs. Competitor Motherboards
| Feature | primeZ590A | mpgZ590GamingEdgeWifi | z590AorusElite |
|---|---|---|---|
| VRM Power Stages | 14+2 Power Stages | 14+2+1 Power Stages | 12+1 Power Stages |
| Form Factor | ATX | ATX | ATX |
| Memory Max Speed | DDR4 5333+ MHz | DDR4 5333+ MHz | DDR4 5400+ MHz |
| Wired Networking | Intel 2.5 Gb Ethernet | Realtek 2.5 GbE + Wi-Fi 6E | Intel 2.5 GbE |
| M.2 Slots | 3 Slots | 3 Slots | 3 Slots |
| Rear USB-C (20Gbps) | Yes (USB 3.2 Gen 2x2) | Yes (USB 3.2 Gen 2x2) | No |
| Aesthetic Theme | White & Silver | Black & Silver | Black & Gunmetal |
Setup Tips
Install CPU and M.2 Drives First
Mount your CPU and NVMe SSDs while the motherboard is still outside the chassis to make full use of the tool-less Q-Latch system without awkward clearance restrictions.
Update the BIOS
Flash the latest UEFI firmware version via USB BIOS Flashback to ensure optimal system stability and compatibility with modern RAM kits.
Use Dual-Channel DIMM Slots
For optimal memory performance, populate slots DIMM_A2 and DIMM_B2 first as recommended in the user manual.
Install Armoury Crate Sparingly
Only install the necessary modules within Armoury Crate (such as Aura Sync or Fan Xpert) to keep background resource utilization minimal.
Frequently Asked Questions
Key Takeaway
The ASUS Prime Z590-A is a feature-rich ATX motherboard engineered for 11th Gen Intel Core processors, offering a robust 14+2 power stage design, PCIe 4.0 support, and high-speed Intel 2.5 Gb Ethernet. Featuring striking white and silver aesthetics alongside AI-driven overclocking and cooling utilities, it provides a stable and versatile foundation for high-performance gaming and content creation rigs.
