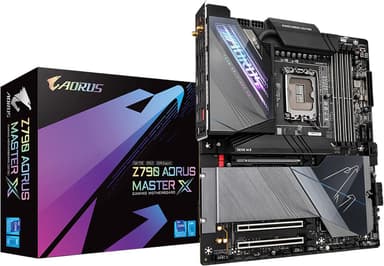

Gigabyte Z790 AORUS MASTER (Rev. 1.0)
The Definitive E-ATX Powerhouse with 10GbE Networking, Gen 5 Storage, and Overkill VRM Power Delivery
Overview
How It Works
Power Conditioning via 105A SPS VRMs
Raw power from the power supply's dual 8-pin EPS connectors enters the digital PWM controller, stepping down smoothly across 20 phases for the VCORE to deliver stable current directly to the LGA 1700 socket.
PCIe Gen 5 Lane Distribution
The motherboard splits the processor's primary 16 PCIe 5.0 lanes; when the PCIe 5.0 M.2 slot is active, it dynamically shifts to an x8/x4 split to feed both the GPU and ultra-fast NVMe storage.
Thermal Dissipation with Fins-Array III
Heat generated by high-draw components is actively transferred through high-conductivity 8 W/mK pads into nano-carbon coated heatsinks, exploiting a multi-layered fin structure to increase surface area by over 1600%.
Signal Integrity for High-Speed DDR5
Shielded daisy-chain routing beneath the PCB surface minimizes electromagnetic interference, allowing XMP profiles to easily scale DDR5 memory clock speeds above 8000 MT/s.
Key Features
20+1+2 Phase Twin Digital VRM
Features massive 105A Smart Power Stages for absolute CPU power stability.
Marvell AQC113C 10GbE LAN
Ultra-fast onboard wired networking that is 10 times faster than standard gigabit Ethernet.
PCIe 5.0 M.2 Slot with Thermal Guard III
Provides lightning-fast Gen 5 storage read/write speeds up to 14,000 MB/s, cooled by a colossal heavy-duty heatsink.
DDR5 Memory Support Up to 8000+ MHz
Advanced SMD DIMM slot design with shielded memory routing to push RAM performance limits.
Fins-Array III VRM Heatsink
Features a nano-carbon coating and a direct-touch heatpipe II for advanced motherboard thermal management.
ESS SABRE ES9118 DAC & ALC1220-VB
Audiophile-grade onboard audio solution with gold capacitors and dedicated operational amplifiers.
Wi-Fi 6E AX211 Connectivity
High-speed wireless networking over the less congested 6GHz spectrum for seamless streaming and gaming.
EZ-Latch Plus Mechanism
Quick-release buttons for M.2 heatsinks and the main PCIe slot, facilitating toolless graphics card and drive installation.
USB 3.2 Gen 2x2 Type-C
High-speed 20 Gbps data transfers available on both the front panel header and the rear I/O.
Power Delivery & VRM Architecture
The Foundation of Overclocking Stability
20 VCORE Phases
Utilizes 105A Smart Power Stages (SPS) to supply up to 2100 amps of continuous power to the CPU.
1 VCCGT Phase
Dedicated 105A power phase for the integrated graphics processing unit.
2 VCCAUX Phases
Provides clean, independent power to the CPU's integrated PCIe and memory controllers.
Tantalum Polymer Capacitors
Positioned directly under the CPU socket to reduce transient response times and voltage ripple under sudden load shifts.
Extreme Thermal Design
Keeping High-Draw Components Chilled
Fins-Array III Heatsink
Features extended fins that massively expand surface area, utilizing nano-carbon coating to radiate heat faster.
Direct-Touch Heatpipe II
An 8mm mega-heatpipe directly contacts the power stages to transfer heat into the cooling stack instantly.
8 W/mK Thermal Pads
Premium thermal pads between power components and heatsinks maximize conductive heat transfer efficiency.
M.2 Thermal Guard III
Extra-large dual-sided thermal pads on the primary M.2 slot to avoid high-temperature thermal throttling on Gen 5 SSDs.
Thermal Backplate
A robust aluminum baseplate strengthens the E-ATX frame while serving as a secondary heatsink for PCB-mounted components.
DDR5 Memory Implementation
Unlocking Extreme Frequency Overhead
Shielded Memory Routing
All memory tracks run underneath the inner PCB layers, isolated by ground layers to block cross-talk.
SMD DIMM Slots
Surface-mounted design minimizes signal noise compared to traditional through-hole DIMM slots.
DDR5 Auto Booster
One-click BIOS feature that automatically elevates native DDR5 5600 modules to 6000+ MHz.
XMP 3.0 Profile Support
Ensures plug-and-play compatibility with certified extreme-speed memory kits up to 8000+ MT/s.
Next-Gen Storage & Expansion Slots
Lightning-Fast PCIe Routing
PCIe 5.0 x16 Steel Armor Slot
Reinforced metal slot engineered to handle ultra-heavy modern graphics cards without bending or cracking.
PCIe 5.0 M.2 Support
One slot wired directly to the CPU provides maximum bandwidth, although it shares lanes with the main GPU slot.
Four PCIe 4.0 M.2 Slots
High-speed secondary storage expansion routes through the Intel Z790 chipset without performance penalties.
EZ-Latch Click & EZ-Latch Plus
L-shaped latches and screwless designs make M.2 installations completely tool-free.
Enterprise-Grade Networking & Audio
Ultra-High Bandwidth and Audiophile Acoustics
Marvell AQC113C 10GbE LAN
Delivers up to 10 Gbps wired network performance, ideal for home labs and NAS creators.
Intel Wi-Fi 6E AX211
Allows access to the clean 6 GHz band, incorporating high-gain smart antennas for solid wireless throughput.
ESS SABRE ES9118 DAC
Provides incredibly clean signal-to-noise ratio (SNR) of 125dB for pristine audio playback.
WIMA & Nichicon Capacitors
Combines premium German WIMA film capacitors and Japanese Nichicon gold capacitors for studio-grade audio output.
✓ Pros
- ✓Overkill 20+1+2 phase VRM effortlessly handles Intel Core i9-13900K and i9-14900K under extreme workloads
- ✓Onboard Marvell AQC113C 10GbE LAN is a major plus for NAS owners and high-speed local networking
- ✓Excellent thermal management using the highly effective Fins-Array III heatsink and thermal backplate
- ✓First-class DDR5 overclocking capabilities extending easily past 8000 MHz (O.C.)
- ✓Toolless design with PCIe EZ-Latch Plus and screw-free M.2 heatsinks simplifies building
- ✓Top-tier audiophile onboard sound with ES9118 DAC and high-grade capacitors
- ✓Rich rear connectivity with 14 USB ports, including multiple USB 3.2 Gen 2x2 Type-C ports
- ✓Solid metal backplate adds excellent physical rigidity and minor back-side cooling benefits
✗ Cons
- ✗E-ATX form factor requires a large computer chassis, reducing case compatibility
- ✗Using the PCIe 5.0 M.2 slot drops the primary PCIe graphics slot to x8 mode due to lane-sharing limitations
- ✗Expensive launch pricing limits its market appeal to premium enthusiast setups
- ✗No integrated HDMI/DisplayPort on the rear I/O, which limits debugging if a discrete GPU fails
Use Cases
Technical Specifications
High-End Z790 Motherboard Comparison
| Feature | z790AorusMasterRev10 | rogMaximusZ790Hero | megZ790Ace |
|---|---|---|---|
| VRM Config | 20+1+2 (105A) | 20+1 (90A) | 24+1+2 (105A) |
| LAN Speed | 10 GbE Marvell | 2.5 GbE Intel | Dual 2.5 GbE Intel |
| Form Factor | E-ATX | ATX | E-ATX |
| PCIe 5.0 M.2 Support | Yes (shares GPU lanes) | Yes (via ROG Hyper Card) | Yes (shares GPU lanes) |
| Rear USB-C Count | 2 Ports | 2 Ports (Thunderbolt 4) | 2 Ports (Thunderbolt 4 support) |
| Audio Hardware | ALC1220-VB + ESS ES9118 | ALC4082 + ESS ES9218 | ALC4082 + ESS ES9280 |
| SATA Ports | 4 Ports | 6 Ports | 6 Ports |
| Wi-Fi Spec | Wi-Fi 6E AX211 | Wi-Fi 6E AX211 | Wi-Fi 6E AX211 |
Setup Tips
Flash the Latest BIOS via Q-Flash Plus
Prior to assembly, load the newest BIOS file onto a FAT32 flash drive, rename it to GIGABYTE.bin, insert it into the designated USB port, and press the Q-Flash Plus button to ensure absolute compatibility with 14th Gen CPUs.
Prioritize Core RAM Slots for High XMP Speeds
To achieve maximum stability at extreme frequencies like DDR5-7200+, ensure you populate the physical A2 and B2 memory slots (slots 2 and 4 from the socket) first.
Manage Gen 5 M.2 Lane Sharing Settings
If you are running a high-end GPU and do not explicitly need 14 GB/s NVMe storage, populate the PCIe 4.0 M.2 slots first to prevent your graphics card from running in PCIe 5.0 x8 mode.
Secure E-ATX Stand-offs
Check that your chassis has all 9 E-ATX stand-offs properly installed. Since the board is slightly wider than a standard ATX layout, ensure no loose chassis screws touch the rear aluminum backplate.
Install Marvell 10GbE LAN Drivers Early
Windows 11 may not have native out-of-the-box drivers for the Marvell AQC113C network controller. Download the driver onto a USB drive before installation to avoid setup hurdles.
Frequently Asked Questions
Key Takeaway
The Gigabyte Z790 AORUS MASTER (Rev. 1.0) is an elite E-ATX motherboard designed for extreme performance seekers running Intel Core processors. Utilizing an unparalleled 20-phase power design and colossal passive heatsinks, it ensures thermal stability under heavy workloads. Its combination of a Marvell 10GbE port, advanced PCIe 5.0 support, and superior DDR5 overclocking capabilities makes it one of the premier foundations for high-end builds.
