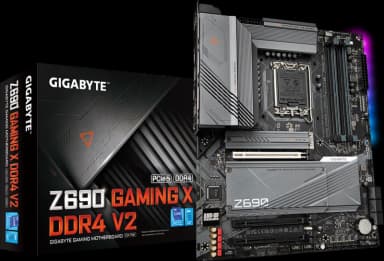

Gigabyte Z690 GAMING X DDR4
Unleash 12th Gen Intel Performance with Robust Power Delivery and DDR4 Value
Overview
How It Works
Power Regulation
The 16+1+2 twin digital power design utilizes 60A DrMOS stages to deliver clean, stable voltage directly to the CPU core, preventing throttling during heavy multi-core workloads.
Signal Integrity & Routing
Optimized memory routing and DDR4 XMP profile support ensure minimal signal attenuation, allowing high-frequency RAM kits to run stably under intense gaming conditions.
Thermal Dissipation
Extended heatsinks coupled with Thermal Guards for all four M.2 slots actively pull heat away from critical components, maintaining optimal operating temperatures during sustained data transfers.
I/O and Expansion Management
The board allocates PCIe 5.0 lanes directly from the CPU for the primary graphics slot, while the Z690 chipset handles a vast array of high-speed storage and peripheral connections.
Key Features
16+1+2 Twin Digital VRM Design
Equipped with 60A DrMOS power stages and tantalum polymer capacitors to ensure absolute stability under heavy overclocking.
DDR4 Memory Support
Supports up to 128GB of dual-channel DDR4 memory with overclocking capabilities exceeding 5333MHz, offering high performance without DDR5 costs.
PCIe 5.0 Ready
Features a reinforced PCIe 5.0 x16 slot ready for next-generation graphics cards with double the bandwidth of PCIe 4.0.
Quad M.2 Connectors
Includes four PCIe 4.0 x4 M.2 slots with dedicated thermal guards to prevent high-speed NVMe thermal throttling.
Advanced Thermal Solution
Features enlarged surface-coverage heatsinks and Smart Fan 6 integration for supreme cooling performance.
2.5GbE LAN
Onboard high-speed 2.5 Gigabit Ethernet networking provides up to 2.5x faster transfer speeds than standard gigabit connections.
Rear USB Type-C
Includes versatile Gen 2x2 Type-C ports on the back panel capable of up to 20Gbps data transfer rates.
Q-Flash Plus
Update the BIOS easily without installing a CPU, memory, or graphics card using a dedicated USB flash drive.
VRM Architecture & Power Delivery
Uncompromising power delivery for high-TDP processors
16+1+2 Phase Configuration
Utilizes a parallel power design that distributes electrical load evenly to lower thermal output and extend component lifespan.
60A DrMOS Stages
Integrates high-current MOSFETs and drivers into a single package to handle heavy transient response spikes effortlessly.
Solid-Pin Connectors
Solid power connector pins offer superior electrical contact and heat dissipation compared to hollow pin designs.
Tantalum Polymer Capacitors
Improves transient response and minimizes ripple noise across the entire frequency spectrum.
Direct Touch Heatsinks
Bolstered by a thick thermal pad to efficiently transfer heat away from the MOSFET array.
Memory Optimization & DDR4 Value
Maximizing frequency and stability with mature memory tech
Daisy-Chain Topology
Optimized trace layout reduces signal reflection and enhances high-frequency overclocking headroom.
XMP 2.0 Support
Easily load pre-tuned memory profiles for instant performance gains without manual sub-timing adjustments.
Shielded Memory Routing
Isolates memory traces from electromagnetic interference (EMI) inside the PCB layers.
Up to 128GB Capacity
Supports four DIMM slots running in dual-channel configuration for massive memory pools.
High Frequency Support
Officially rated to handle speeds up to 5333MHz (O.C.) with compatible high-bin memory kits.
Storage & Expansion Capabilities
Abundant M.2 slots and future-proof PCIe architecture
Quad PCIe 4.0 M.2 Slots
Enables massive high-speed storage arrays without sacrificing bandwidth to secondary lanes.
M.2 Thermal Guards
Includes metal heatsinks for all four slots to prevent high-performance SSDs from throttling.
PCIe 5.0 x16 Slot
Armored with steel reinforcement to safely support heavy modern graphics cards.
EZ-Latch Design
Features a mechanism on the primary PCIe slot for easier graphics card release.
Flexible Lane Allocation
Maintains full x16 speed on the primary graphics slot even when multiple M.2 drives are populated.
Networking & Connectivity
Blazing fast wired networking and modern I/O ports
Intel 2.5GbE LAN
Provides high-speed wired networking with bandwidth management software for gaming prioritization.
USB 3.2 Gen 2x2 Type-C
Delivers up to 20Gbps data transfer speeds through the rear I/O panel.
Front USB Type-C Header
Supports front-panel chassis ports for convenient access to high-speed peripheral connections.
Anti-Sulfur Resistors
Resistor designs treated to resist sulfur compounds in the air, extending board longevity in humid environments.
Pre-mounted I/O Shield
Simplifies PC assembly with an integrated I/O shield that prevents installation errors.
Audio & Ecosystem Control
Immersive acoustics and granular fan management
High-End Audio Capacitors
Audiophile-grade capacitors deliver warm, high-fidelity sound reproduction.
Audio Noise Guard
Dedicated PCB separation shields sensitive analog audio components from digital noise.
Smart Fan 6
Advanced cooling utility featuring multiple temperature sensors and hybrid fan headers.
RGB Fusion 2.0
Comprehensive lighting control for onboard LEDs and external addressable RGB strips.
GCC (Gigabyte Control Center)
Unified software portal for managing drivers, fan curves, and lighting effects in one place.
✓ Pros
- ✓Exceptional 16+1+2 phase power delivery handling high-end CPUs
- ✓Support for cost-effective, high-performance DDR4 memory
- ✓Four total M.2 slots, all equipped with dedicated thermal guards
- ✓Robust 2.5GbE high-speed LAN networking
- ✓PCIe 5.0 ready primary graphics slot with steel armor
- ✓Convenient Q-Flash Plus button for BIOS updates without a CPU
- ✓Comprehensive rear I/O including USB 3.2 Gen 2x2 Type-C
✗ Cons
- ✗Lacks native onboard Wi-Fi (requires the separate Wi-Fi model)
- ✗DDR4 platform limits long-term upgrade path to newer DDR5 modules
- ✗Audio codec is standard rather than high-end enthusiast grade
- ✗No power or reset buttons physically printed on the PCB
Use Cases
Technical Specifications
Gigabyte Z690 GAMING X DDR4 vs Competitors
| Feature | z690GamingXDdr4 | primeZ690PD4 | proZ690ADdr4 |
|---|---|---|---|
| VRM Power Stages | 16+1+2 (60A) | 14+1 (50A) | 14+2+1 (55A) |
| M.2 Slots | 4 Slots (All with Heatsinks) | 3 Slots (Partial Heatsinks) | 4 Slots (Partial Heatsinks) |
| Memory Support | DDR4 up to 5333MHz | DDR4 up to 5333MHz | DDR4 up to 5200MHz |
| Wired LAN | Intel 2.5GbE | Realtek 2.5GbE | Intel 2.5GbE |
| BIOS Flashback | Yes (Q-Flash Plus) | Yes | Yes |
| Form Factor | ATX | ATX | ATX |
Setup Tips
Update the BIOS First
If using a 13th or 14th Gen CPU, use the Q-Flash Plus USB port to flash the latest BIOS before installing your processor and RAM.
Enable XMP in BIOS
Navigate to the BIOS settings on your first boot and enable XMP to ensure your DDR4 memory kit runs at its rated high frequency instead of the default 2133MHz/2666MHz.
Peel M.2 Thermal Pad Films
Ensure you remove the protective plastic film from the thermal pads underneath the M.2 heatsinks before screwing down your NVMe SSDs.
Utilize Smart Fan 6
Download Gigabyte Control Center or configure fan curves directly in the UEFI using Smart Fan 6 to balance acoustic noise and cooling efficiency.
Frequently Asked Questions
Key Takeaway
The Gigabyte Z690 GAMING X DDR4 is a feature-rich enthusiast motherboard designed to extract maximum performance from Intel 12th, 13th, and 14th Gen processors while keeping system costs down with mature DDR4 memory. Featuring a robust 16+1+2 phase power design, quad M.2 slots with thermal guards, and 2.5GbE networking, it delivers high-end capability without a high-end price tag.
