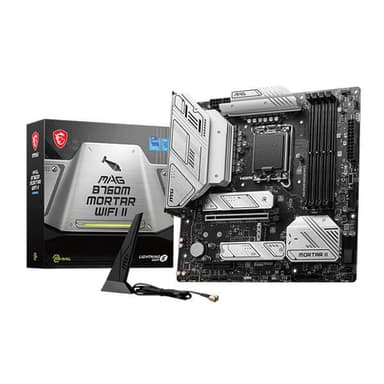

MSI MAG B760M MORTAR WiFi
Industrial-Grade Armor and Unyielding Stability for Elite Micro-ATX Builds
Overview
How It Works
Power Regulation and Delivery
Incoming alternating current is stepped down and regulated by a Duet Rail Power System, utilizing high-current DrMOS stages to feed stable voltages directly to the Intel LGA 1700 processor cores and integrated graphics.
Signal Routing and Memory Training
Optimized SMT (Surface Mount Technology) PCB manufacturing reduces signal degradation and noise, allowing DDR5 memory traces to operate at extreme frequencies through automated Memory Boost training loops.
High-Speed Data Interfacing
The Intel B760 chipset channels high-bandwidth traffic via PCIe 4.0 lanes, directing data simultaneously to dual M.2 NVMe SSDs, a dedicated graphics card in the primary PCIe 5.0/4.0 x16 slot, and multi-gigabit networking interfaces.
Key Features
12+1+1 Duet Rail Power System
Equipped with dual 8-pin CPU power connectors and premium DrMOS power stages to comfortably drive high-end Intel Core i7 and i9 processors.
Optimized DDR5 Support
Unlocks high-frequency memory performance via isolated memory circuits, pushing speeds well beyond standard JEDEC specifications.
Lightning Fast PCIe 4.0 M.2 Slots
Features dual onboard M.2 Shield Frozr heatsinks protecting high-speed PCIe 4.0 NVMe SSDs from thermal throttling.
Extended Heatsink Design
Heavy, extended surface-area heatsinks cover the VRM architecture to maintain maximum cooling efficiency under intense computational stress.
Intel Wi-Fi 6E & 2.5G LAN
Provides cutting-edge wireless speeds across the 6GHz spectrum alongside a wired Realtek 2.5Gbps Ethernet port with LAN Manager.
Lightning PCIe Steel Armor
Reinforced steel-soldered PCIe slots securely anchor heavy modern graphics cards, preventing sag and electromagnetic interference.
Pre-installed I/O Shield
Streamlines the PC building process with an integrated, grounded I/O shield that offers enhanced protection against electrostatic discharge.
EZ Debug LED
Onboard troubleshooting LEDs instantly indicate whether the CPU, DRAM, VGA, or boot device is failing during the POST sequence.
Lightning USB 20G
Features a front-panel USB Type-C (USB 3.2 Gen 2x2) port capable of blazing-fast data transfer speeds up to 20Gbps.
Power Delivery & VRM Architecture
Uncompromising electrical stability for demanding multi-core processors
12+1+1 Duet Rail Design
Delivers clean, direct power to CPU Vcore, GT, and auxiliary rails using high-current components.
DrMOS Power Stages
Integrates high-side and low-side MOSFETs and driver ICs into a single package to reduce switching losses and thermal output.
Extended Heatsinks with 7W/mK Pads
Massive surface-area metal blocks bonded with high-conductivity thermal pads pull heat rapidly away from the VRM components.
Dual 8-Pin Power Connectors
Ensures ample amperage delivery and eliminates voltage drop bottlenecks during heavy power transients.
Core Boost Technology
Optimized circuit layout provides unrestricted, high-speed current delivery to the CPU socket for maximum turbo frequencies.
Memory Performance & DDR5 Optimization
Unlocking extreme bandwidth and low latencies for modern workflows
Surface Mount Technology (SMT)
Advanced SMT welding reduces slot defect rates, electromagnetic interference, and high-frequency signal degradation.
Isolated Memory Circuits
Completely uncoupled trace paths ensure pure data signals flow between the DIMM slots and the processor memory controller.
XMP 3.0 Support
Allows effortless one-click application of factory-tested memory overclocking profiles with optimized sub-timings.
Memory Boost Technology
Dedicated optimized trace layouts guarantee high stability when running aggressive, high-speed dual-channel kits.
DDR5 Capacity Scaling
Supports up to 192GB of system RAM across four DIMM slots, accommodating massive content creation workloads.
Expansion Slots & PCIe Topology
Robust hardware connectivity built for modern graphics and expansion cards
PCIe 4.0 x16 Steel Armor Slot
Primary graphics card slot reinforced with extra solder points and steel shielding to support heavy modern GPUs.
Secondary PCIe Slot
Offers an additional PCIe x16 slot operating at x4 speeds for capture cards, sound cards, or high-speed expansion.
Lane Distribution Optimization
Direct CPU lane allocation for the primary graphics slot guarantees zero latency or bandwidth sharing.
Surface Durability
Rigid slot construction resists physical warping and shear forces during transit and component installation.
Storage Capabilities & M.2 Thermal Guard
Blazing-fast NVMe speeds protected by dedicated cooling armor
Dual PCIe 4.0 x4 M.2 Slots
Provides blistering data transfer speeds up to 64Gbps for lightning-fast operating system and game load times.
M.2 Shield Frozr Heatsinks
Integrated aluminum thermal guards prevent high-performance NVMe drives from thermally throttling under heavy file transfers.
EZ M.2 Clips
Tool-free installation latches allow you to secure or remove M.2 solid-state drives with a simple twist.
Intel Rapid Storage Technology
Supports NVMe RAID configurations for enhanced data redundancy or high-throughput storage pooling.
SATA 6Gbps Ports
Includes four traditional SATA III ports for legacy mechanical hard drives and bulk storage arrays.
Networking & Connectivity Suite
Cutting-edge wireless and wired adapters for zero-lag communication
Intel Wi-Fi 6E Module
Operates on the uncrowded 6GHz frequency band, delivering gigabit wireless speeds with minimal interference.
Bluetooth 5.3 Support
Ensures stable, low-latency pairing for modern wireless peripherals, controllers, and audio headsets.
Realtek 2.5G LAN
High-bandwidth, low-latency wired Ethernet controller ideal for competitive multiplayer gaming and local network transfers.
LAN Manager Utility
Allows users to prioritize gaming network traffic over background downloads and streaming applications.
Audio Subsystem & Acoustic Fidelity
Immersive sound powered by high-end audio capacitors and dedicated processors
Realtek ALC897 Codec
Delivers high-definition 7.1-channel surround sound with exceptional clarity and dynamic range.
Audio Capacitors
High-grade Japanese audio capacitors provide warm, high-fidelity acoustic performance.
Audio Boost Isolation
Physical PCB trace separation shields analog audio signals from digital electromagnetic interference.
De-pop Protection
Eliminates annoying popping noises originating from speakers when powering the system on and off.
Cooling Ecosystem & Thermal Management
Comprehensive fan header control and liquid cooling support
Dedicated Pump Fan Header
Supports up to 3 Amp power output for high-performance all-in-one liquid cooling water pumps.
PWM / DC Fan Auto Detection
Smart fan headers automatically detect connected fan types to apply optimal operational curves.
Total Fan Control
Graphical BIOS and MSI Center utilities allow granular temperature-to-RPM curve customization.
Frozr AI Cooling
Automatically adjusts system fan speeds by monitoring CPU and GPU temperatures in real-time.
✓ Pros
- ✓Sturdy 12+1+1 Duet Rail power delivery with robust DrMOS components
- ✓High-speed DDR5 memory support with excellent overclocking headroom
- ✓Dual PCIe 4.0 M.2 slots equipped with dedicated M.2 Shield Frozr heatsinks
- ✓Advanced connectivity featuring Intel Wi-Fi 6E and Realtek 2.5G LAN
- ✓Reinforced Steel Armor primary PCIe slot prevents GPU sag
- ✓Convenient EZ Debug LEDs simplify troubleshooting during initial boot
- ✓Clean, industrial gunmetal aesthetic that fits seamlessly into black-themed builds
- ✓Generous rear and front panel I/O, including USB 3.2 Gen 2x2 Type-C
✗ Cons
- ✗B760 chipset does not support CPU multiplier overclocking
- ✗Micro-ATX form factor offers fewer expansion slots than standard full-size ATX boards
- ✗Audio codec is standard (ALC897) rather than top-tier audiophile grade (ALC1220)
- ✗Secondary M.2 slot shares bandwidth considerations under certain configurations
Use Cases
Technical Specifications
B760M Motherboard Battle: MSI MORTAR vs. Competitors
| Feature | magB760mMortarWifi | tufGamingB760mPlusWifi | b760mAorusEliteAx |
|---|---|---|---|
| VRM Power Stage | 12+1+1 DrMOS | 12+1 DrMOS | 12+1+1 DrMOS |
| Memory Speed (OC) | 7800+ MHz | 7200+ MHz | 7600+ MHz |
| Wireless Networking | Intel Wi-Fi 6E | Intel Wi-Fi 6 | Intel Wi-Fi 6E |
| Wired Ethernet | Realtek 2.5G | Realtek 2.5G | Realtek 2.5G |
| M.2 Storage Slots | 2x PCIe 4.0 | 2x PCIe 4.0 | 2x PCIe 4.0 |
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
Setup Tips
Update the BIOS First
Before installing Windows, use the rear Flash BIOS button to update to the latest firmware version to ensure optimal microcode stability and maximum DDR5 memory compatibility.
Enable XMP in BIOS
Navigate to the UEFI BIOS screen and activate XMP 3.0 to ensure your DDR5 RAM runs at its advertised high frequency rather than default JEDEC speeds.
Attach Wi-Fi Antennas Securely
Screw the included magnetic antenna cables into the rear I/O ports before booting up to ensure stable wireless network discovery during Windows setup.
Remove M.2 Thermal Film
Remember to peel off the protective plastic film from the thermal pads underneath the M.2 Shield Frozr heatsinks before mounting your NVMe SSDs.
Frequently Asked Questions
Key Takeaway
The MSI MAG B760M MORTAR WiFi is a premier Micro-ATX motherboard built on the Intel LGA 1700 socket, offering robust 12+1+1 power delivery, high-speed DDR5 support, and advanced PCIe 4.0 storage capabilities. Featuring integrated Intel Wi-Fi 6E, 2.5G LAN, and heavy thermal armor, it delivers exceptional reliability and performance for modern gaming and productivity rigs.
