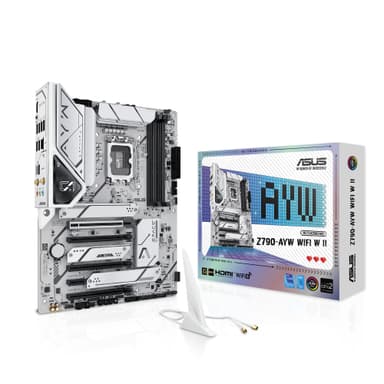

ASUS Z790-AYW WiFi W
Clean White Aesthetics and Rock-Solid Z790 Performance for Modern Intel Builds
Overview
How It Works
Power Distribution & Regulation
Incoming 12V power from the ATX power supply is routed through a high-efficiency DrMOS power stage configuration, dropping voltage smoothly to feed clean current to the CPU VCORE and integrated graphics.
High-Speed Data Routing
PCIe lanes and memory traces are optimized using OptiMem II layout routing, ensuring minimal signal attenuation and maximum bandwidth for dedicated GPUs and NVMe M.2 storage drives.
Thermal Management & Monitoring
Onboard thermistor headers and smart fan controllers continuously monitor system temperatures, dynamically adjusting fan curves via Fan Xpert 4 to maintain acoustic and thermal equilibrium.
Key Features
Intel LGA 1700 Socket
Fully compatible with 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors.
DDR5 Memory Support
Unlocks high-frequency memory kits with ASUS Enhanced Memory Profile (AEMP) for stable, high-bandwidth overclocking.
White Aesthetic Design
Striking white PCB accents, silver-white heatsinks, and clean styling designed specifically for all-white PC builds.
PCIe 5.0 Ready
Equipped with a reinforced PCIe 5.0 x16 SafeSlot to support the heaviest next-generation graphics cards.
Triple M.2 Slots
Features multiple high-speed PCIe 4.0 M.2 slots with dedicated thermal coverage for blistering fast storage arrays.
WiFi 6E Connectivity
Integrated wireless module supporting the uncongested 6GHz band for ultra-fast, low-latency wireless networking.
Realtek 2.5Gb Ethernet
High-speed wired networking capable of handling heavy local file transfers and lag-free competitive gaming.
Comprehensive Cooling Controls
Advanced fan headers, AIO pump headers, and intelligent thermal management via Armoury Crate.
Front Panel USB Type-C
Convenient high-speed USB Type-C front panel connector supporting rapid data transfer speeds.
Power Delivery & VRM Architecture
Engineered for sustained multi-core boost frequencies
Robust Power Stages
Utilizes a capable team of power stages that efficiently supply stable current directly to the CPU VCORE.
Extended Heatsink Arrays
Massive, high-surface-area aluminum heatsinks make direct contact with the VRM components to prevent thermal throttling.
ProCool Power Connectors
Solid-pin 8-pin and 4-pin power connectors ensure flush contact and lower electrical resistance compared to hollow pins.
Digi+ VRM Control
Real-time digital voltage regulation controller automatically adjusts transient response and frequency switching parameters.
Thermal Pad Efficiency
High-conductivity thermal pads bridge the gap between MOSFETs and heatsinks for rapid heat dissipation.
Memory Performance & DDR5 Optimization
Unlocking extreme frequency headroom with OptiMem II
ASUS Enhanced Memory Profile
AEMP II profiles allow users to easily optimize generic or enthusiast memory kits beyond standard JEDEC specifications.
Isolated Trace Layout
Shielded memory pathways prevent electromagnetic interference from neighboring circuits on the white PCB.
Dual-Channel Architecture
Supports high-capacity dual-channel DDR5 configurations up to massive gigabyte ceilings for professional workloads.
PMIC Voltage Control
Unlocks Power Management IC (PMIC) restriction removal in the UEFI BIOS for advanced overclockers.
Rigorous Stability Testing
Extensive QVL validation ensures plug-and-play stability with hundreds of top-tier memory modules.
Expansion & PCIe 5.0 Infrastructure
Future-proof connectivity for next-generation GPUs and add-in cards
PCIe 5.0 x16 SafeSlot
Metal-reinforced primary slot provides superior retention force and shearing resistance for heavy modern graphics cards.
PCIe Q-Release Mechanism
Simplifies GPU removal by incorporating an easily accessible physical release button on the primary slot latch.
Multiple Expansion Lanes
Includes secondary PCIe slots for capture cards, high-speed storage controllers, or specialized audio interfaces.
Direct CPU Lanes
Direct communication lines between the primary slot and CPU ensure zero-latency data transmission.
Backwards Compatibility
Fully compatible with older PCIe 4.0, 3.0, and 2.0 expansion cards without configuration hurdles.
Storage Capabilities & M.2 Thermal Guards
Blazing fast NVMe storage arrays with dedicated cooling
Triple M.2 Slots
Supports up to three ultra-fast NVMe SSDs in various form factors for massive high-speed game libraries.
Dedicated M.2 Heatsinks
Integrated aluminum heatsinks prevent thermal throttling on high-performance Gen 4 solid-state drives.
NVMe RAID Support
Enables high-performance striping configurations for professional video editing and large data transfers.
Q-Latch M.2 Convenience
Tool-less installation latches make securing or swapping M.2 drives effortless without tiny screws.
Flexible Boot Support
Easily configure bootable drives directly within the intuitive UEFI BIOS environment.
Networking & Wireless Performance
Blazing fast 2.5Gb Ethernet and cutting-edge WiFi 6E
WiFi 6E Integration
Operates on the uncongested 6GHz frequency band to deliver gigabit-plus wireless speeds with minimal latency.
Realtek 2.5Gb LAN
High-bandwidth wired Ethernet controller accelerates local network file transfers and reduces ping in competitive titles.
ASUS LANGuard
Hardware-level network protection featuring signal-coupling technology and premium surface-mounted capacitors.
Directional Antenna Support
Includes a high-gain movable antenna base to optimize wireless signal reception across your room.
Bluetooth 5.3
Modern Bluetooth standard ensures seamless pairing with wireless headsets, controllers, and peripherals.
Audio Engineering & Aesthetic Integration
Immersive acoustic fidelity wrapped in immaculate white styling
Audio Shielding
Analog and digital signal domains are separated to drastically reduce multi-lateral interference.
Premium Audio Capacitors
High-grade Japanese audio components deliver warm, natural, and immersive sound profiles.
White PCB & Heatsinks
Coordinated white aesthetic allows for seamless matching with white chassis, cables, and liquid coolers.
Aura Sync RGB Support
Onboard addressable Gen 2 headers let you synchronize custom lighting effects across your entire rig.
User-Friendly I/O Shield
Pre-mounted I/O shield simplifies installation and ensures a clean, grounded finish at the back of the case.
✓ Pros
- ✓Gorgeous white aesthetic ideal for themed custom PC builds
- ✓Solid Intel Z790 chipset with robust 14th Gen Core support
- ✓DDR5 memory compatibility with AEMP II performance profiles
- ✓Blazing fast WiFi 6E and Realtek 2.5Gb Ethernet networking
- ✓Triple M.2 slots with convenient tool-less Q-Latch mechanisms
- ✓Reinforced PCIe 5.0 SafeSlot for heavy graphics cards
- ✓PCIe Q-Release button makes GPU removal safe and simple
- ✓Comprehensive cooling controls and fan header layout
✗ Cons
- ✗Lacks native Gen 5 M.2 storage slots for upcoming ultra-fast drives
- ✗Audio codec is standard rather than high-end audiophile grade
- ✗Limited rear USB port count compared to higher-end ROG Strix boards
- ✗White PCB styling demands matching white components to look right
Use Cases
Technical Specifications
Z790 White Motherboard Showdown
| Feature | z790AywWifiW | z790AorusEliteAxIce | proZ790AWifi |
|---|---|---|---|
| Form Factor | ATX | ATX | ATX |
| PCB Aesthetic | White PCB & Heatsinks | White PCB & Silver Heatsinks | Black PCB & Silver Heatsinks |
| Wireless | WiFi 6E | WiFi 6E | WiFi 6E |
| Wired LAN | 2.5Gb Ethernet | 2.5Gb Ethernet | 2.5Gb Ethernet |
| M.2 Slots | 3 Slots (PCIe 4.0) | 4 Slots (PCIe 4.0/5.0) | 4 Slots (PCIe 4.0) |
| PCIe 5.0 Slot | Yes (x16 SafeSlot) | Yes (x16) | Yes (x16) |
| Memory Max | 192GB DDR5 | 192GB DDR5 | 192GB DDR5 |
Setup Tips
Update the UEFI BIOS
Flash to the latest BIOS version before installing your operating system to ensure optimal microcode stability and RAM compatibility.
Enable AEMP II in BIOS
Navigate to the AI Tweaker menu in the UEFI and activate AEMP II to instantly unlock your DDR5 memory kit's rated speed and timings.
Utilize M.2 Q-Latches
Secure your NVMe SSDs using the tool-less rotatable Q-Latches rather than fiddling with tiny metal screws.
Connect the Wi-Fi Antenna First
Attach the included magnetic Wi-Fi antenna to the rear I/O before booting to ensure clean driver installation during Windows setup.
Frequently Asked Questions
Key Takeaway
The ASUS Z790-AYW WiFi W combines robust LGA 1700 performance with a striking white aesthetic tailored for modern enthusiast PC builds. Featuring DDR5 memory support, PCIe 5.0 readiness, and integrated WiFi 6E, it delivers exceptional value and style for gamers and creators alike.
